Lowell Rack-Sectional Wall Mount-16U, 19in Deep, 1PR Adj Rails, Black (LWR-1619 )

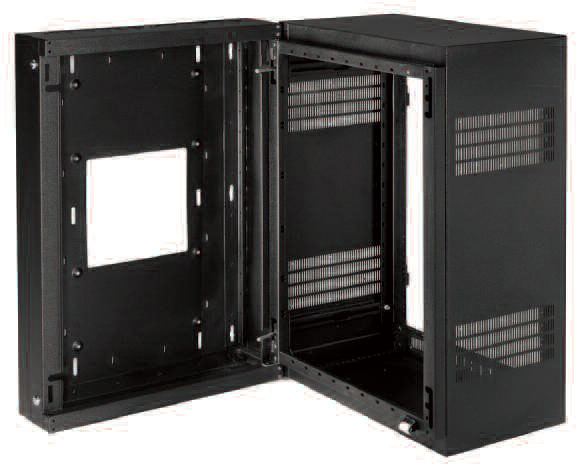

Lowell LWR-1619 LWR Series 16U x 19 Inches Deep Wall Mount Rack/Cabinet; Welded 16-Gauge Certified US Steel Backbox and Front Mounting Section; Front Section Swings Open from Its Backbox Heavy-duty sectional wall rack features a front mounting section that swings open from its backbox, allowing easy access to cables and equipment. The welded 16-gauge certified U.S. steel rack features fully gusseted corners and a triple formed (side-to-bottom, side-to-top) wrap design that mounts to the backbox with positive-locking, spring-loaded L-pins. A roller closure keeps the front closed without mandatory locking. U.S. steel with black powder epoxy finish Key Features: - Backbox: 5.80 inches deep with keyhole mounting slots on 16 inch centers, center opening to mount over electrical pull boxes, ground stud, embossed dimples on back plane for installation of board-mounted accessories, laser-cut knockout panels on top/bottom, and two keyed side locks - Front Mounting Section: Fully gusseted corners, triple formed wrap design mounts to backbox from inside with 2 heavy duty spring-loaded L-pins (self seating, positive locking) - Welded sides with vents - Beveled front corners - Knockouts for wireless antennas - 1 pair adjustable mounting rails tapped 10-32 - Integral top/bottom rails on E.I.A. spacing for mounting or lacing - Black wrinkle textured powder epoxy finish - Pilot Point screws with captive washers - Grounding stud Specifications: - Load Capacity: 200 lbs - Rack Space: 16U - Adjustable Rails: 1 pr - UL Listed: yes - Construction: welded 16-gauge certified US steel backbox and front mounting section - Finish: Black wrinkle texture powder epoxy finish - Compliance: EIA/TIA compliant. RoHS compliant. UL 2416 Listed in US and Canada - Height: 34.125 inches - Width: 23.06 inches - Depth: 19.05 inches (16 usable) - Shipping Weight: 106 lbs
