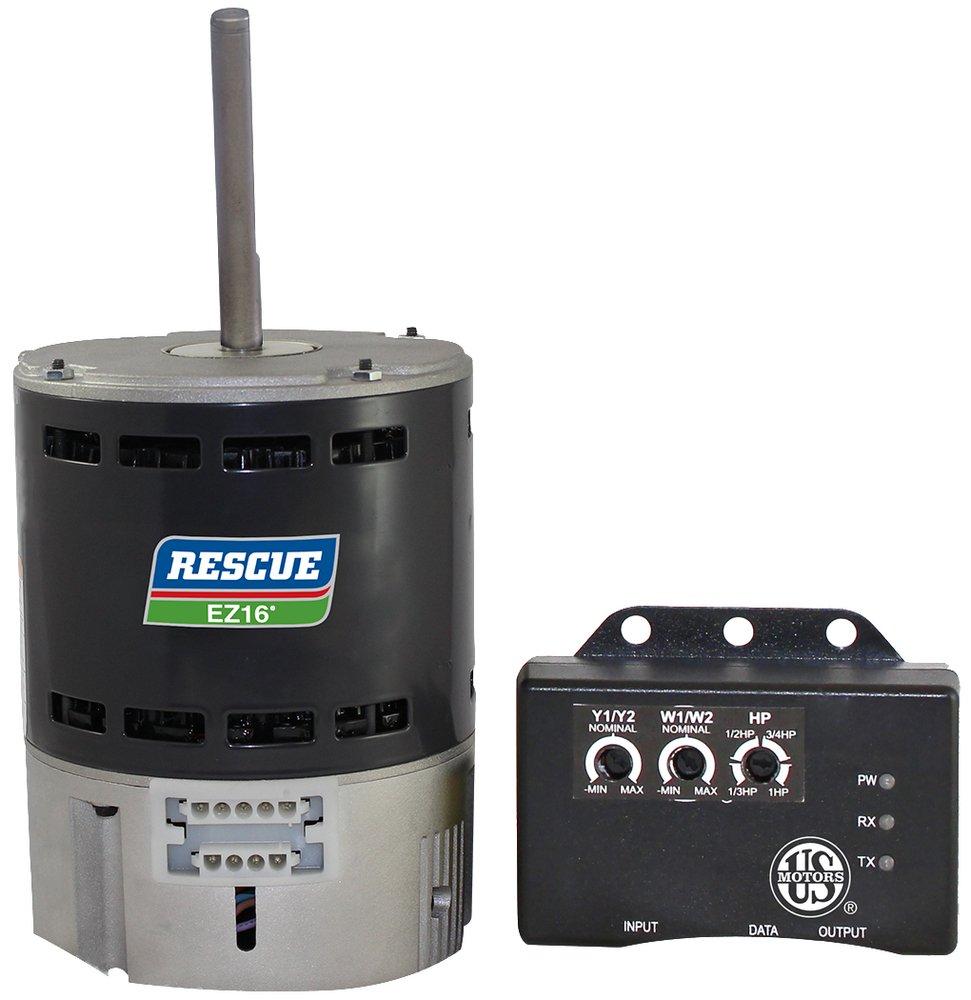

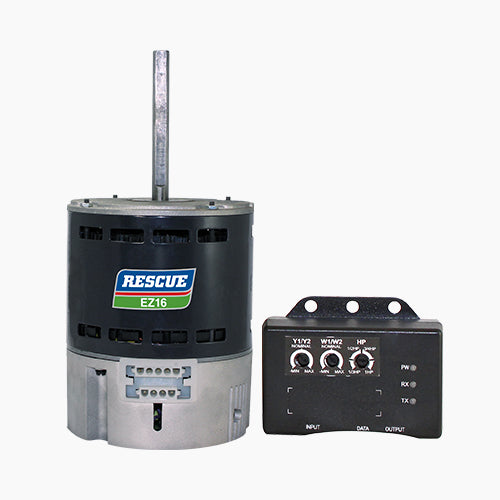

Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/2, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.4/4.0-3.8, 48Y Frame, OEM Replacement Brand Amana, Usable @ 208V Yes, Usable @ 200V No, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band

Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/2, 1/3 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 6.4/4.0-3.8, 48Y Frame, OEM Replacement Brand Amana, Usable @ 208V Yes, Usable @ 200V No, 60/50 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band

U.S. Motors . 5862

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerU.S. Motors
CategoryId, CategoryIdL310497
CategoryIdL138
CategoryIdL26482
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3Direct Drive Blower Motors
CategoryL41-Phase Blower Motors
DimensionUnitinch
GraingerSku54ZX76
UPC786382132569
UnitOfMeasureEA
Voltage115/208-230V AC
Weight12.7
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height6.7
jsonUrlData924526ffbdad25e5923b
length15.5
moq, multiple, tierMinQty1, Motor Service Factor, No of Speeds1
MPN5862
qtyInStock81
qtyInStockOverride-2
SKUG3159399
tierPrice1367.99
urlhttps://www.zoro.com/us-motors-motor-12-13-hp-1075-rpm-115208-230v-5862/i/G3159399/
width7.2
Shaft Dia1/2 in
Body Dia5.7 in
Shaft Length5 in
Length Less Shaft6 in
Overall Length11 in
DutyContinuous
Nameplate RPM1,075
OEM Replacement BrandAmana
HP1/2, 1/3
Motor Shaft RotationCW/CCW
ItemDirect Drive Blower Motor
Capacitor RequiredNo
Motor Thermal ProtectionAuto
Full Load Amps6.4/4.0-3.8
Motor BearingsBall
Max Ambient Temp40 Degrees C
StandardsCSA Certified, UL Recognized
Motor ApplicationHVAC/R
Frame48Y
Motor DesignECM
RPM Range1,101-1,200

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG315939918111 @ $367.99
uri.com5862E1-211 @ $1057.58
simsupply.comCU-35345A58373613611 @ $353.45
bakerdist.comUS5862111 @ False
ktool.net58621-211 @ $321.20
simsupply.comZO-G315939914711 @ $421.37
emotorpro.com58621-211 @ $329.56
Grainger54ZX7611
Galco5862-USM111 @ $538.97
climatedoctors.com5862 USM1311 @ $425.13
ferguson.com81038791-211 @ $606.93
Voomi Supply58621-211 @ $407.28
blackhawksupply.com58621Get a Quote1
