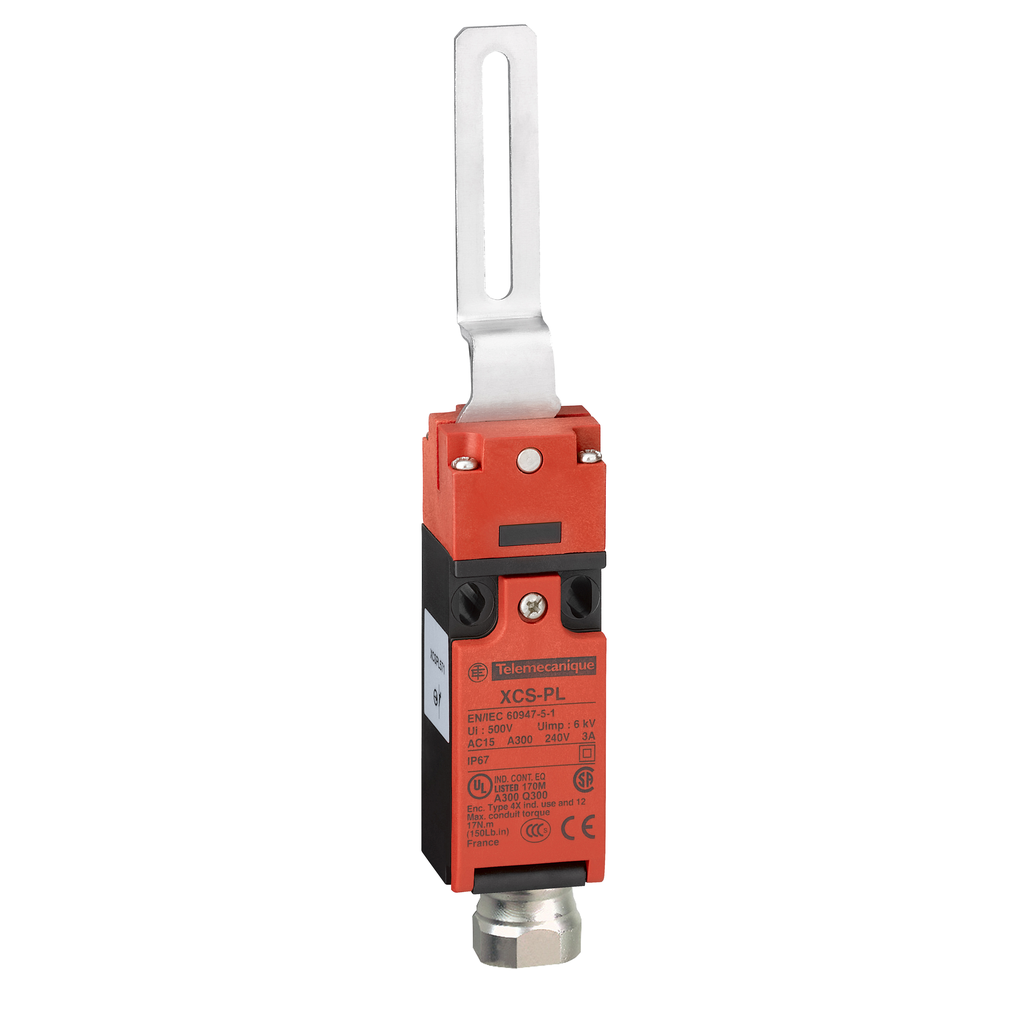

Guard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT | Mayer Electric

SQUARE D . SQDXCSPL783

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameGuard switch, Telemecanique Safety switches XCS, XCSPL, elbowed flush lever, centred, 2NC -1/2"NPT | Mayer Electric
UPC3389110866711
Weight0.095
WeightUnitkg
Weight_AttribNet Weight
depth, length, width30.0
height322.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Guard-switch-Telemecanique-Safety-switches-XCS-XCSPL-elbowed-flush-lever-centred-2NC-1-2NPT-3389110866711
jsonUrlData2900fa064-cc6d-4b20-9a30-aeea00585609
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDXCSPL783
qtyInStock0
tierPrice1159.52
width_AttribWidth
Contacts Type And Composition1 NC + 1 NC
Range Of ProductTelemecanique Safety switches XCS
Insulationdouble insulated
Cable Entry1 entry tapped 1/2" NPT
Clamping Connection Capacity1 x 0.5...2 x 1.5 mm? with or without cable end
Contact Operationslow-break
Type Of Operatorelbowed flush lever
Electrical Connectionterminal
Product Or Component Typeguard switch
Component NameXCSPL
Operator Direction Informationcentred
Materialplastic
Number Of Poles2
Head Typeturret head rotary lever
Warranty18 months
Height161-161 mm
[Ui] Rated Insulation Voltage300 VUL 508 || 300 VCSA C22.2 No 14 || 500 V 3)EN/IEC 60947-1
Short-Circuit Protection10 A cartridge fuse gG (gl)
Positive Openingwith NC contact
Positive Opening Minimum Torque0.25 N.m
Mechanical Durability1000000 cycles
[Ithe] Conventional Enclosed Thermal Current10 A
Safety Reliability DataB10d = 5000000 value given for a life time of 20 years limited by mechanical or contact wear
Enclosure Materialpolyamide PA66 fibre glass impregnated
Lever Materialstainless steel
Tripping Angle5 ?
Width, Depth30 mm
Cable Outer Diameter7-10 mm
Minimum Torque For Tripping0.1 N.m
Net Weight0.095 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN/IEC 60947-5-1
Maximum Resistance Across Terminals30 mOhm EN/IEC 60947-5-4
Circularity ProfileENVEOLI110603EN
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP110606EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach RegulationReference contains Substances of Very High Concern above the threshold
Product CertificationsCSA || UL || BG
Ambient Air Temperature For Operation-25-70 ?C
Ambient Air Temperature For Storage-40-70 ?C
StandardsEN/ISO 12100 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || EN/IEC 60204-1 || CSA C22.2 No 14 || EN 1088/ISO 14119
Electrical Shock Protection Classclass II EN/IEC 61140
Shock Resistance50 gn 11 ms IEC 60068-2-27
Vibration Resistance50 gn 10-500 Hz)IEC 60068-2-6
Protective TreatmentTH || TC
Ip Degree Of ProtectionIP67 conforming to IEC 60529

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXCSPL783111 @ $159.52
