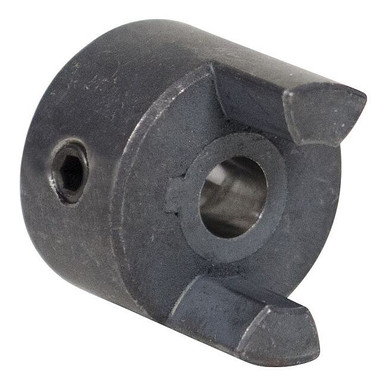

L0505/16NK L050X5/16 NO KW L-JAW HUB
L0505/16NK L050X5/16 NO KW L-JAW HUB
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | TB Woods |
|---|---|
| CategoryL1 | Shaft Couplings and Collars |
| CategoryL2 | Jaw Couplings |
| CategoryL3 | Components |
| CategoryL4 | Hub Halves |
| Extra Product Name, snippet | L0505/16NK L050X5/16 NO KW L-JAW HUB |
| moq, multiple | 16 |
| MPN | L0505/16NK |
| qtyInStock | 0 |
| SKU | 338768 |
| tierMinQty1 | 1 |
| tierPrice1 | 4.41 |
| Bore size | 5/16 |
| Keyway | No keyway |
| Product family | L-jaw hub |
| Size code | 50 |
| Dimension (in) (S) | 0.31 |
| Overall length | 1.72 |
| Dimension (in ) (OD) | 1.080 |
| Max compatible bore size | 0.625 |
| Setscrew length (in) | 1/4 |
| Hub material, Material type | Sinter carbon steel |
| Max speed, Max RPM | 18000 |
| Setscrew length, Min compatible bore size | 0.25 |
| Dimension (in) (LTB), Length-through-bore | 0.63 |
| Bore shape | Finish bore |
| Setscrew size | 1/4 20 UNC |
| Jaw type | Straight |
| Dimension (in) (HD) | NA |
| Max parallel misalignment | 0.015 |
| Dimension (in) (L) | 1.06 |
| Center | 0.47 |
| O D | 1.08 |
| Bore tolerance (in) | +0.0005 to +0.0015 |
| Bore tolerance | +.0005 to +.0015 |
| Coupling size | L050 |
| Keyseat | No keyseat |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| MRO Supply | 338768 | 16 | 16 | 1 @ $4.41 | |
| Grainger | 1A417 | 1 | 1 | ||
| AmazonSC | B071Z284VN | 1 | 1 | 1 @ $7.59 | |
| Applied Industrial | 100812756 | 1 | 1 | ||
| sustainablesupply.com | C1659937 | 1 | -2 | 1 | 1 @ $4.33 |
 Zoro | G1737355 | 1 | 269 | 1 | 1 @ $3.99 |
 simsupply.com | ZO-G1737355 | 1 | 197 | 1 | 1 @ $10.70 |
