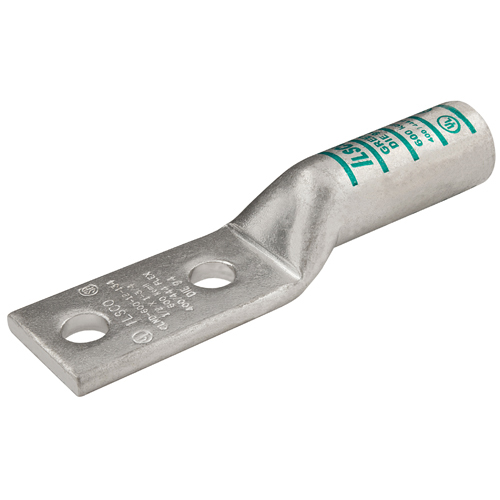

Surecrimp Copper Compression Lug, Conductor Size 600, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . CLND-600-12-134

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameSurecrimp Copper Compression Lug, Conductor Size 600, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA | Mayer Electric
UPC783669647143
Weight0.874933933774097
WeightUnitlbs
Weight_AttribWeight
height1.232
height_AttribHeight
jsonUrlData/Product/ILSCO-Surecrimp-Copper-Compression-Lug-Conductor-Size-600-2-Holes-1-2in-Bolt-Size-1-3-4in-Hole-Spacing-Long-Barrel-No-Sight-Window-Tin-Plated-UL-CSA-783669647143
jsonUrlData240310cd0-8be8-4530-b952-abb200c8ec20
length6.496
length_AttribLength
moq, multiple, tierMinQty1, Bag Quantity1
MPNCLND-600-12-134
qtyInStock0
SKUILSCLND60012134
tierPrice127.81
width, Tang Width (IN)1.712
width_AttribWidth
Height1.232 in | 31.2928 mm
Length6.496 in | 164.9984 mm
Width1.712 in | 43.4848 mm
Conductor TypeFlex, Stranded
Barrel MarkingInk
Barrel TypeLong
Connecting Angle180?
ConnectionCompression
Contains DE-OX?, Flared End, Narrow Tang, Sight Window, Slotted, Undrilled, Direct Burial, Dual RatedNo
ILSCOs Die Catalog NumberILD-94
ILSCOs Die Index NumberI-94
Mounting Hole TypeThru
Number of Mounting Holes, Height BX (IN)2
Tang End ShapeSquare
Conductor Material, MaterialCopper
Connector FinishTin
Mounting Bolt/Stud Size1/2
Temperature Rating90?C
Conductor Range CU Stranded (Primary, run, main, line)600 kcmil
Expanded Conductor Range600 kcmil - 250 kcmil
Flex Conductor Range400 G,H,I,K,M 444.4 DLO
ColorSilver
Color CodeGreen
Voltage Rating35 kV
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
NEBS RatingLevel 3
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
ROHS IndicatorIND
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
Barrel Length (IN)2.687
Barrel Length (mm)68.2498
Dimension G (IN)0.265
Dimension G (mm)6.731
Height (mm)31.2928
Inside Diameter (IN)0.92
Inside Diameter (mm)23.368
Length (mm)164.9984
Mounting Hole Diameter (IN)0.562
Mounting Hole Diameter (mm)14.2748
Mounting Hole Spacing (IN)1.75
Mounting Hole Spacing (mm)44.45
Outside Diameter (IN)1.187
Outside Diameter (mm)30.1498
Strip Length (mm)69.8246
Tang Length (IN)3
Tang Length (mm)76.2
Tang Thickness (IN)0.267
Tang Thickness (mm)6.7818
Tang Width (mm), Width (mm)43.4848
Weight BX (LB)5.5646
Width BX (IN)6.1875
Carton Quantity DescriptionSTD PACK QTY 6
NEMA CodeS-588-3
UPC Code78366964714

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSCLND60012134111 @ $27.81
