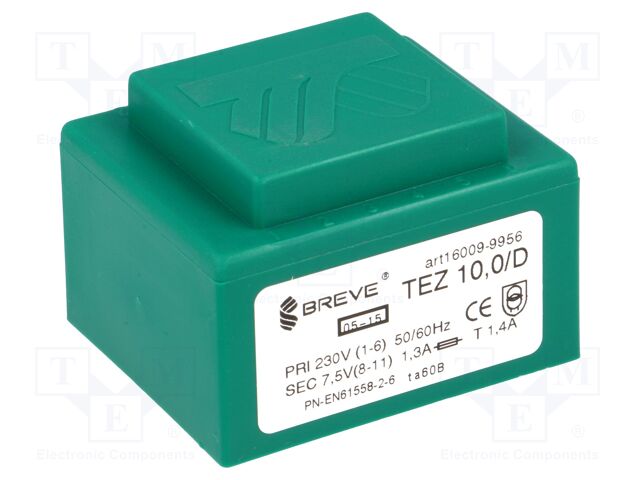

BREVE TUFVASSONS TEZ10/D230/7.5V | Transformer: encapsulated; 10VA; 230VAC; 7.5V; 1333.3mA; PCB; IP00
BREVE TUFVASSONS TEZ10/D230/7.5V | Transformer: encapsulated; 10VA; 230VAC; 7.5V; 1333.3mA; PCB; IP0
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | BREVE TUFVASSONS |
|---|---|
| CategoryL1 | Transformers and Ferrite Cores |
| CategoryL2 | PCB transformers |
| Extra Product Name | BREVE TUFVASSONS TEZ10/D230/7.5V | Transformer: encapsulated; 10VA; 230VAC; 7.5V; 1333.3mA; PCB; IP00 |
| atoms, moq, multiple | 1 |
| jsonUrlData | 8db7607a7a031364a126459ea364e5c8. |
| jsonUrlData2 | a219e66eba119acacf14 |
| keywords | BREVE TUFVASSONS, TEZ10/D230/7.5V, TEZ10/D/7.5V |
| MPN | TEZ10/D230/7.5V |
| qtyInStock | 255 |
| SKU | TEZ10/D/7.5V |
| snippet | BREVE TUFVASSONS TEZ10/D230/7.5V | Transformer: encapsulated; 10VA; 230VAC; 7.5V; 1333.3mA; PCB; IP0 |
| Type of transformer | encapsulated |
| Power | 10VA |
| Primary voltage | 230V AC |
| Secondary voltage 1 | 7.5V |
| Secondary winding current 1 | 1333.3mA |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN EN 61558-1:2000 |
| Thermal class | Ta40B |
| Secondary winding terminals | 8-11 |
| Primary winding terminals | 1-6 |
| A dimension | 44mm |
| A1 dimension | 27.5mm |
| A2 dimension | 25mm |
| B dimension | 52mm |
| C dimension | 35mm |
| Manufacturer series | TEZ |
| Electrical insulation strength | 4kV/60s |
