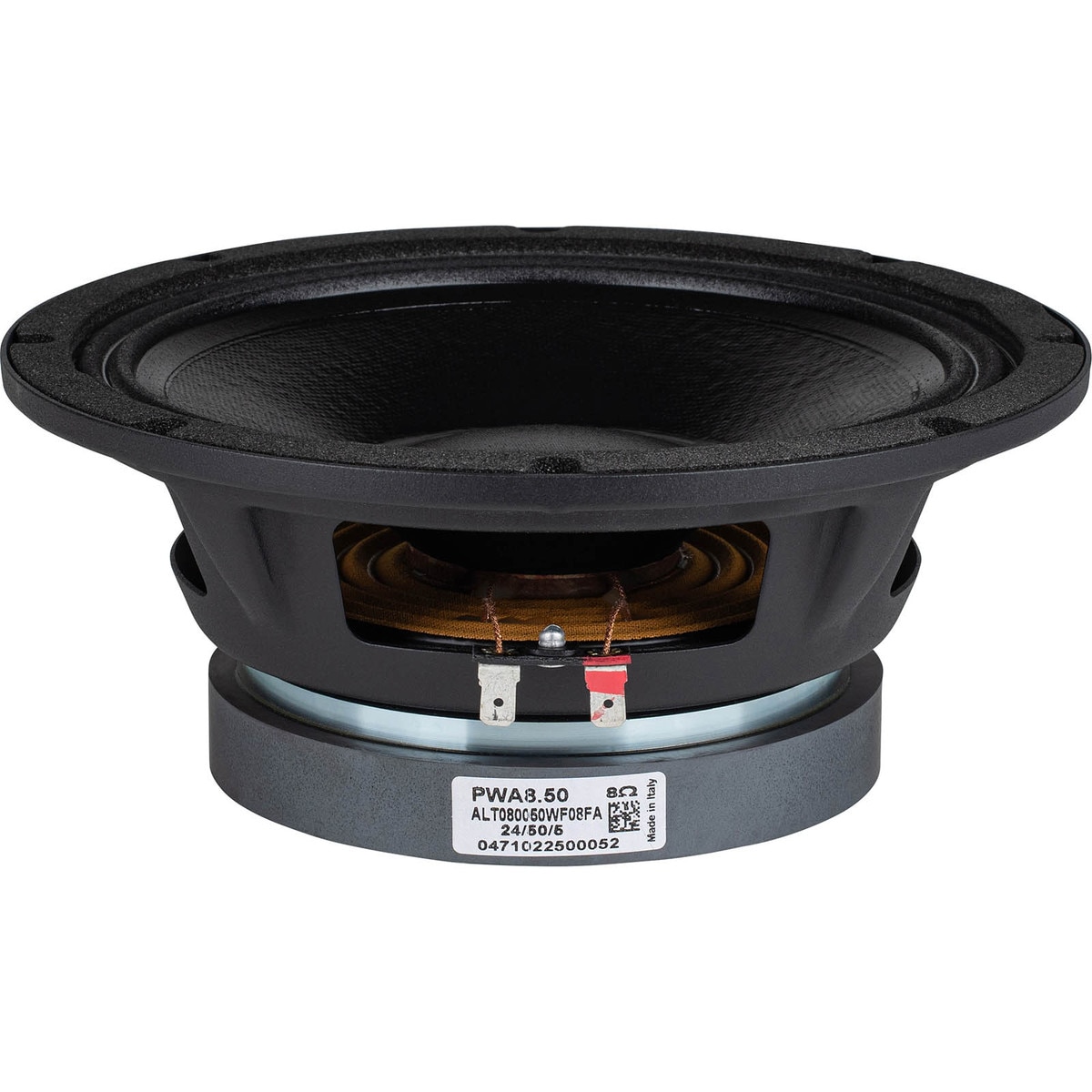

Ciare PWA8.50 8" Woofer 8 Ohm

Ciare . PWA8.50

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandCiare
DimensionUnitinch
Extra Product NameCiare PWA8.50 8" Woofer 8 Ohm
UPC848864075525
Weight7
WeightUnitlbs
depth, length3.78
diameter, height, width8.0
height_Attrib, width_AttribNominal Diameter
length_AttribDepth
moq, multiple1
MPN, ModelPWA8.50
qtyInStock-2
qtySourceFieldMap
SKU, Part Number293-180
Unit of MeasureEach
Nominal Diameter8"
Bolt Circle Diameter7.83
Power Handling (RMS)250 Watts
Power Handling (MAX)500 Watts
Impedance8?
Frequency Response70 to 2,500Hz
Sensitivity95dB 2.83V/1m
Voice Coil Diameter2"
Resonant Frequency (Fs)74Hz
DC Resistance (Re)5?
Voice Coil Inductance (Le)0.82mH
Mechanical Q (Qms)5.5
Electromagnetic Q (Qes)0.41
Total Q (Qts)0.38
Compliance Equivalent Volume (Vas)0.42ft?
BL Product (BL)12.7T?m
Diaphragm Mass Inc Airload (Mms)28g
Maximum Linear Excursion (Xmax)6.8mm
Surface Area of Cone (Sd)227cm?
Cone MaterialPaper-Treated Paper
Surround MaterialCloth
Voice Coil Wire MaterialCopper
Voice Coil FormerFiberglass
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter7.87"
Baffle Cutout Diameter7.32"
Depth3.78"
# Mounting Holes8
Sealed Volume0.0971ft?
Sealed F3165Hz
Vented Volume0.274ft?
Vented F389.54Hz
