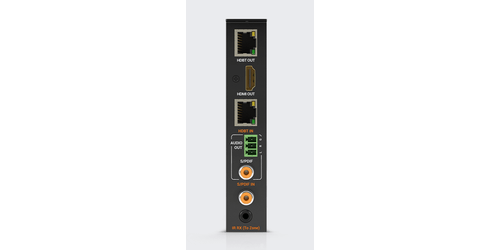

WyreStorm TX-H2X-OM3 HDBaseT Input and Output Card, 4K Signals 230 Feet - Conference Room AV
Shop for WyreStorm TX-H2X-OM3 HDBaseT Input and Output Card, 4K Signals 230 Feet and other Matrix Switchers with the best prices, free shipping and customer reviews from ConferenceRoomAV.com
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | WYRESTORM |
|---|---|
| KnownMan, Extra Product Name | WyreStorm TX-H2X-OM3 HDBaseT Input and Output Card, 4K Signals 230 Feet - Conference Room AV |
| moq, multiple, tierMinQty1 | 1 |
| MPN, SKU | TX-H2X-OM3 |
| qtyInStock | 0 |
| snippet | Shop for WyreStorm TX-H2X-OM3 HDBaseT Input and Output Card, 4K Signals 230 Feet and other Matrix Switchers with the best prices, free shipping and customer reviews from ConferenceRoomAV.com |
| tierPrice1 | 1133.00 |
| Inputs | 1x HDMI In19-pin type A / 1x S/PDIF In Coaxial Digital / 1x HDBaseT 8-pin RJ-45 female |
| Outputs | 1x HDBaseT 8-pin RJ-45 female / 1x S/PDIF Out Coaxial Digital / 1x Audio Out 3pin Phoenix Connector |
| Encoding Data Rate | 9.2Gbps |
| End to End Latency: 10 s (micro seconds) Audio Formats: 2ch PCM | Multichannel | LPCM and Up to DTS-X and Dolby Atmos |
| Video Resolutions (Max) Video Resolutions: 4096x2160p @60Hz 8bit 4:4 | 4 |
| Maximum Pixel Clock: HDMI: 600mHz | HDBaseT | 297MHz |
| HDMI | HDCP 2.2 | DVI-D supported with adapter (not included) |
| HDBaseT | HDMI | HDCP 2.2 | 1-way PoH to Receiver | IR RX to Receiver |
| IR | 1x IR RX 3.5mm (1/8in) TRS Stereo | To Receiver over HDBaseT |
| RS-232 | Matrix Control | Bidirectional over HDBaseT | Firmware Updates |
| Ethernet | From Matrix - No Connection on card | Bidirectional over HDBaseT |
| ARC (Audio Return Channel) | Returns audio from displays built-in applications via ARC HDMI Input over HDBaseT (Requires ARC or SCL Receiver) |
| Power Supply | Internal to Matrix |
| Max Power Consumption, Regulatory Safety and Emission | Matrix Dependent |
| PoH | 48V 15.4W |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TX-H2X-OM3 | 1 | 1 | 1 @ $1133.00 | ||
| avalive.com | 304159 | 1 | -2 | 1 | 1 @ $915.00 |
| exertisalmo.com | TX-H2X-OM3 | 1 | 1 |
