Hayward
Check Valve Pvc 2-1/2 Inch Skt | 5AAT5 | Worldwide Delivery | +44 203 287 5224 | [email protected]
Gallery
Attributes
| Brand name, Manufacturer name, Extra Product Name | Hayward |
|---|---|
| Manufacturer | Hayward Hayward - Distribution Hayward Industries, Inc. |
| DimensionUnit | inch |
| GraingerSku | 5AAT5 |
| UPC | 610377166522 |
| UnitOfMeasure | EA |
| Weight | 9.69 0.000625 0.25 1 9.6 9.65 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_included, Batteries_required, Memorabilia, TradeInEligible | False |
| countryOfOrigin | US |
| extendedLead | 10 |
| extendedQty | -2 |
| height | 12.2 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 11.3 |
| moq, multiple, tierMinQty1, Case, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity | 1 |
| MPN, Part Number, Model, CatalogNumberList, ModelNumber, Model_number, Mpns, PartNumber, Part_number, Sku, StrippedMpns | TC1250SE |
| qtyInStock | 0 |
| qtyInStockOverride | Drop Ship |
| SKU | G0281321 |
| tierPrice1 | 226.00 |
| url | https://www.zoro.com/hayward-check-valve-true-union-ball-2-12-pvcepdm-socket-tc1250se/i/G0281321/ |
| width | 7.5 |
| Product Group | BISS |
| Pipe Size | 2 1/2" |
| Connection Type | socket |
| Body Material, Sub-Category, Body Material - Valves, Material of Construction | PVC |
| Size | 2 1/2" 2-1/2" 2-1/2-Inch 2.5 Inch |
| Max Steam Pressure - Valves | Not Rated |
| Max Temp, Max Temp - Valves | 140 Degrees F |
| Seat Material - Check Valves, Seal Material - Check Valves, Seal Material, Seat Material | EPDM |
| Max Pressure, Max Water Pressure - Valves | 150 psi @ 70 Degrees F |
| Mechanism and Body Design | Inline True Union |
| Flow Design | Single |
| Overall Height | 6 9/16 in |
| Mounting Orientation - Check Valves, Mounting Orientation | Vertical |
| Application - Valves | General Purpose, Pumps |
| Item - Check Valves, Item | Check Valve |
| Mounting Position | Vertical (Flow Up) |
| Standards | NSF 61 |
| Length | 10 11/16 in 1 1.0 12.099999987657998 12.099999987657999212598426 12.199999987556 18.541999999999998 30.733999999999998 |
| Min Temp - Valves | 40 Degrees F |
| Cracking Pressure - Check Valves | 3.0 psi |
| Cracking Pressure | 3 psi |
| Full Flow - Valves | Yes |
| Connection Type - Check Valves | Socket x Socket |
| Flow - Valves, Flow | 100 gpm |
| Width | 6 9/16 in 1 1.0 11.299999988474 2560 28.702 500 75 |
| Pipe or Tube Size - Check Valves, Pipe or Tube Size | 2 1/2 in |
| Length (Straight Wireway) | 10 11/16 in |
| Country of Origin (subject to change) | United States |
| ASIN, Asin | B009D80U5A B00CG4H6WI |
| Amount, List_price | 276.77 |
| Binding | Lawn & Patio Misc. |
| Brand | Hayward Hayward Flow Control |
| Bullet_point | Cracking pressure of 1.5 psi EPDM O-rings for use with water, steam, dilute acids and alkalis, and alcohols Made of heavy wall plastic material PVC body and ball check for resistance to corrosion and less weight than metal Pipe measures 2-1/2-inch socket end connection Rated for 150 psi at 70 degrees F under non-shock conditions Socket connections for connecting with plain male pipe ends TC Series true union check valves with EPDM seals True union check valves prevent backflow; meets ASTM and NSF standards True union design allows easy removal from system without breaking down piping connections |
| Cat | Industrial & Scientific |
| CatId | 16310091 |
| CatTree | 16310091 16310161 3021479011 383615011 |
| ClassificationId | 1265146011 1273005011 |
| Connector_type | Socket |
| Currency, CurrencyCode | USD |
| DisplayName | Check Valves Pool Filter Valves |
| Exterior_finish | Plastic Pvc,Plain,Metal |
| Feature | PVC body and ball check for resistance to corrosion and less weight than metal |
| Height | 1 1.0 1534 1586 1737 18.288 1985 30.988 300 310 339 388 45 47 51 58 7.199999992656 7.299999992553999212598426 7.299999992554 |
| Identifier | 00610377166522 0610377166522 610377166522 |
| IdentifierType | EAN GTIN UPC |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name, Title | Hayward TC1250SE 2-1/2-Inch PVC TC Series True Union Check Valve with EPDM Seals and Socket End Connection Hayward TC1250SE Series TC True Union Ball Check Valve, Socket End, PVC with EPDM Seals, 2-1/2" Size |
| Item_display_weight, Unit_count | 1.0 |
| Item_package_weight | 9.6 9.65 |
| Item_type_keyword | industrial-check-valves swimming-pool-filter-valves |
| Item_weight | 0.25 1.0 |
| Keyword | PVC TC1250SE |
| Label, Publisher, Studio | Hayward - Distribution Hayward Industries, Inc. |
| Link | https://m.media-amazon.com/images/I/31H-RErpSPL._SL75_.jpg https://m.media-amazon.com/images/I/31H-RErpSPL.jpg https://m.media-amazon.com/images/I/41RonKIcFhL._SL75_.jpg https://m.media-amazon.com/images/I/41RonKIcFhL.jpg https://m.media-amazon.com/images/I/41g8bgpPVuL._SL75_.jpg https://m.media-amazon.com/images/I/41g8bgpPVuL.jpg https://m.media-amazon.com/images/I/41iDmbg02kL._SL75_.jpg https://m.media-amazon.com/images/I/41iDmbg02kL.jpg https://m.media-amazon.com/images/I/71tyG12an0L.jpg https://m.media-amazon.com/images/I/81R7IgxmVvL.jpg https://m.media-amazon.com/images/I/81XxcDtdj+L.jpg https://m.media-amazon.com/images/I/81u+TFLMrbL.jpg |
| Man | Hayward Industries, Inc. |
| Material | Plastic Polyvinyl Chloride |
| MaterialType | PVC PVC (Polyvinyl Chloride) Plastic Polyvinyl Chloride |
| ProductCategoryId | 1265146011 1273005011 biss_display_on_website home_garden_display_on_website lawn_and_garden_display_on_website |
| ProductGroup | BISS BISS Basic Lawn & Patio |
| ProductType | HOSE_PIPE_FITTING VALVE |
| ProductTypeName | MECHANICAL_COMPONENTS OUTDOOR_LIVING VALVE |
| Product_description | Designed to help prevent the reversal of flow in piping systems where backflow could cause damage to filters, pumps, or process equipment. This HAYWARD check valve operates without the need for any adjustments or settings, and features an innovative square-cut elastomer seat to seal at low back pressures. The true union design eases valve removal from piping systems without having to break down the pipe connections. This listing is for each. BALL CHECK, TRUE UNION TYPE; 2-1/2 INCH NOMINAL SIZE; 2.5 NOMINAL SIZE - DECIMAL; 2-1/2 NOMINAL SIZE - FRACTIONAL; CSA, NSF APPLICABLE STANDARD; CHEMICAL PROCESSING, DWV PIPING, INDUSTRIAL, IRRIGATION SYSTEM, INERT TO MINERAL ACIDS, BASES, PARAFFINIC HYDROCARBON SOLUTIONS, NOT RECOMMENDED FOR USE WITH CHLORINATED OR AROMATIC HYDROCARBONS, ESTERS, KETONES, SALTS, WATER APPLICATION; 63.5 NOMINAL SIZE IN MM; MAXIMUM 140 DEG F TEMPERATURE RATING; CORROSION RESISTANT, SQUARE CUT O-RING SEAT INCLUSIONS/FEATURES; ASTM D1784 PVC BODY MATERIAL; 150 PSI NON SHOCK AT 70 DEG F PRESSURE RATING; 2-1/2 INCH SOCKET WELD X 2-1/2 INCH SOCKET WELD END CONNECTION; EPDM O-RING SEAL MATERIAL; 10.56 INCH END TO END DISTANCE; WEIGHT 11 LB; WARRANTY 1 YEAR FROM THE DATE OF SHIPMENT; TEMPERATURE RATING 300 DEG F EPDM O-RING SEAL; ASSEMBLED WITH WATER SOLUBLE AND SILICONE FREE LUBRICANT; NOMINAL SIZE - DECIMAL - UOM IN; NOMINAL SIZE IN MM - UOM MM; TC1250SE MODEL |
| Product_site_launch_date | 2012-02-13T20:53:32.583Z 2013-04-05T00:00:01-00:00 |
| Rank | 1122387 1124565 1739540 2816 3118959 558 577 594 6610140 7345097 |
| Specification_met | NSF |
| String_value | 10-11/16 |
| Style | Socket Weld |
| Supplier_declared_dg_hz_regulation | unknown |
| Type | Count Each ean gtin upc |
| URL | http://ecx.images-amazon.com/images/I/41RonKIcFhL._SL75_.jpg http://ecx.images-amazon.com/images/I/41g8bgpPVuL._SL75_.jpg https://m.media-amazon.com/images/I/41RonKIcFhL._SL75_.jpg https://m.media-amazon.com/images/I/41g8bgpPVuL._SL75_.jpg |
| Unit | centimeters inches pounds |
| Units | inches pixels pounds |
| Variant | MAIN PT01 |
| WebsiteDisplayGroup | biss_basic_display_on_website lawn_and_garden_display_on_website |
| WebsiteDisplayGroupName | BISS Basic Lawn & Patio |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G0281321 | 1 | 1 | 1 @ $226.00 | |
| Grainger | 5AAT5 | 1 | 1 | ||
| AE2ZGL | 1 | 1 | 1 @ $413.58 | ||
| sustainablesupply.com | C1949960 | 1 | Add to Cart | 1 | 1 @ $330.87 |
 blackhawksupply.com | TC1250SE | 1 | -2 | 1 | 1 @ $372.20 |
| getpoolparts.com | TC1250SE | 1 | 1 | 1 @ $574.67 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

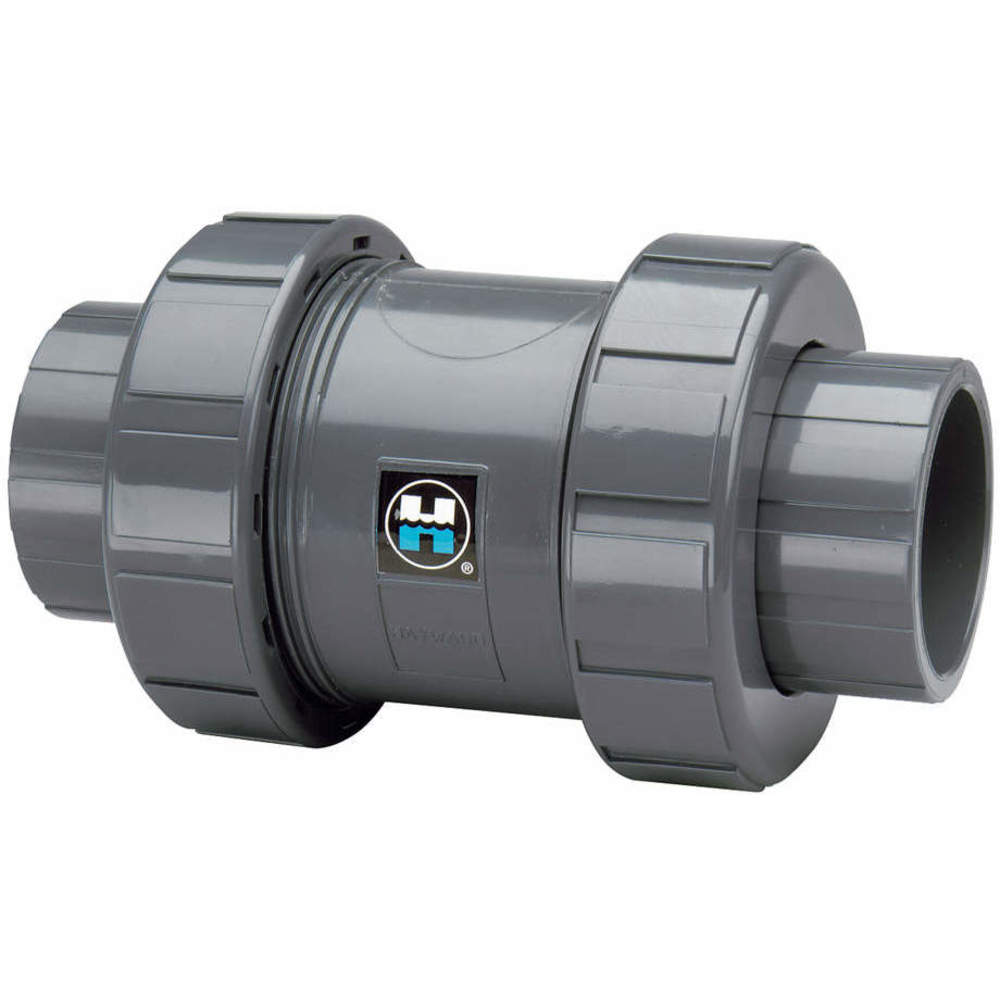

Hayward TC1250SE Series TC True Union Ball Check Valve, Socket End, PVC with EPDM Seals, 2-1/2" Size
Brand: Hayward
Designed to help prevent the reversal of flow in piping systems where backflow could cause damage to filters, pumps, or process equipment. This HAYWARD check valve operates without the need for any adjustments or settings, and features an innovative square-cut elastomer seat to seal at low back pressures. The true union design eases valve removal from piping systems without having to break down the pipe connections. This listing is for each. BALL CHECK, TRUE UNION TYPE; 2-1/2 INCH NOMINAL SIZE; 2.5 NOMINAL SIZE - DECIMAL; 2-1/2 NOMINAL SIZE - FRACTIONAL; CSA, NSF APPLICABLE STANDARD; CHEMICAL PROCESSING, DWV PIPING, INDUSTRIAL, IRRIGATION SYSTEM, INERT TO MINERAL ACIDS, BASES, PARAFFINIC HYDROCARBON SOLUTIONS, NOT RECOMMENDED FOR USE WITH CHLORINATED OR AROMATIC HYDROCARBONS, ESTERS, KETONES, SALTS, WATER APPLICATION; 63.5 NOMINAL SIZE IN MM; MAXIMUM 140 DEG F TEMPERATURE RATING; CORROSION RESISTANT, SQUARE CUT O-RING SEAT INCLUSIONS/FEATURES; ASTM D1784 PVC BODY MATERIAL; 150 PSI NON SHOCK AT 70 DEG F PRESSURE RATING; 2-1/2 INCH SOCKET WELD X 2-1/2 INCH SOCKET WELD END CONNECTION; EPDM O-RING SEAL MATERIAL; 10.56 INCH END TO END DISTANCE; WEIGHT 11 LB; WARRANTY 1 YEAR FROM THE DATE OF SHIPMENT; TEMPERATURE RATING 300 DEG F EPDM O-RING SEAL; ASSEMBLED WITH WATER SOLUBLE AND SILICONE FREE LUBRICANT; NOMINAL SIZE - DECIMAL - UOM IN; NOMINAL SIZE IN MM - UOM MM; TC1250SE MODEL
Details
- PVC body and ball check for resistance to corrosion and less weight than metal
- EPDM O-rings for use with water, steam, dilute acids and alkalis, and alcohols
- Rated for 150 psi at 70 degrees F under non-shock conditions
- Cracking pressure of 1.5 psi
- Socket connections for connecting with plain male pipe ends
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS |
| Product type | MECHANICAL_COMPONENTS |
| Model | TC1250SE |
| Part number | TC1250SE |
| Items per pack | 1 |
| Label | Hayward Industries, Inc. |
| Manufacturer | Hayward Industries, Inc. |
Catalog
| Feature | PVC body and ball check for resistance to corrosion and less weight than metal |
|---|---|
| Category | Industrial & Scientific |
| MPN | TC1250SE |
| Product group | BISS |
| Product type | MECHANICAL_COMPONENTS |
| Manufacturer | Hayward Industries, Inc. |
Hayward TC1250SE 2-1/2-Inch PVC TC Series True Union Check Valve with EPDM Seals and Socket End Connection
Brand: Hayward
Details
- TC Series true union check valves with EPDM seals
- Made of heavy wall plastic material
- True union check valves prevent backflow; meets ASTM and NSF standards
- True union design allows easy removal from system without breaking down piping connections
- Pipe measures 2-1/2-inch socket end connection
Listing
| Binding | Lawn & Patio |
|---|---|
| Product group | Lawn & Patio |
| Product type | OUTDOOR_LIVING |
| Model | TC1250SE |
| Part number | TC1250SE |
| Label | Hayward - Distribution |
| Manufacturer | Hayward - Distribution |
