Mini Ball Valve, Body Material Brass, Body Style Inline, 1-Piece, Pipe Size 1/8 in, Connection Type MNPT x MNPT, Standard Port, Max. Pressure 300 psi CWP, Temp. Range -40 Degrees to 400 Degrees F, Ball Material 316 Stainless Steel, Seat Material PTFE, Stem Type Blowout Proof, Handle Type Toggle, Handle Material Nylon, Stem Material 316 Stainless Steel, Body Seal Material FKM

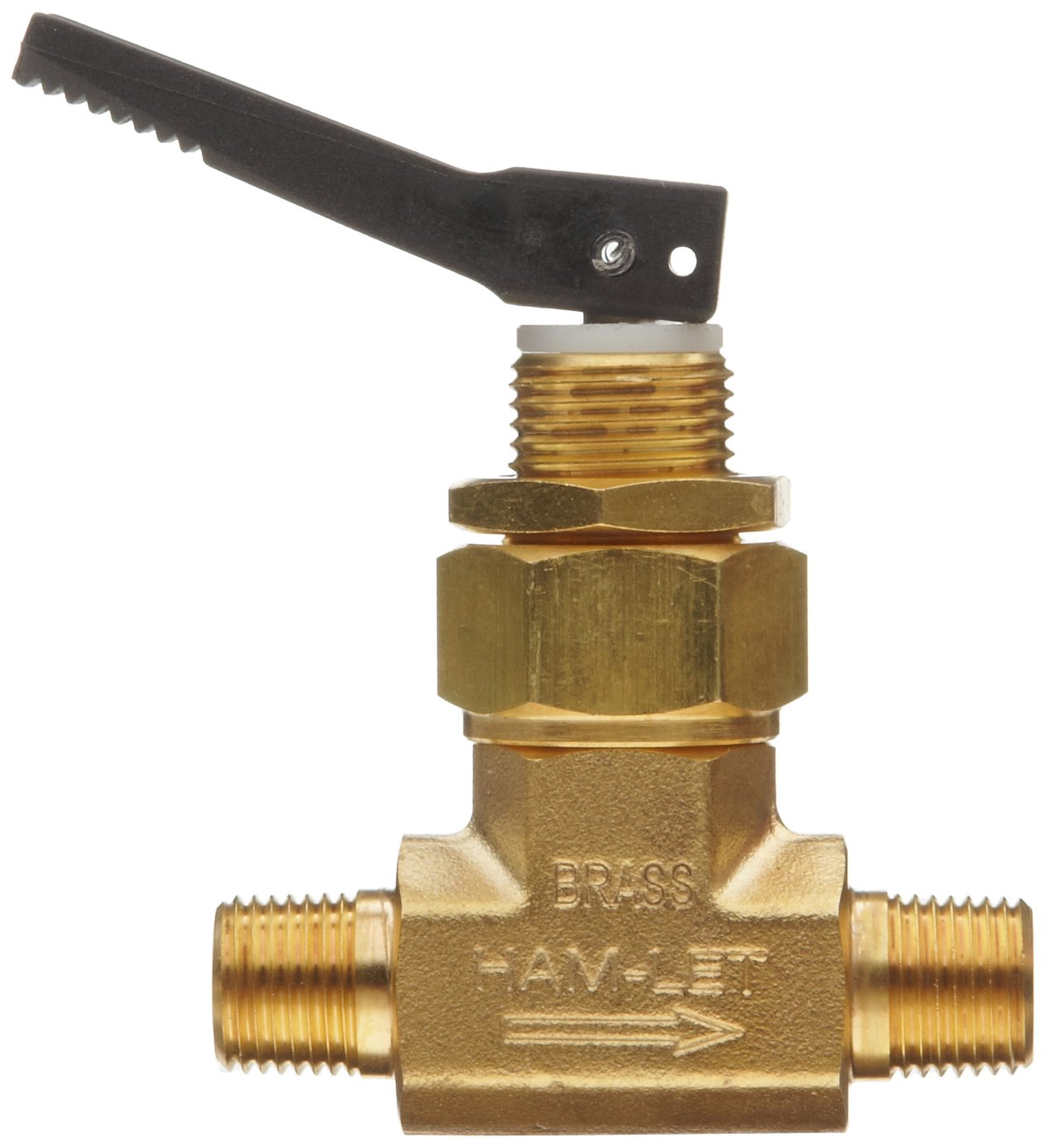

The Hamlet H-1280-B-N-1/8 is a compact and rugged brass toggle valve with a panel mountable design. It features a quick on/off service and is constructed of brass. The valve is available in 1/8" NPT male configuration. It has a maximum allowable working pressure (MAWP) of 300 psig at 20°C (70°F), making it suitable for various industrial applications.

Mini Ball Valve, Body Material Brass, Body Style Inline, 1-Piece, Pipe Size 1/8 in, Connection Type MNPT x MNPT, Standard Port, Max. Pressure 300 psi CWP, Temp. Range -40 Degrees to 400 Degrees F, Ball Material 316 Stainless Steel, Seat Material PTFE, Stem Type Blowout Proof, Handle Type Toggle, Handle Material Nylon, Stem Material 316 Stainless Steel, Body Seal Material FKM

Ham-Let . H-1280-B-N-1/8

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerHam-Let
CategoryId, CategoryIdL35796
CategoryIdL133
CategoryIdL24629
CategoryL1Plumbing
CategoryL2Pipes, Valves & Fittings
CategoryL3Valves
CategoryL4Ball Valves
DimensionUnitinch
GTIN, UPCNone
GraingerSku3ZVX1
UnitOfMeasureEA
Weight0.35
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginIL
height4.5
jsonUrlData924526ffbdad25e5923b
length, width4.3
moq, multiple, tierMinQty1, Package Quantity1
MPNH-1280-B-N-1/8
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG2943281
tierPrice186.95
urlhttps://www.zoro.com/ham-let-18-mnpt-brass-mini-ball-valve-inline-h-1280-b-n-18/i/G2943281/
Pipe Size, Size1/8"
Body Material, Ball Valve Basic Body MaterialBrass
Body StyleInline
StandardsASME, ASTM, CE, MIL-F-18866, SAE
Handle MaterialNylon
Handle TypeToggle
Valve Structure1-Piece
Max Pressure300 psi CWP
Seat MaterialPTFE
Connection TypeMNPT x MNPT
Body Seal MaterialFKM
Stem Material, Ball Material316 stainless steel
FeaturesQuick On Off Service
Stem TypeBlowout Proof
Item, Product TypeMini Ball Valve
PortStandard
Temp Range-40 Degrees to 400 Degrees F
Ball Valve Product GroupManual
General Connection TypeMale NPT

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2943281111 @ $86.95
Raptor SuppliesAD3KPG111 @ $199.16
AmazonB006GWP9AM11
GalcoH-1280-B-N-1/8-HMLT5551 @ $86.74
