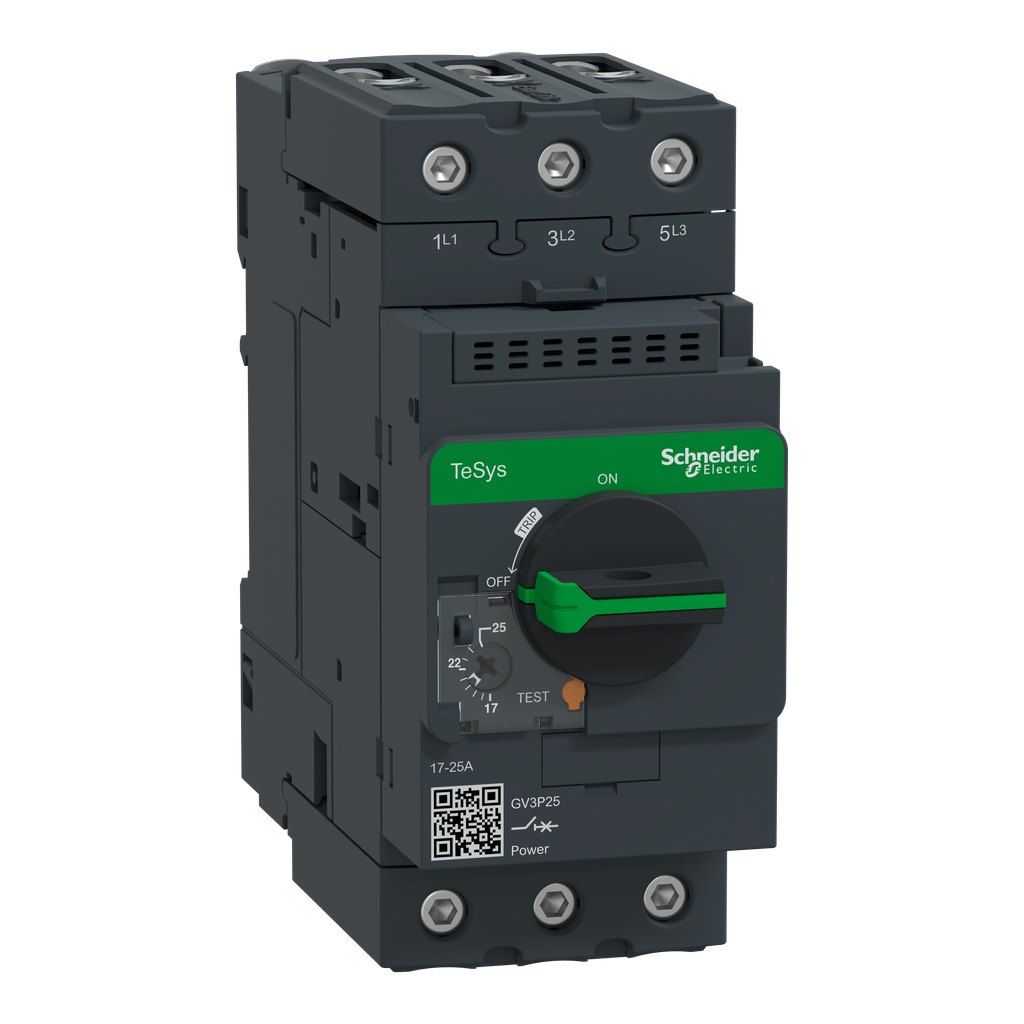

TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, rotary knob, 17?25 A, EverLink BTR connectors | Mayer Electric

Mayer Electric Supply . GV3P25

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameTeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, rotary knob, 17?25 A, EverLink BTR connectors | Mayer Electric
UPC3389119405379
Weight0.96
WeightUnitkg
Weight_AttribNet Weight
depth, length136.0
height132.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-TeSys-GV3-Manual-Starter-and-Protector-thermal-magnetic-circuit-protector-rotary-knob-1725-A-EverLink-BTR-connectors-785901492320
jsonUrlData2cd49c1e3-6771-45b2-9c92-abb200c9d182
length_AttribDepth
moq, multiple, tierMinQty11
MPNGV3P25
qtyInStock0
SKUSQDGV3P25
tierPrice1446.71
width55.0
width_AttribWidth
Range Of ProductTeSys GV3
Product Or Component Typemotor circuit breaker
Product NameTeSys GV3 || TeSys Deca
RangeTeSys Deca
Device Applicationmotor protection
Device Short NameGV3P
Trip Unit Technologythermal-magnetic
Warranty18 months
Mechanical Robustnessshocks 15 Gn for 11 ms closed IEC 60068-2-27 || shocks 30 Gn for 11 ms opened IEC 60068-2-27 || vibrations 4 Gn, 5...300 Hz IEC 60068-2-6
Line Rated Current25 A
[Ue] Rated Operational Voltage, [Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Height132 mm
Phase Failure Sensitivityyes IEC 60947-4-1
Rated Dutycontinuous IEC 60947-4-1
Network TypeAC
Magnetic Tripping Current350-350 A
[Ith] Conventional Free Air Thermal Current25 A IEC 60947-4-1
Motor Power Kw18.5-18.5 kW 690 V AC 50/60 Hz || 11-11 kW 400/415 V AC 50/60 Hz || 15-15 kW 500 V AC 50/60 Hz
Maximum Operating Rate25 cyc/h
Operating Positionany position
Utilisation CategoryAC-3 IEC 60947-4-1
Net Weight0.96 kg
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Fixing Mode35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)
[Ics] Rated Service Short-Circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 100 % 440 V AC 50/60 Hz IEC 60947-2 || 100 % 400/415 V AC 50/60 Hz IEC 60947-2 || 50 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 690 V AC 50/60 Hz IEC 60947-2
Control Typerotary handle
Power Dissipation Per Pole8 W
Electrical Durability50000 cycles AC-3 415 V In
Suitability For Isolationyes IEC 60947-1
Trip Unit Rating17-25 A
Tightening Torque5 N.m EverLink BTR screw connectors 25-25 mm? || 8 N.m EverLink BTR screw connectors 35-35 mm?
Mechanical Durability50000 cycles
Poles Description3P
Colordark grey
Width55 mm
Depth136 mm
Network Frequency50/60 Hz IEC 60947-4-1
Rohs Exemption Information, Mercury FreeYes
Environmental Disclosure, Circularity ProfileENVPEP060901EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Eu Rohs DirectiveCompliant
Product CertificationsCCC || EAC || BV || LROS (Lloyds register of shipping) || DNV-GL || ABS || UL || CSA || UKCA || ATEX
Ik Degree Of ProtectionIK09 enclosure
Ambient Air Temperature For Operation-20-60 ?C
StandardsEN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
Climatic WithstandIACS E10
Ambient Air Temperature For Storage-40-80 ?C
Ip Degree Of ProtectionIP20 IEC 60529
Operating Altitude9842.52 ft (3000 m)
Fire Resistance960 ?C IEC 60695-2-11

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDGV3P25111 @ $446.71
