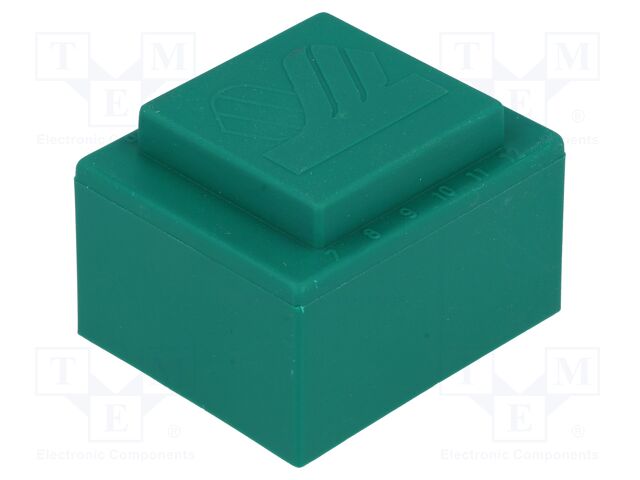

BREVE TUFVASSONS TEZ10/D230/24-24V | Transformer: encapsulated; 10VA; 230VAC; 24V; 24V; 208.3mA; 208.3mA
BREVE TUFVASSONS TEZ10/D230/24-24V | Transformer: encapsulated; 10VA; 230VAC; 24V; 24V; 208.3mA; 208.3m
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | BREVE TUFVASSONS |
|---|---|
| CategoryL1 | Transformers and Ferrite Cores |
| CategoryL2 | PCB transformers |
| Extra Product Name | BREVE TUFVASSONS TEZ10/D230/24-24V | Transformer: encapsulated; 10VA; 230VAC; 24V; 24V; 208.3mA; 208.3mA |
| atoms, moq, multiple | 1 |
| jsonUrlData | a8f7c5d0660143f2b9bc9d6e41df9a47. |
| jsonUrlData2 | def585f07b512b207c83 |
| keywords | BREVE TUFVASSONS, TEZ10/D230/24-24V, TEZ10/D/24-24V, Transformers and Ferrite Cores, PCB transformers |
| MPN | TEZ10/D230/24-24V |
| qtyInStock | 114 |
| SKU | TEZ10/D/24-24V |
| snippet | BREVE TUFVASSONS TEZ10/D230/24-24V | Transformer: encapsulated; 10VA; 230VAC; 24V; 24V; 208.3mA; 208.3m |
| Type of transformer | encapsulated |
| Power | 10VA |
| Primary voltage | 230V AC |
| Secondary voltage 1, Secondary voltage 2 | 24V |
| Secondary winding current 1, Secondary winding current 2 | 208.3mA |
| Mounting | PCB |
| IP rating | IP00 |
| Conform to the norm | PN EN 61558-1:2000 |
| Thermal class | Ta40B |
| Secondary winding terminals | 7-8, 11-12 |
| Primary winding terminals | 1-6 |
| A dimension | 44mm |
| A1 dimension | 27.5mm |
| A2 dimension | 25mm |
| B dimension | 52mm |
| C dimension | 35mm |
| Manufacturer series | TEZ |
| Electrical insulation strength | 4kV/60s |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TEZ10/D/24-24V | 1 | 114 | 1 |
