Grundfos 96080894 CR 1S-11 A-B-A-E-HQQE 3PH 0.75HP TEFC 60H - MROSupply.com

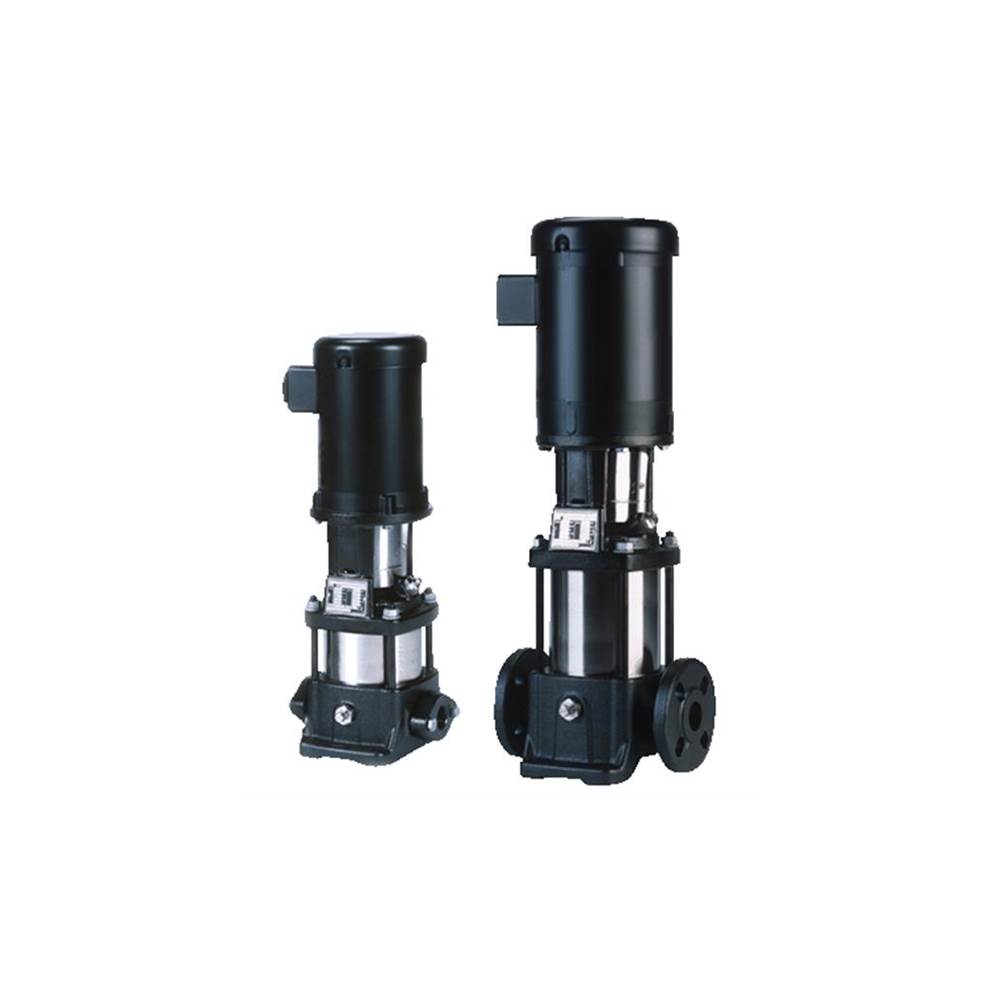

The 96080894 is produced by Grundfos and is described as a Grundfos 96080894 CR 1S-11 A-B-A-E-HQQE 3PH 0.75HP TEFC 60H

Grundfos . 96080894

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Man, Publisher, StudioGrundfos
CategoryL1Pumps
CategoryL2Centrifugal Pumps
CategoryL3Chemical Resistant
Extra Product NameGrundfos 96080894 CR 1S-11 A-B-A-E-HQQE 3PH 0.75HP TEFC 60H - MROSupply.com
moq, multiple, tierMinQty1, Case, NumberOfItems, Number_of_items1
MPN, Part Number, Product no, Keyword, PartNumber, Part_number, Sku96080894
qtyInStock, Number of reduced-diameter impellers0
SKU5023460
snippetThe 96080894 is produced by Grundfos and is described as a Grundfos 96080894 CR 1S-11 A-B-A-E-HQQE 3PH 0.75HP TEFC 60H
tierPrice11779.38
EAN, EANList, Identifier5700395153521
Product GroupBISS
Max ambient temperature (F)104
Temperature range (F)-4 - 248
Density (lb/ftBi)62.29
Rated voltage3 x 208-230YY/460Y V
HP0.75
Max pressure (psi)232
Pipe connection1 in NPT
Stages, Impellers11
Flange size, Flange size for motor56C
Rate flow (gpm)4.4
Density998.2 kg/m?
Rated speed3430-3460 RPM
Power (P2) required by pump, Rated power - P20.55 kW
Mains frequency60 Hz
Pump version, Model, Material codeA
Pumped liquidWater
Product nameCR 1S-11 A-B-A-E-HQQE
Pressure rating for connectionPN 16
Motor efficiency at 3/4 load79.9-79.3 %
Rated head61.1 m
Approvals for drinking waterNSF/ANSI 61
IE Efficiency classNEMA Premium / IE3 60Hz
Insulation class (IEC 85)F
Size of outlet connection, Size of inlet connection1 in
Temperature (?C)16 bar / -20
Max pressure at stated temp (?C)16 bar / 120
Motor no85900702
ApprovalsCURUS
Starting current590-650 %
Rated flow1.1 m?/h
Full load SF current2,9-2,75/1,4 A
Motor standardNEMA
Motor efficiency at full load78.9-80.1 %
BaseCast iron
Shaft seal arrangementSingle
Pump orientationVertical
Type of connectionOval / NPT(F)
Maximum operating pressure (bar)16
Low NPSHN
Selected liquid temperature (?C)20
Connect codeB
Curve tolerance2012 3B
Cos phi - power factor0.84-0.78
Service factor1.25
Number of poles2
Pump speed on which pump data are based3439 RPM
Maximum head92.4 m
BearingSIC
Liquid temperature range (?C)-20 - 120
Motor type71BA
Code for shaft sealHQQE
CoolingTEFC
ImpellerStainless steel
Code for rubberE
Maximum ambient temperature (?C)60
Rated current2,40-2,30/1,20 A
Motor efficiency at 1/2 load77.3-75.2 %
Enclosure class (IEC 34-5)55 Dust/Jetting
ASIN, AsinB00LBHY4DA
AdultProduct, Autographed, Memorabilia, TradeInEligibleFalse
Bullet_pointBrand: Grundfos Category: HVAC Free Shipping on this item! Product Number: 96080894 U-A-A-E-HQQE 3ph 0.75HP TEFC 60H 96080894
CatIndustrial & Scientific
CatId16310091
CatTree16310091 16310161 256346011
ClassificationId720590011
DisplayNameHVAC Equipment
FeatureBrand: Grundfos
Height192 29
IdentifierTypeEAN
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleGrundfos 96080894
Item_type_keywordindustrial-hvac-components
Linkhttps://m.media-amazon.com/images/I/31fXl73p9BL._SL75_.jpg https://m.media-amazon.com/images/I/31fXl73p9BL.jpg
ProductGroupBISS BISS Basic
ProductType, ProductTypeNameMECHANICAL_COMPONENTS
Product_descriptionGrundfos 96080894. U-A-A-E-HQQE 3ph 0.75HP TEFC 60H 96080894
Product_site_launch_date2014-06-26T21:28:57.402Z
Typeean
URLhttp://ecx.images-amazon.com/images/I/31fXl73p9BL._SL75_.jpg https://m.media-amazon.com/images/I/31fXl73p9BL._SL75_.jpg
Unitspixels
VariantMAIN
WebsiteDisplayGroupbiss_basic_display_on_website
WebsiteDisplayGroupNameBISS Basic
Width500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply5023460111 @ $1779.38
PlumbersStock423539111 @ $1460.00
AmazonTPB00LBHY4DA111 @ $2133.46
pumpproducts.com960808941(Usually Ships 7-10 Days)11 @ $2499.20
Edge Supply960808941-211 @ $2190.00
