Invertek ODP-2-64150-3HF42-MN 90kW 150Hp 180A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive P2 Performance VFD - MROSupply.com

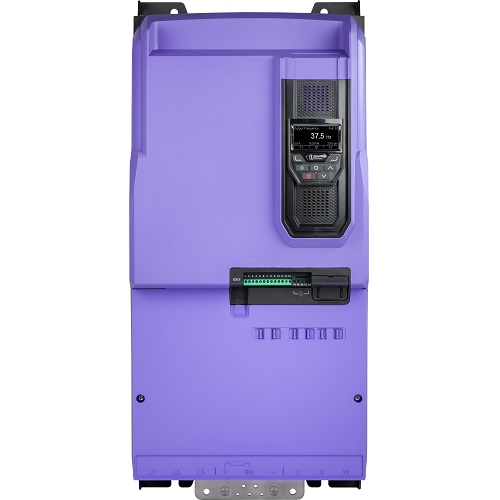

The ODP-2-64150-3HF42-MN is produced by Invertek and is described as a Invertek ODP-2-64150-3HF42-MN 90kW 150Hp 180A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive P2 Performance VFD

Invertek . ODP-2-64150-3HF42-MN

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerInvertek
CategoryL1Automation
CategoryL2Speed Controllers & VFDs
CategoryL3AC Vector Drives
CategoryL4Three Phase
DimensionUnitinch
Extra Product NameInvertek ODP-2-64150-3HF42-MN 90kW 150Hp 180A Output Current 380~480V 3Ph Input 380~480V 3Ph Output IP20 OptiDrive P2 Performance VFD - MROSupply.com
Voltage, Input voltage380/480V
Weight46
WeightUnitlbs
Weight_AttribPackaged dimensions weight
depth, length12.6
height28.7
height_AttribHeight
length_AttribDepth
moq, multiple, tierMinQty11
MPNODP-2-64150-3HF42-MN
qtyInStock0
SKU6092869
tierPrice16715.70
width14.763779527559056
width_AttribPackaged dimensions width
Frame, Drive dimensions size6B
Height28.7 in
Depth12.6 in
Rated power90 kW/150 HP
Phase, Input phases3
Width (in)13
Supply fuse or MCB (type B)250 A
Packaged dimensions depth785 mm (30.91 in)
Supply current continuous167.4 A
Supply voltage380-480 V
Max motor cable size, Max supply cable size150 mm? (0.23 in?)
Brake transistorInternal
Packaged dimensions height380 mm (14.96 in)
Output current180 A
Drive dimensions fixings-
Drive dimensions depth320 mm (12.6 in)
EMC filterInternal EMC
Max motor cable length100 m (328 ft)
Output voltage0 - supply voltage
Drive dimensions height726 mm (28.58 in)
Packaged dimensions weight46 kg (101.41 lbs)
DisplayTFT display
Drive dimensions weight43 kg (94.8 lbs)
Motor output rating90 kW (150 HP)
Drive dimensions width330 mm (12.99 in)
PCB coatingStandard
EnclosureIP20
Packaged dimensions width375 mm (14.76 in)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply6092869111 @ $6715.70
vfds.comODP-2-64150-3HF42-MN111 @ $8244.64
driveswarehouse.comODP-2-64150-3HF42-MN1-211 @ $6715.70
