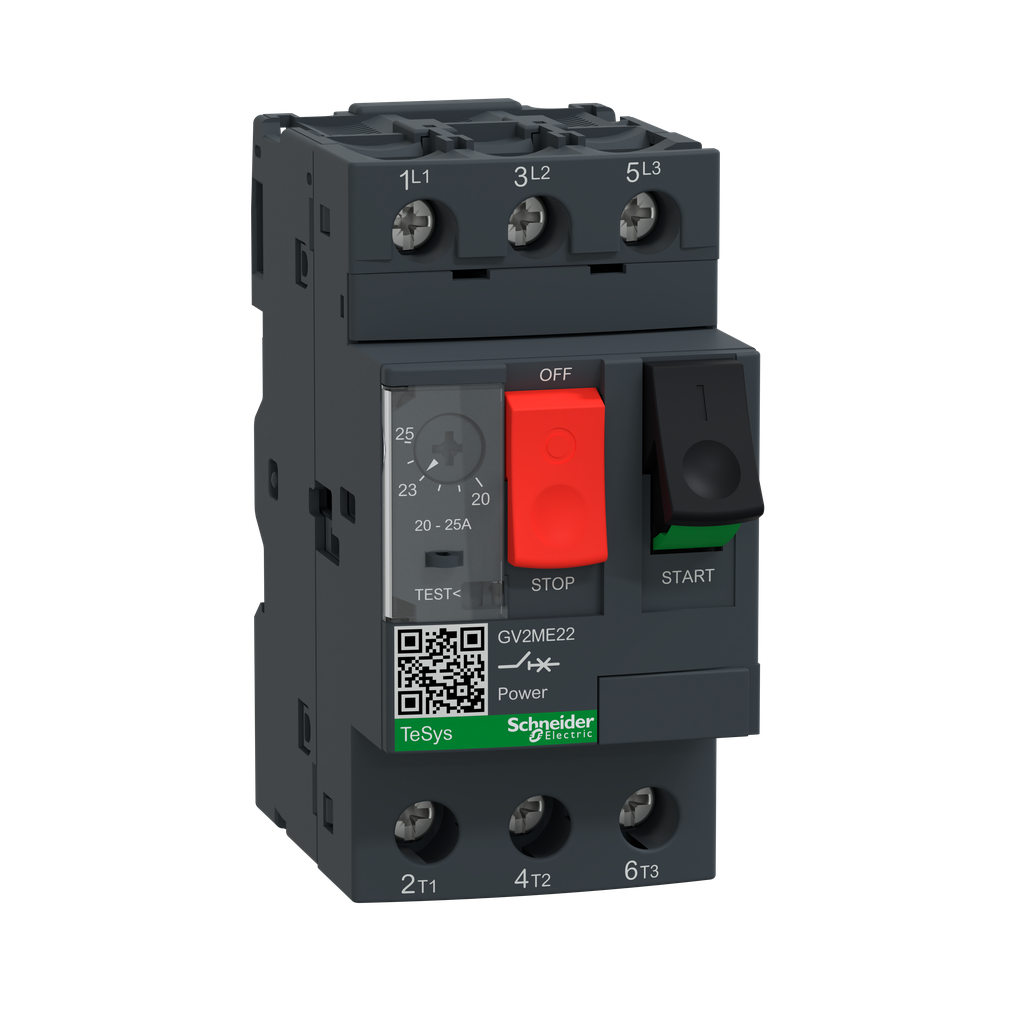

TeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp | Mayer Electric

Mayer Electric Supply . GV2ME22

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameTeSys Deca Manual Starter and Protector, thermal magnetic circuit protector, push buttons, 20 to 25 A, screw clamp | Mayer Electric
UPC785901212034
Weight0.26
WeightUnitkg
Weight_AttribNet Weight
depth, length78.5
height89.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-TeSys-GV2-Manual-Starter-and-Protector-thermal-magnetic-circuit-protector-push-buttons-20-to-25-A-screw-clamp-785901212034
jsonUrlData21b326ab3-5841-4ffd-af38-abb200c9d0ec
length_AttribDepth
moq, multiple, tierMinQty11
MPNGV2ME22
qtyInStock0
SKUSQDGV2ME22
tierPrice1256.05
width45.0
width_AttribWidth
Range Of ProductTeSys GV2
Product Or Component Typemotor circuit breaker
Product NameTeSys GV2 || TeSys Deca
RangeTeSys Deca
Device Applicationmotor protection
Device Short NameGV2ME
Trip Unit Technologythermal-magnetic
Warranty18 months
Mechanical Robustnessshocks 30 Gn IEC 60068-2-27 || vibrations 5 Gn, 5...150 Hz IEC 60068-2-6
Line Rated Current25 A
[Ue] Rated Operational Voltage, [Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Height89 mm
Phase Failure Sensitivityyes IEC 60947-4-1
Rated Dutycontinuous IEC 60947-4-1
Network TypeAC
Magnetic Tripping Current327-327 A
[Ith] Conventional Free Air Thermal Current25 A IEC 60947-4-1
Motor Power Kw11-11 kW 400/415 V AC 50/60 Hz || 15-15 kW 500 V AC 50/60 Hz
Maximum Operating Rate25 cyc/h
Operating Positionany position
Utilisation CategoryAC-3 IEC 60947-4-1 || category A IEC 60947-2
Net Weight0.26 kg
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Fixing Mode35 mm symmetrical DIN rail clipped || panel screwed with adaptor plate)
[Ics] Rated Service Short-Circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2 || 75 % 690 V AC 50/60 Hz IEC 60947-2 || 75 % 500 V AC 50/60 Hz IEC 60947-2 || 50 % 440 V AC 50/60 Hz IEC 60947-2 || 40 % 400/415 V AC 50/60 Hz IEC 60947-2
Control Typepush-button
Power Dissipation Per Pole2.5 W
Electrical Durability100000 cycles AC-3 415 V || 415 V
Suitability For Isolationyes IEC 60947-1 ? 7-1-6
Trip Unit Rating20-25 A
Tightening Torque1.7 N.m screw clamp terminals
Mechanical Durability100000 cycles
Poles Description3P
Colordark grey
Width45 mm
Depth78.5 mm
Network Frequency50/60 Hz IEC 60947-4-1
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP121004EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI121004EN
Eu Rohs DirectiveCompliant
Product CertificationsCCC || UL || CSA || EAC || ATEX || BV || LROS (Lloyds register of shipping) || UKCA || DNV-GL || RINA
Ik Degree Of ProtectionIK04
Ambient Air Temperature For Operation-20-60 ?C
StandardsEN/IEC 60947-2 || EN/IEC 60947-4-1
Climatic WithstandIACS E10
Ambient Air Temperature For Storage-40-80 ?C
Ip Degree Of ProtectionIP20 IEC 60529
Operating Altitude6561.68 ft (2000 m)
Fire Resistance960 ?C IEC 60695-2-11

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDGV2ME22111 @ $256.05
