Where can I buy TCA0223AE211GAA009?

TCA0223AE211GAA009 is available from Zoro, Dealers Electric, motorsandcontrol.com, Grainger, Platt.com. See pricing comparison above.

What is the price of TCA0223AE211GAA009?

Pricing ranges from $3728.46 to $4367.22 depending on quantity and distributor.

Yes, TCA0223AE211GAA009 is currently in stock at multiple distributors with immediate availability.

Name: Marathon Motors
Brand: Marathon Motors
Price: 3785.03 USD
Availability: OutOfStock

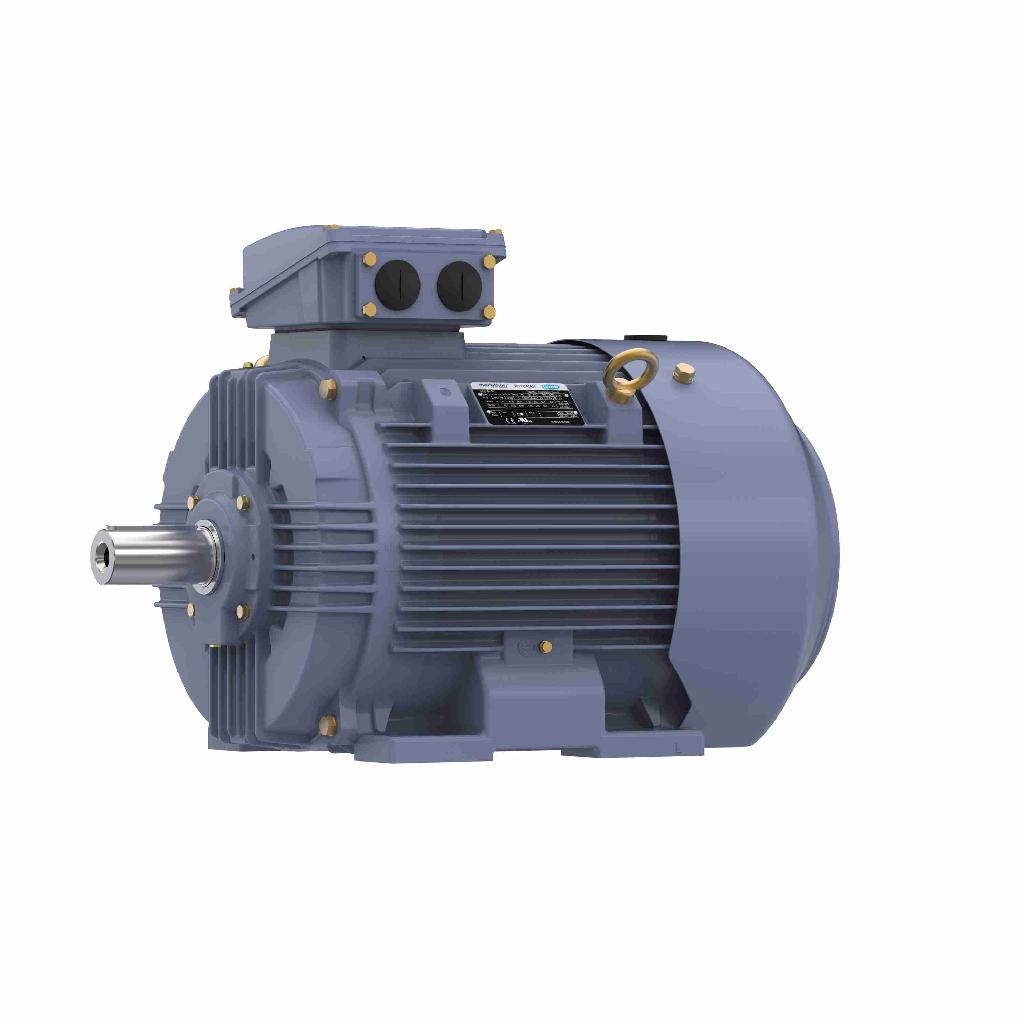

Marathon R344B (TCA0223AE211GAA009), 30HP, 1185 RPM, 3PH, 60,50 HZ, 230V/460V, 200L Frame, Standard Flange, Footed, TEFC, IEC Metric Motor

Brand name, Manufacturer name, Manufacturer, Extra Product Name	Marathon Motors
DimensionUnit	inch
GraingerSku	55AZ09
UPC, Motor Thermal Protection	None
UnitOfMeasure	EA
Voltage	230/460V AC
Weight	661.4
WeightUnit	lbs
cali_prop65_orglabel, cali_prop65_whtlabel	False
countryOfOrigin	IN
extendedLead	25
extendedQty	-2
height	29.33
jsonUrlData	924526ffbdad25e5923b
length	35
moq, multiple, tierMinQty1, No of Speeds	1
MPN	TCA0223AE211GAA009
perItemShipping	350.00
qtyInStock	0
qtyInStockOverride	Drop Ship
SKU	G8662009
tierPrice1	3785.03
url	https://www.zoro.com/marathon-motors-gp-motor-30-hp-1-185-rpm-230460v-200l-tca0223ae211gaa009/i/G8662009/
width	22.1
Item	General Purpose Motor
Motor Design	3-Phase
HP	30
RPM Range	1,101-1,200
Frame	200L
Motor Enclosure Design	Totally Enclosed Fan-Cooled
Motor Mounting Type	Rigid Base
Full Load Amps	76.0/38.0
Ins Class	F
Standards	CE, UL Recognized
Manufacturers Warranty Length	1 yr
CC Number	CC003A
Shaft Length	110 mm
Motor Shaft Rotation	CW/CCW
Motor Frame Material	Cast Iron
Duty, Duty Cycle	Continuous
Shaft Dia	55 mm
Hz	60/50
Motor Application	General Application
Max Ambient Temp	40 Degrees C
Voltage Compatibility	200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Nominal Efficiency	93 %
Motor Service Factor	1.15
Phase	Three
Nameplate RPM	1,185
kW	22.0
Motor Bearings	Ball
Inverter Rated	Yes
Usable @ 208V, Usable @ 200V	No
Length Less Shaft	659 mm
Overall Length	769 mm
NEMA Design	N
Motor Mounting Position	Horizontal
Country of Origin (subject to change)	India

Seller	SKU	MOQ	In stock	Multiple	Prices
Zoro	G8662009	1		1	1 @ $3785.03
Dealers Electric	TCA0223AE211GAA009	1	Backordered	1	1 @ $4367.22
motorsandcontrol.com	R344B	1		1	1 @ $0.00
Grainger	55AZ09	1		1
Platt.com	2105097	1		1
Galco	TCA0223AE211GAA009-MARA	1		1	1 @ $3728.46
