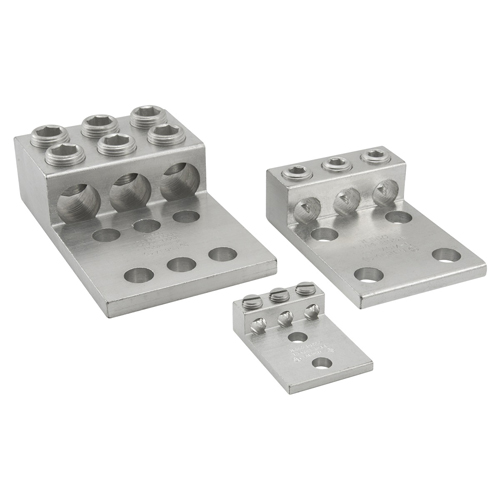

Aluminum Mechanical Lug, Conductor Range 3/0-6, 3 Ports, 2 Hole, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . T3A2-3/0N

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameAluminum Mechanical Lug, Conductor Range 3/0-6, 3 Ports, 2 Hole, 1/2in Bolt Size, 1-3/4in Hole Spacing, Tin Plated, UL, CSA | Mayer Electric
UPC783669897340
Weight0.561
WeightUnitlbs
Weight_AttribWeight
height1.125
height_AttribHeight
jsonUrlData/Product/ILSCO-Aluminum-Mechanical-Lug-Conductor-Range-3-0-6-3-Ports-2-Hole-1-2in-Bolt-Size-1-3-4in-Hole-Spacing-Tin-Plated-UL-CSA-783669897340
jsonUrlData26abb7011-d017-4ba9-8c34-abb200c8ee72
length3.875
length_AttribLength
moq, multiple, tierMinQty1, Number of Poles, Number of Wire Binding Screws per Port, Bag Quantity1
MPNT3A2-3/0N
qtyInStock0
SKUILST3A23/0N
tierPrice189.48
width, Tang Width (IN)2.813
width_AttribWidth
Height1.125 in | 28.575 mm
Length3.875 in | 98.425 mm
Width2.813 in | 71.4502 mm
ConnectionMechanical
Contains DE-OX?, Direct BurialNo
Mounting Hole TypeThru
Number of Conductors, Number of Ports / Wireways, Tang Length (IN)3
Number of Mounting Holes2
Conductor TypeStranded
Dimension G (IN)0.625
Drive Size Main5/16
Drive Type MainInternal Hex
Height BX (IN)2.25
Height (mm)28.575
Length (mm)98.425
Mounting Bolt/Stud Size (mm)304.8
Mounting Hole Diameter (IN)0.563
Mounting Hole Diameter (mm)14.3002
Mounting Hole Spacing (IN)1.75
Mounting Hole Spacing (mm)44.45
Tang Length (mm)76.2
Tang Thickness (IN)0.312
Tang Thickness (mm)7.9248
Tang Width (mm), Width (mm)71.4502
Weight BX (LB)2.5854
Width BX (IN)5
Conductor MaterialAluminum, Copper
Connector Finish, Wire Binding Hardware FinishTin
Material, Wire Binding Hardware MaterialAluminum
Mounting Bolt/Stud Size1/2
Wire Binding Screw Size9/16
Wire Binding Torque275
Temperature Rating90?C
Conductor Range AL Stranded (Primary, run, main, line), Conductor Range CU Stranded (Primary, run, main, line)3/0 Str - 6 Str
ColorSilver
Voltage Rating35 kV
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
Prop65 ComplianceThis product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
Carton Quantity DescriptionSTD PACK QTY 3
Dual RatedYes
NEMA CodeS-588-3
UPC Code78366989734

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILST3A23/0N111 @ $89.48
