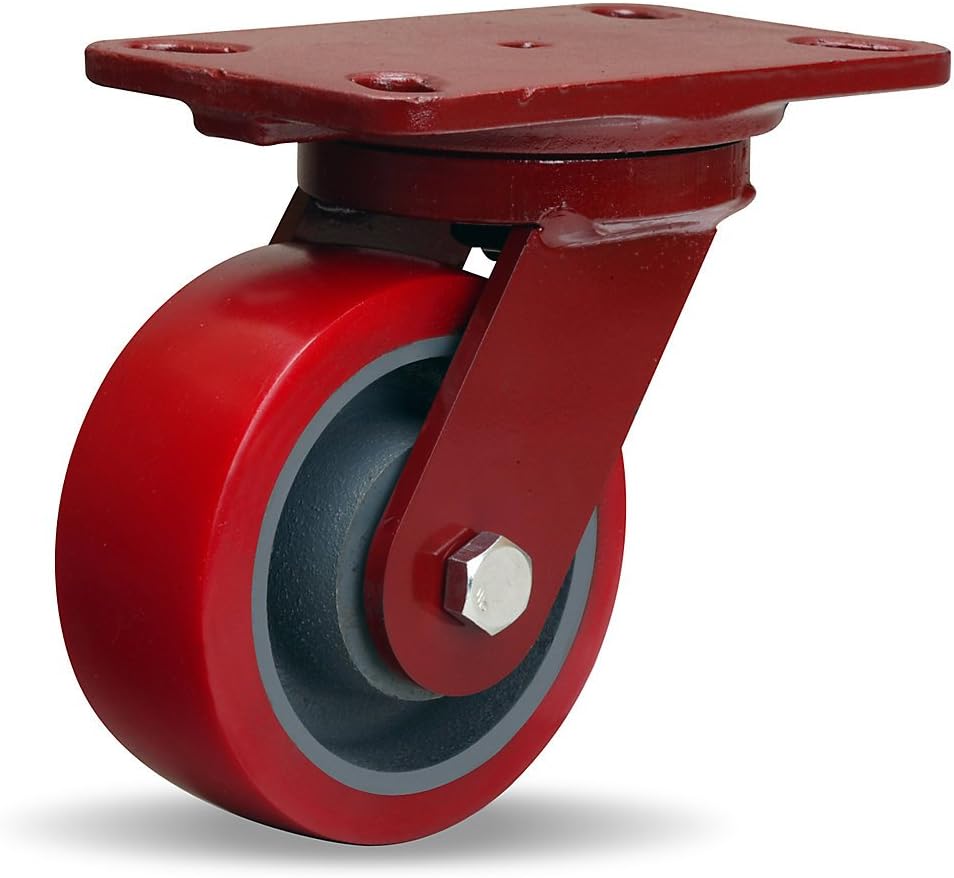

Heavy Service Swivel Caster, 5" x 2" Ergo-Glide Wheel (85A), 1/2" Precision Tapered Bearing

The Hamilton S-HS-5SPT heavy service caster features a 5-inch diameter poly-soft polyurethane wheel with a 2-inch width. It has a capacity of 840 pounds and is equipped with -3/4" precision tapered roller bearings for a swivel motion. The caster is designed with a blue finish.

Swivel Caster

Hamilton . S-HS-5SPT

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Brand, Label, Man, Publisher, StudioHamilton
CategoryId, CategoryIdL36740
CategoryIdL114394
CategoryIdL24473
CategoryL1Material Handling
CategoryL2Casters & Wheels
CategoryL3Casters
CategoryL4Plate Casters
DimensionUnitinch
GraingerSku, MPN, Part Number, Model, ModelNumber, Model_number, PartNumber, Part_numberS-HS-5SPT
Extra Product NameHeavy Service Swivel Caster, 5" x 2" Ergo-Glide Wheel (85A), 1/2" Precision Tapered Bearing
UPCNone
UnitOfMeasureEA
Weight14 14.0 14.00
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Memorabilia, TradeInEligibleFalse
countryOfOriginUS
height, length, moq, multiple, tierMinQty1, width, Number of Wheels, Case, NumberOfItems, Number_of_items1
jsonUrlData924526ffbdad25e5923b
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG3718310
snippet, Caster Product Group, ItemSwivel Caster
tierPrice1169.99
urlhttps://www.zoro.com/hamilton-heavy-service-swivel-caster-5-x-2-ergo-glide-wheel-85a-12-precision-tapered-bearing-s-hs-5spt/i/G3718310/
Product Group, WebsiteDisplayGroupNameHome Improvement
Wheel Dia5
Wheel Width2
Mounting Bolt Dia0.5
Plate Size4 1/2 x 6 1/2
Mounting Height6.75
Caster Wheel ShapeStandard
Caster Wheel/Tread Material, Material, MaterialTypePolyurethane
Load Rating840
Caster Frame MaterialForged Steel
Non-Marking, Thread GuardsNo
Caster Wheel BearingsTapered
Replacement WheelW-520-SPT-3/4
Frame FinishPowder Coat
Caster Plate Hole PatternA
Core ColorGray
Outside Bolt Hole Spacing3 3/8 x 5 1/4
Caster Temp Range-50 to 200 deg(F)
Caster Core MaterialCast iron
StandardsICWM
Inside Bolt Hole Spacing2 7/16 x 4 15/16
ASIN, AsinB00U2NDNTK
Bullet_pointCapacity: 840 lbs. Overall Height: 6-3/4" Wheel Dia.xW: 5x2" Wheel Type: Polyurethane
CatTools & Home Improvement
CatId228013
CatTree228013 468240 551240
ClassificationId511228
ColorBlue blue
DisplayNameHardware
FeatureWheel Dia.xW: 5x2"
Height1000 2.0 2.00 500 6.75 75
ItemClassificationBASE_PRODUCT
ItemName, Item_name, TitleHamilton Heavy Service Casters - 5"Dia.X2"W Poly-Soft Polyurethane Wheel - 840-Lb. Capacity - -3/4" Precision Tapered Roller Bearings - Swivel - Blue
Item_display_weight, Item_package_weight, Item_weight14.0
Item_type_keywordplate-casters
Length0.0 0.00 5.0 6.75
Linkhttps://m.media-amazon.com/images/I/41Di6zqXbjL._SL75_.jpg https://m.media-amazon.com/images/I/41Di6zqXbjL.jpg https://m.media-amazon.com/images/I/61g5F+qFijL.jpg
ProductGroupBISS Basic Home Improvement
ProductTypeHARDWARE
ProductTypeNameHARDWARE INDUSTRIAL_CASTERS
Product_descriptionHAMILTON Heavy Service CastersA feature drop forged steel construction placing them among the toughest caster on the market today. -5/16" thick drop forged steel mounting plate on swivel casters; -1/4" thick on rigid casters. -1/4x2" plate steel legs are robotically welded inside and outside to forged steel horn base. Sturdy -3/4" diameter integrally forged kingpin with mounting plate. Main load bearing is 3-1/4" diameter CNC-machined raceway; secondary load bearing has -3/4" precision tapered thrust bearing that counteracts radial thrust. -1/2" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs.
Product_site_launch_date2015-02-27T14:47:06.784Z
Supplier_declared_dg_hz_regulationunknown
URLhttps://m.media-amazon.com/images/I/41Di6zqXbjL._SL75_.jpg
Unitinches pounds
Unitsinches pixels pounds
VariantMAIN
WebsiteDisplayGrouphome_improvement_display_on_website
Width0.0 0.00 1000 2.0 5.0 5.00 500 75

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG3718310111 @ $169.99
AmazonSCB00U2NDNTK111 @ $190.98
ZoroG907352811
National Supply Network171480211
motionindustries.com05864820111 @ $280.98

Related on Amazon

As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.

Hamilton Heavy Service Casters - 5"Dia.X2"W Poly-Soft Polyurethane Wheel - 840-Lb. Capacity - -3/4" Precision Tapered Roller Bearings - Swivel - Blue
Brand: Hamilton
HAMILTON Heavy Service CastersA feature drop forged steel construction placing them among the toughest caster on the market today. -5/16" thick drop forged steel mounting plate on swivel casters; -1/4" thick on rigid casters. -1/4x2" plate steel legs are robotically welded inside and outside to forged steel horn base. Sturdy -3/4" diameter integrally forged kingpin with mounting plate. Main load bearing is 3-1/4" diameter CNC-machined raceway; secondary load bearing has -3/4" precision tapered thrust bearing that counteracts radial thrust. -1/2" diameter axle. Ball check type lubrication fittings in swivel assembly and wheel hubs.
Details
  • Wheel Dia.xW: 5x2"
  • Wheel Type: Polyurethane
  • Capacity: 840 lbs.
  • Overall Height: 6-3/4"
