Hamilton

Hamilton . S-FMK-83HMB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameHamilton
DimensionUnitinch
GraingerSku55GZ82
UPCNone
UnitOfMeasureEA
Weight31
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead20
extendedQty-2
height6
jsonUrlData924526ffbdad25e5923b
length, width12
moq, multiple, tierMinQty1, Number of Wheels1
MPNS-FMK-83HMB
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9074394
tierPrice1520.53
urlhttps://www.zoro.com/hamilton-plate-caster-1040-lb-load-rating-s-fmk-83hmb/i/G9074394/
Caster Sub-TypeSwivel
Load Rating1040 lb
Wheel Dia8 in
Wheel Width, Overall Wheel Width3 in
Inside Bolt Hole Spacing2-7/16 in x 4-15/16 in
For Surface TypeConcrete
Includes Mounting Fasteners, Includes Thread Guards, NSF Listed, Leveling Caster, With Toe Plate, Non-MarkingNo
Wheel TypeFlat-Free
Caster Mounting TypePlate
Swivel Lead2 1/2 in
Frame ColorBlack
SeriesMagmaMax
Mounting Plate Bolt Hole PatternA
ESD Conductive, Includes Spanner BushingYes
Mounting Height10 1/4 in
Wheel/Tread Color, Core ColorSilver
Wheel Bearing TypePrecision Ball
Caster Brake TypeNo Brake Included
Outside Bolt Hole Spacing3-3/8 in x 5-1/4 in
Mounting Plate Thickness5/16 in
Frame FinishEnamel
FeaturesDurable, High Heat, Quiet Operation, Reliable
Swivel Radius6 1/2 in
Wheel Core Material, Wheel/Tread MaterialCast Iron
Caster Frame MaterialSteel
Mounting Bolt Dia1/2 in

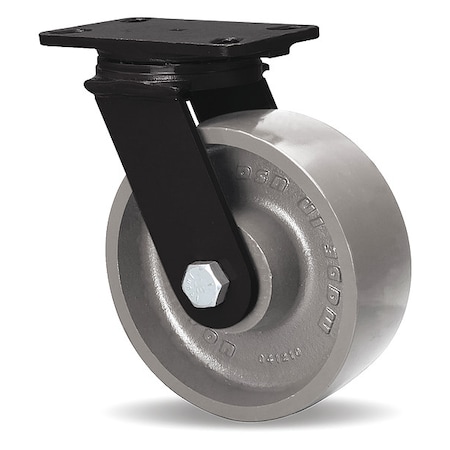

ItemHeat-Resistant Standard Plate Caster
Swivel Raceway TypeSingle Ball
Frame ConstructionForged
Wheel Core TypeSolid
Mounting Plate Size4 1/2 in x 6 1/2 in
For Axle Dia3/4 in
ApplicationAerospace Tooling, All Purpose Industrial/Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Chassis Rack Carts, Engine Dollies, Material Carts
StandardsICWM
Wheel Bearing MaterialStainless Steel
Tire StyleTubeless
Number of Mounting Holes4
Operating Temperature Range-50 Degrees to 200 Degrees F
TreadFlat
Swivel Lock TypeNo Lock Included
Load Rating Range1000 to 2999 lb
Wheel/Tread Hardness RatingExtra Hard
Wheel/Tread Hardness188 BHN
Tread ShapeStandard
Swivel ConstructionKingpinless
Caster Product GroupKingpinless Caster
Swivel Bearing Seal TypeOpen
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9074394111 @ $520.53
Grainger55GZ8211
