Weg

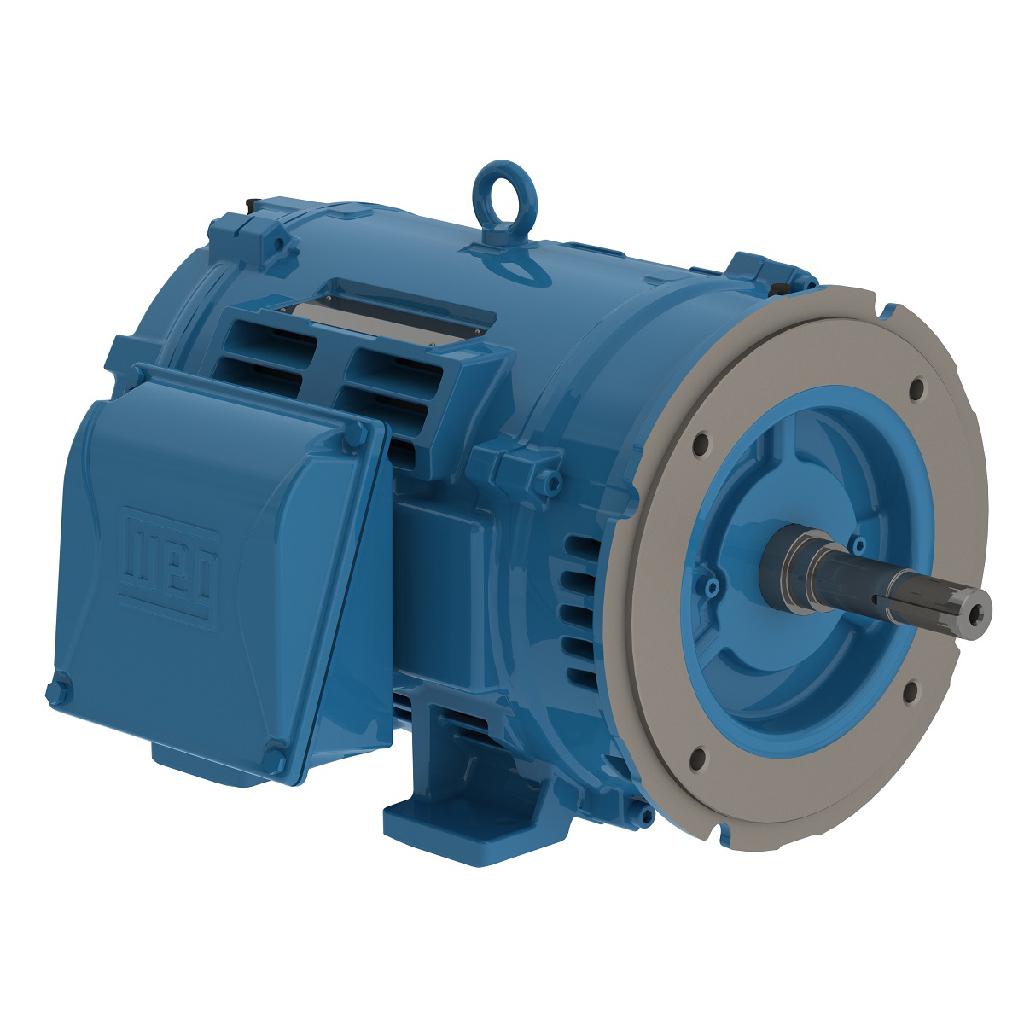

The 03036OT3E284JM-W40 is produced by WEG and is described as a WEG 03036OT3E284JM-W40 MOTOR 30HP 2P 284JM WFA2

Weg . 03036OT3E284JM-W40

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameWeg
DimensionUnitinch
GraingerSku4EUV3
UPC, Motor Thermal ProtectionNone
UnitOfMeasureEA
Voltage208-230/460V AC
Weight361
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginZZ
extendedLead26
extendedQty-2
height18
jsonUrlData924526ffbdad25e5923b
length34.4
moq, multiple, tierMinQty1, Service Factor @ 50Hz, No of Speeds1
MPN03036OT3E284JM-W40
perItemShipping250.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG1209442
tierPrice12844.45
urlhttps://www.zoro.com/weg-pump-mtr-3ph-30hp-3530-208-230460-284jm-03036ot3e284jm-w40/i/G1209442/
width22.5
ItemClose-Coupled Pump Motor
Motor Design3-Phase
HP30
RPM Range3,001-3,600
Nameplate RPM3,545
Frame284JM
Motor Mounting TypeFace/Base
Motor Service Factor1.25
PhaseThree
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
Nominal Efficiency91.7 %
Max Ambient Temp40 Degrees C
Motor Efficiency GroupNEMA Premium Efficient
StandardsCSA (LR38324), UL (E104590)
CC NumberCC029A
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Motor ApplicationPump
Green Certification or Other RecognitionNEMA Premium Rated
Motor Frame Material, Frame MaterialCast Iron
Motor Shaft DesignJM Threaded
Motor Enclosure DesignOpen Dripproof
Hz60
Ins ClassF
Length Less Shaft18 13/16 in
Shaft Length5 1/4 in
Motor Shaft RotationCW/CCW
Shaft Dia1 1/4 in
Motor BearingsBall
Inverter Rated, Usable @ 208VYes
Motor Sub ApplicationClose-Coupled Pump
Full Load Amps76.7-70.4/35.2
Duty, Duty CycleContinuous
Overall Length24 1/16 in
Conduit Box PositionF1
NEMA DesignB
Manufacturers Warranty Length3 yr
Motor Mounting PositionHorizontal
HP @ 50Hz25
Shaft MaterialCarbon Steel
Voltage @ 50Hz380/400/415
Height15 3/4 in
Inverter Rating1000:1
Body Dia13.8 in
Bolt Circle Dia11 in
Conduit Box LocationExterior
Usable @ 200VNo
RPM @ 50Hz2,950
Regreasable BearingsRegreasable Bearings
ApplicationCentrifugal Close-Coupled Pumps Where the Pump Impeller is Mounted Directly to the Threaded Motor Shaft
Country of Origin (subject to change)Multiple

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG1209442111 @ $2844.45
Grainger4EUV311
electricmotorwholesale.com03036OT3E284JM-W40111 @ $1777.00
MRO Supply5902347111 @ $2437.22
Applied Industrial11637115211
Dealers Electric03036OT3E284JM-W40111 @ $2914.05
sustainablesupply.comC14920301Add to Cart11 @ $5532.09
industrialrefrigerationparts.com03036OT3E284JM-W401Ships From Manufacturer11 @ $2698.26
kscdirect.comWEG 03036OT3E284JM-W40111 @ $2711.05
Square One03036OT3E284JM-W4011
Walker Industrial03036OT3E284JM-W4013 to 5 Days11 @ $2388.75
industrialmotors.com03036OT3E284JM-W4011
