Zoro Select

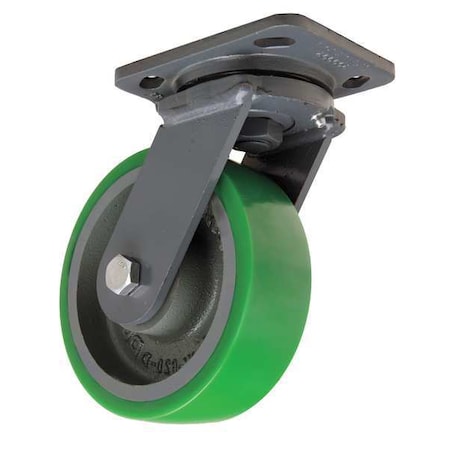

Zoro Select . S-WH-6DB-4SL-FB

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameZoro Select
DimensionUnitinch
GraingerSku, MPNS-WH-6DB-4SL-FB
UPCNone
UnitOfMeasureEA
Weight12.38
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead, height, length8
extendedQty-2
jsonUrlData924526ffbdad25e5923b
moq, multiple, tierMinQty1, Number of Wheels1
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9261819
tierPrice1209.00
urlhttps://www.zoro.com/zoro-select-plte-castr-swvl-polypropyln-6-1250-lb-s-wh-6db-4sl-fb/i/G9261819/
width6
Caster Brake Included, Non-Marking, Caster Temp Range AvailableYes
Caster Load Rating RangeMedium-Duty
Caster Sub-TypeSwivel
Caster Wheel Shape, Tread ShapeStandard
Caster Wheel/Tread Material, Wheel/Tread MaterialPolyurethane
Load Rating1250 lb
Overall Height7-1/2"
Wheel Dia6 in
Wheel Width2 in
Caster Plate Hole Pattern, Plate Caster Bolt Hole PatternB
Frame FinishEnamel
Inside Bolt Hole Spacing3 in x 3 in
Outside Bolt Hole Spacing2 5/8 in x 3 5/8 in
Mounting Bolt Dia3/8 in
Caster Plate Thickness1/4"
Wheel ColorGreen
ApplicationAutomotive, Industrial
Extended Lead, Thread GuardsNo
Core ColorGray
Replacement WheelMfr. No. W-620-DB-1/2
Caster Brake TypeSide Cam
Caster Raceway, Swivel Raceway TypeSingle Ball
ItemPlte Caster
IncludesSwivel Lock, Brake
Caster Core Material, Wheel Core MaterialCast Iron
Caster Wheel BearingsBall
Caster Product GroupSwivel Caster with 4-Position Directional Lock and Brake
Caster Max Temp200 Degrees F
Caster Swivel Lock Type, Swivel Lock Type4-Position Directional Lock
Caster Plate Size4" x 5"
Caster Frame MaterialSteel
Caster Min Temp-40 Degrees F
StandardsICWM
Durometer90 Shore A
Load Rating RangeMedium
Mounting Plate Size4 in x 5 in
Country of Origin (subject to change)United States

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9261819111 @ $209.00
ZoroG2010806111 @ $179.58
