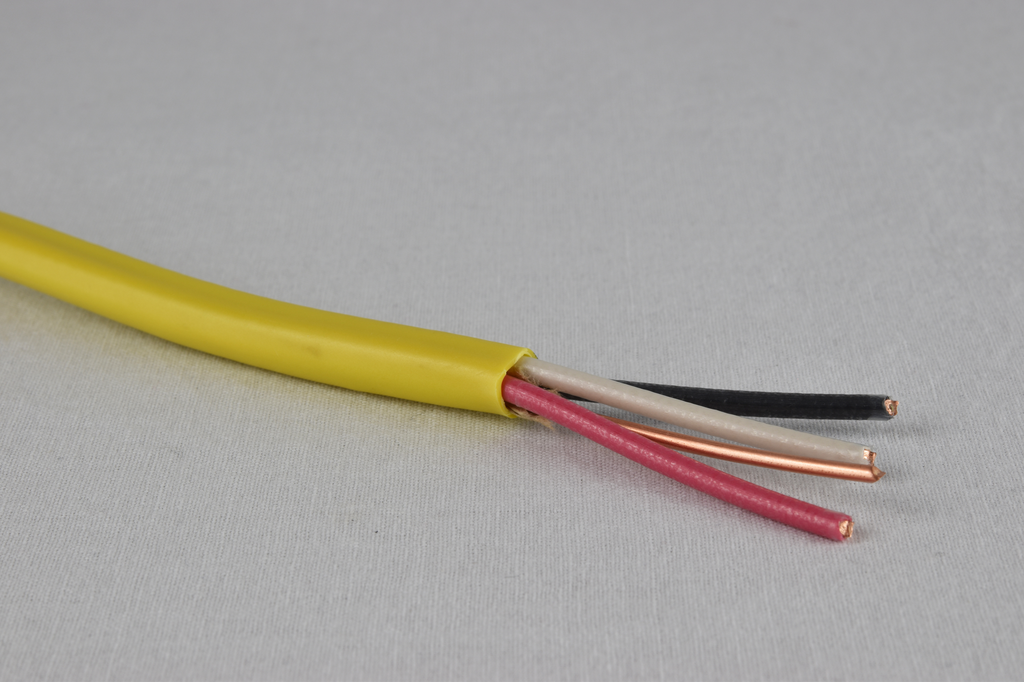

NM-B - 12 AWG - 3 Conductor - Copper With Ground - 1000' Reel | Mayer Electric

MAYER NON METALLIC WIRE . B04542

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMAYER NON METALLIC WIRE
DimensionUnitfoot
Extra Product NameNM-B - 12 AWG - 3 Conductor - Copper With Ground - 1000' Reel | Mayer Electric
UPC980100263560
Weight, Total Weight (kg/km)159
WeightUnitkg
Weight_AttribTotal Weight (kg/km)
jsonUrlData/Product/MAYER-NON-METALLIC-WIRE-RX-12-3-CU-w-Gnd-Typ-NM-B-1000S-R-980100263560
jsonUrlData2fdc68dcd-247a-4e5e-a942-abb200c7ed54
length1000.0
length_AttribLength
moq, multiple, tierMinQty11
MPNB04542
qtyInStock5226
SKUNMW123WGREEL
tierPrice11.0616
Color-coded2 conductor - Black, White; 3 conductor - Black, White, Red
Number of Wires, StrandingSolid
Insulation Thickness (in)0.015
Insulation Thickness (mm)0.38
Insulation ColorYellow
Jacket Thickness (in)0.004
Jacket Thickness (mm)0.1
Nominal Cable O D (in)0.345
Nominal Cable O D (mm)8.76
Copper Weight (lbs/1000 FT)81
Copper Weight (kg/km)121
Total Weight (lbs/1000 FT)107
Ampacity20
MaterialCopper With Ground
Size12 AWG - 3 Conductor
Length1000'
Conductor MaterialCopper
Insulation MaterialPVC
Wet Location Use, Direct BurialNo
GroundedYes
Voltage Rating600 V

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comNMW123WGREEL1522611 @ $1.06
