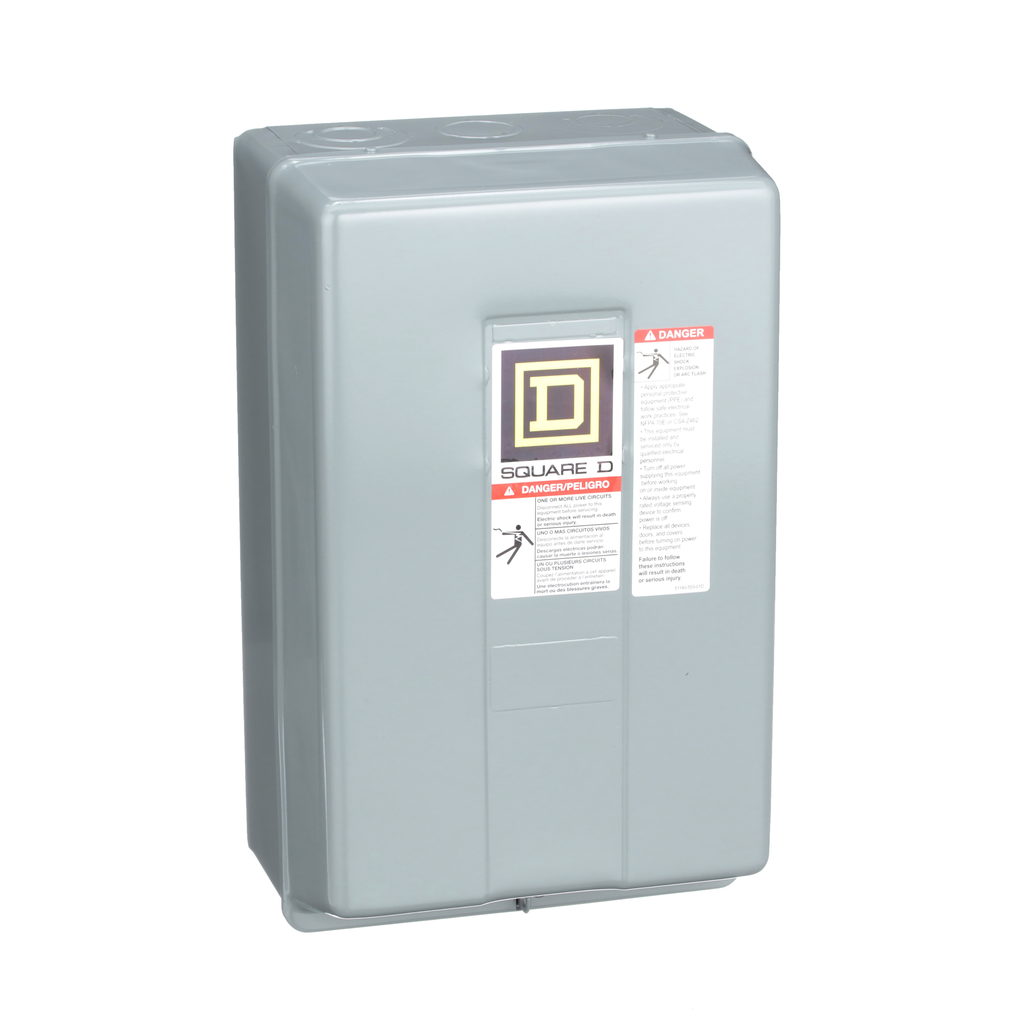

Contactor, Type LX multipole lightling, mechanically held, 30A, 4 pole, 600V, 277VAC 60Hz coil, NEMA 1 | Mayer Electric

Shop SQUARE D at Mayer. Type L/LX Lighting Contactors 8903LX Mechanically Held - 8903LXG40V04

Mayer Electric Supply . 8903LXG40V04

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameContactor, Type LX multipole lightling, mechanically held, 30A, 4 pole, 600V, 277VAC 60Hz coil, NEMA 1 | Mayer Electric
UPC785901057352
depth, length153.0
height322.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-8903LX-mechanically-held-lighting-contactor-4-P-4-NO-30-A-600-V-277-V-60-Hz-coil-NEMA-1-785901057352
jsonUrlData25488f35b-4be8-4f03-867c-abd2006139cf
keywordsSQUARE D, Mayer SQUARE D, 785901057352, 8903LXG40V04
length_AttribDepth
moq, multiple, tierMinQty11
MPN8903LXG40V04
qtyInStock0
SKUSQD8903LXG40V04
snippetShop SQUARE D at Mayer. Type L/LX Lighting Contactors 8903LX Mechanically Held - 8903LXG40V04
tierPrice1740.52
width198.0
width_AttribWidth
Range Of Product8903LX
Control Circuitseparate control circuit
Product Or Component TypeMechanically Held Lighting Contactor
Warranty18 months
Local Signallingno indicator
Height322 mm
Control Typeno control units
[Uc] Control Circuit Voltage277 V AC 60 Hz
Electrical Connectionscrew-clamp terminals
Width198 mm
Depth153 mm
Line Rated Current20-20 A tungsten || 30-30 A fluorescent
Inrush Power In Va25-25 VA 60 Hz || 150-150 VA 50/60 Hz
Poles Description4P 4 NO
Additional Included Devicenone
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1407018EN
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
Halogen Content PerformanceHalogen free plastic parts product
Product CertificationsUL Listed || CSA
Nema Degree Of ProtectionNEMA 1 painted sheet steel surface

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQD8903LXG40V04111 @ $740.52
