Dayton

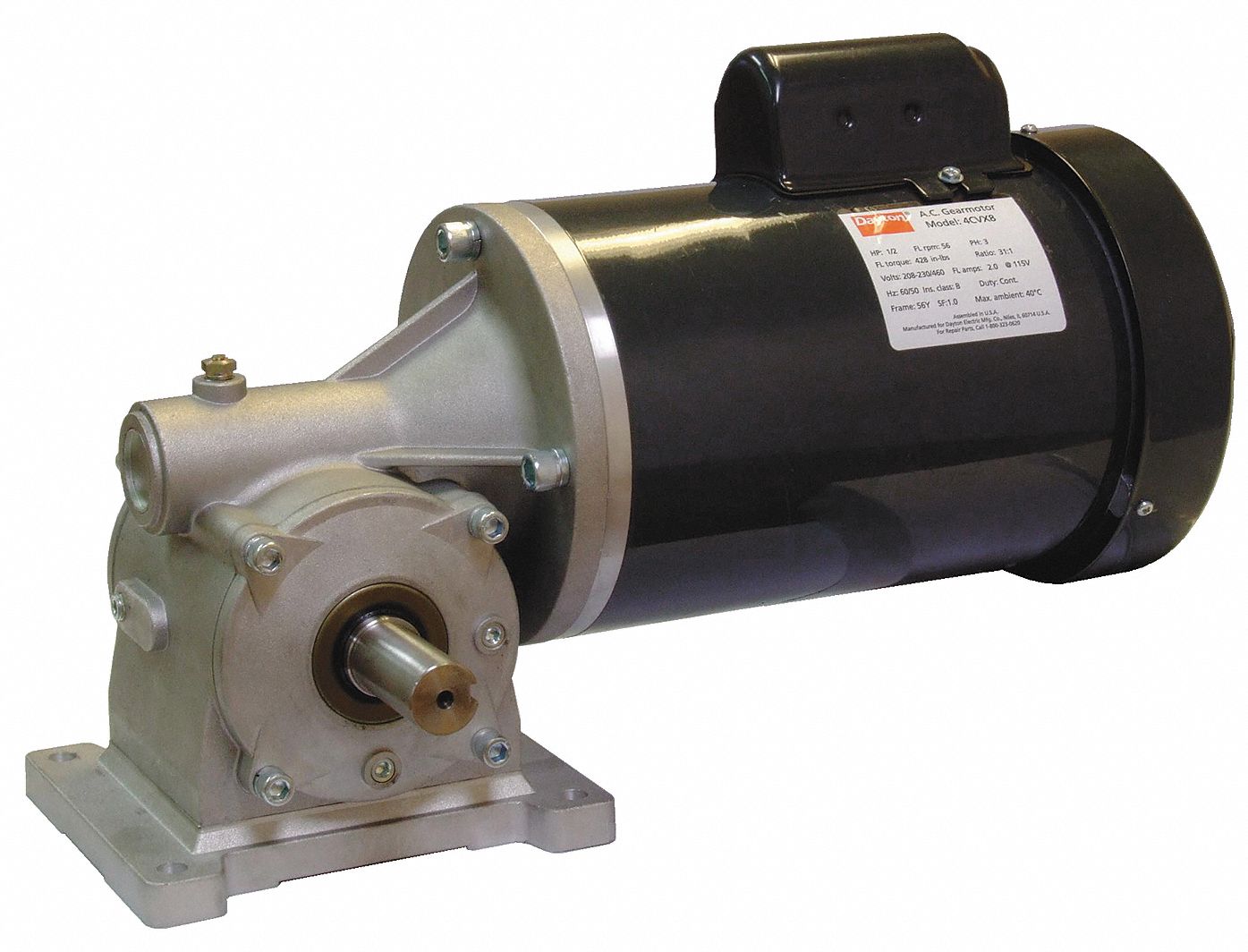

Dayton AC Gearmotor 115/208-230 Nameplate RPM 30 Max. Torque 680 in.-lb. Enclosure TEFC - 4CVZ3

Dayton . 4CVZ3

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameDayton
DimensionUnitinch
GraingerSku, MPN4CVZ3
UPC190735322994
UnitOfMeasureEA
Voltage115/208-230
Weight43
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
extendedLead, moq, multiple, tierMinQty1, Gearmotor Phase, Phase1
height12.8
jsonUrlData924526ffbdad25e5923b
length18.5
qtyInStock, qtyInStockOverride0
qtySourceqtyInStockOverride
SKUG2339486
tierPrice1933.99
urlhttps://www.zoro.com/dayton-ac-gearmotor-6800-in-lb-max-torque-30-rpm-nameplate-rpm-115208-230v-ac-voltage-1-phase-4cvz3/i/G2339486/
width12.5
Item, Gearmotor TypeAC Gearmotor
Gearmotor Voltage115/208-230V AC
Max Torque680.0 in-lb
Gearmotor Shaft TypeSingle Left
Gearmotor Shaft Orientation, Shaft OrientationRight Angle
Nameplate RPM30 RPM
Gearmotor EnclosureTotally Enclosed Fan-Cooled
Gearmotor RotationCW/CCW
Gearmotor Brake Type, Thermal ProtectionNone
Gearmotor Mounting PositionAll Angle
Full Load Amps8.4/4.2
Keyway Size Type1/4 sq in x 1-1/4 in
StandardsUL Recognized/CSA
Input HP1/2 hp
SealsOil Seals on Axle Shaft
Dimension N0.44 in
Max Ambient Temp40 Degrees C
Dimension D23"
ApplicationPrinting Press, Conveyors, Pumps, Mixers
Dimension BA, Shaft Dia (Dimension U)1"
RPM Range16 to 30
HousingAluminum/Cast Iron
Starting Torque2,436 in-lb
ShaftSingle Output
Overhung Load980 lb
Hz60/50 Hz
Dimension F5.2"
BearingsBall
Dimension D110.14"
LubricationGear Oil
EnclosureTEFC
Dimension AB, Dimension D6 in
Dimension X2"
Dimension AA6.72 in
Dimension S1.38"
Gear MaterialHardened Steel/Forged Bronze
Dimension B7.13 in
Keyway Size1/4" Square x 1-1/4"
Dimension L2.5"
MountingAll Position
Dimension C7 in
Overall Length15.99 in
Gear Ratio58:1
GearsHardened Steel Worm, Forged Bronze Output Gear
Shaft Length (Dimension V)2.25"
Dimension A9.27 in
Dimension U9 7/100"
IncludesCapacitor
Dimension E3.22 in
Dimension Z5"
Motor TypeCapacitor-Start
Gear Case MaterialDie Cast Aluminum
Gear TypeWorm
Height (Dimension O)10.66"
Insulation ClassF
RotationReversible
Dimension H3.25"
Country of Origin (subject to change)China

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG2339486111 @ $933.99
Grainger4CVZ311
AmazonTPB00WO6H0P6111 @ $1028.28
AmazonTPB007IBQL1Q111 @ $1300.00
AmazonSCB007IBQL1Q111 @ $1324.99
sustainablesupply.comC16857651-211 @ $1375.96
emotorpro.com4CVZ31-211 @ $1400.00
grainger.caWWG4CVZ3111 @ $1268.07
simsupply.comZO-G23394861211 @ $1072.66
