QSZ3TR Rohm Semiconductor | Discrete Semiconductor Products | DigiKey
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer, Mfr | Rohm Semiconductor |
|---|---|
| Extra Product Name | QSZ3TR Rohm Semiconductor | Discrete Semiconductor Products | DigiKey |
| atoms, minimum, moq, multiple | 1 |
| MPN | QSZ3TR |
| qtyInStock | 0 |
| SKU | QSZ3TR-ND |
| Series | - |
| Part Status | Obsolete |
| Transistor Type | NPN, PNP (Emitter Coupled) |
| Current - Collector (Ic) (Max) | 3A |
| Voltage - Collector Emitter Breakdown (Max) | 12V |
| Vce Saturation (Max) @ Ib, Ic | 250mV @ 30mA, 1.5A |
| Current - Collector Cutoff (Max) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 270 @ 500mA, 2V |
| Power - Max | 500mW |
| Frequency - Transition | 280MHz |
| Operating Temperature | 150?C (TJ) |
| Mounting Type | Surface Mount |

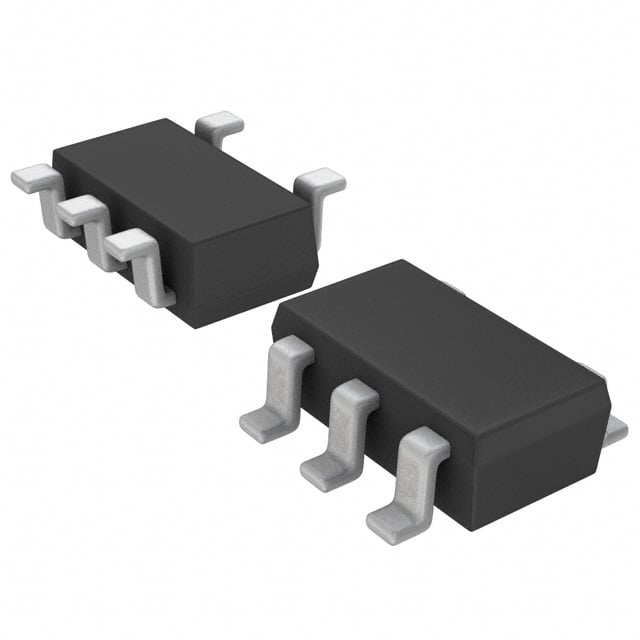

| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSMT5 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| QSZ3TR-ND | 1 | 1 | |||
| Hotenda | H2039171 | 1 | 1 | ||
| Digi-Key | 4004541 | 1 | 1 |
