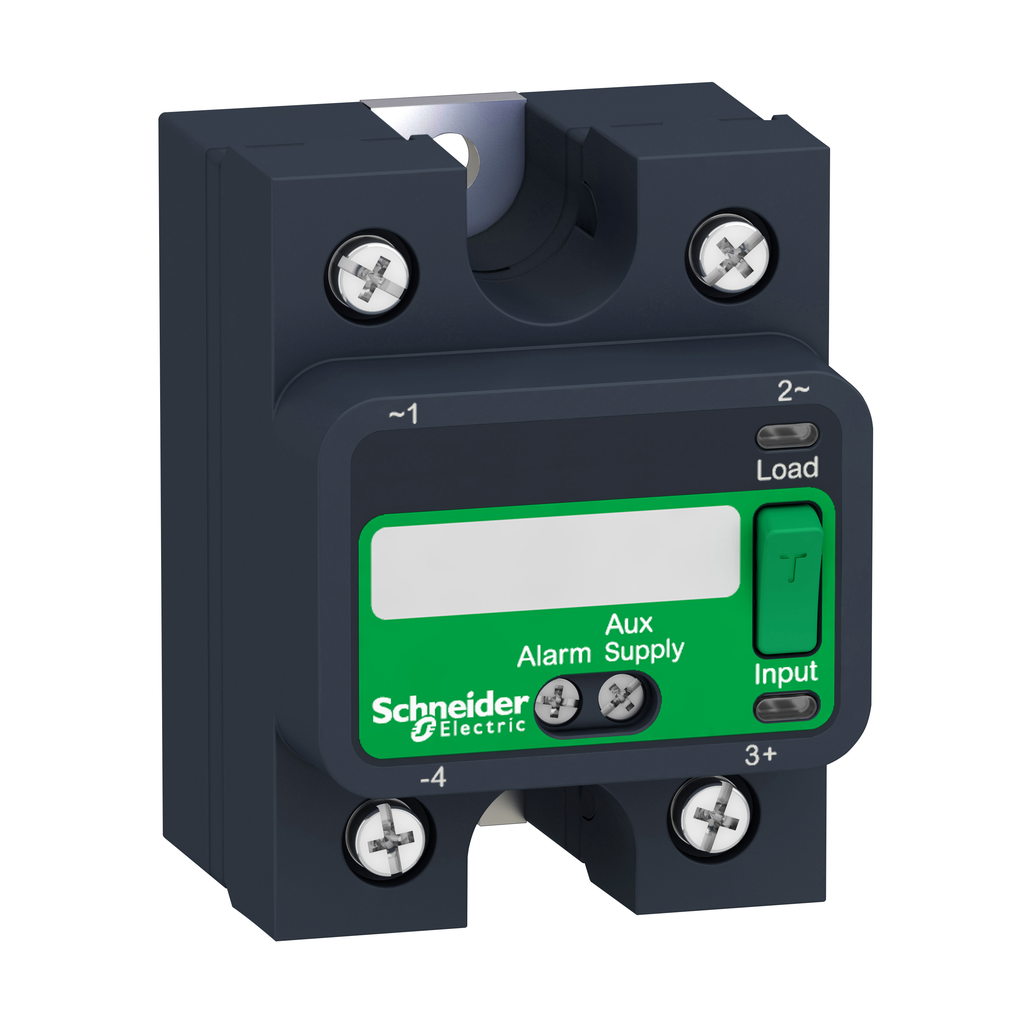

Harmony, Solid state relay, 25 A, panel mount, zero voltage switching, thermal pad and smart diagnostic, input 3...32 V DC, output 24?300 V AC | Mayer Electric

SQUARE D . SQDSSP1A125BDS

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
Extra Product NameHarmony, Solid state relay, 25 A, panel mount, zero voltage switching, thermal pad and smart diagnostic, input 3...32 V DC, output 24?300 V AC | Mayer Electric
UPC3606485442228
Weight97.1
WeightUnitg
Weight_AttribNet Weight
jsonUrlData/Product/SQUARE-D-Harmony-Solid-state-relay-25-A-panel-mount-zero-voltage-switching-thermal-pad-and-smart-diagnostic-input-3-32-V-DC-output-24300-V-AC-3606485442228
jsonUrlData2bd11cb21-f467-441b-b420-aeea0057ba18
moq, multiple, tierMinQty11
MPN, SKUSQDSSP1A125BDS
qtyInStock0
tierPrice183.45
Range Of ProductHarmony Solid State Relays
Mounting Supportpanel
Output Switching Modezero voltage switching
Product Or Component Typesolid state relay up to 30 A
Phase1 phase
Solid State Output TypeSCR output || zero voltage switching
Provided Equipmentthermal pad
Line Rated Current25 A
Device Short NameSSP1
Safety Reliability DataB10d = 1731395 || MTTFd = 1875.9 years
Cos Phi0.5-0.5 (with maximum load)
[Uc] Control Circuit Voltage4...32 V DC
Output Voltage24...300 V AC
Maximum Horse Power Rating0.5 hp 120 V AC || 1 hp 240 V AC
Tightening Torque1.5...1.7 N.m for input || 2...2.2 N.m for output || 17.7...19.47 lb.in for output || 13.27...15.04 lb.in for input || 0.5...0.6 N.m for auxillary terminal || 4.4...5.3 lb.in for auxillary terminal
Insulation Resistance1000 MOhm at 500 V DC
Thermal Resitance0.8 ?C/W junction to case
Maximum I?T For Fusing259 A?.s for 8.33 ms at 60 Hz || 258 A?.s for 10 ms at 50 Hz
Dielectric Strength4 kV AC for input/output || 4 kV AC for input or output to case
Response Time0.5 cycle (turn-on) || 0.5 cycle (turn-off)
Surge Current250 A 16.6 ms
Load Current0.15-25 A
Net Weight97.1 g
[Uimp] Rated Impulse Withstand Voltage6 kV output to case || 6 kV input to output
Minimum Switching Voltage4 V DC turn-on
Maximum Leakage Current1 mA off-state
Ip Degree Of ProtectionIP20
Device Presentationcomplete product
Absolute Maximum Voltage600 V
Dv/Dt500 V/?s off-state at maximum voltage
Maximum Output Current30 mA 32 V DC
Maximum Switching Voltage1 V DC turn-off
Capacitance Unbalance10 pF for input/output
Minimum Load150 mA
Input Current Limits10-10 mA at 12 V DC
Protection Device Typetype 1 - 25 A miniature circuit breaker (MCB) B || type 2 - 20 A miniature circuit breaker (MCB) B
Auxiliary Connection Terminalscrew-type connector, 0.5...1.5 mm? AWG 20...AWG 16)slotted Philips
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1505006EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationX
Circularity ProfileENVEOLI1505006EN
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsEAC || CSA || UL || CE
Ambient Air Temperature For Operation-40-80 ?C
StandardsUL 508 || EN/IEC 62314 || CSA C22.2 No 14-13 || EN/IEC 60950-1
Pollution Degree2
MarkingEAC || UL || CSA || CE
Ambient Air Temperature For Storage-40-125 ?C
Overvoltage CategoryIII
