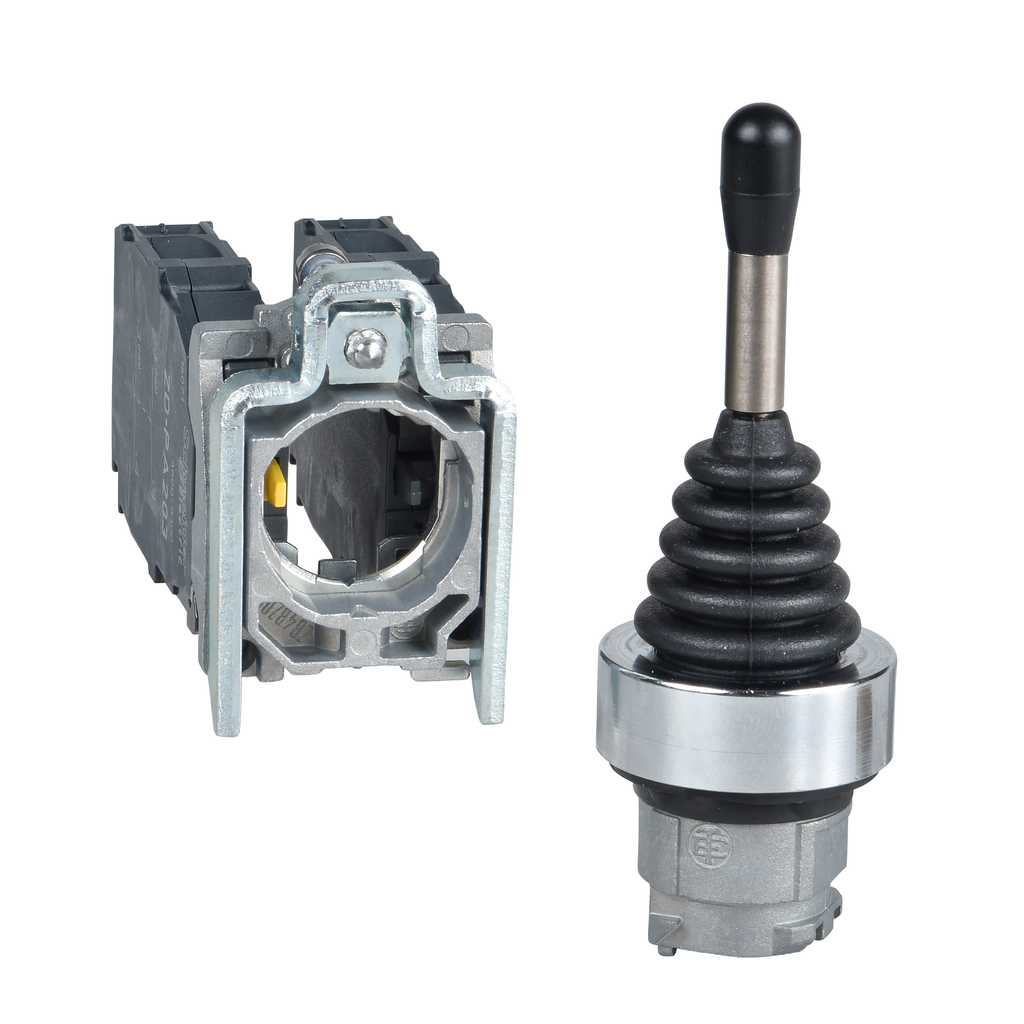

Harmony XB4, Joystick controller plastic, ?22, 4 directions, spring return, 1 NO | Mayer Electric

Mayer Electric Supply . XD4PA24

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameHarmony XB4, Joystick controller plastic, ?22, 4 directions, spring return, 1 NO | Mayer Electric
UPC785901376484
Weight0.133
WeightUnitkg
Weight_AttribNet Weight
diameter, length, width22.0
jsonUrlData/Product/SQUARE-D-Joystick-controller-plastic-Ø22-4-directions-spring-return-1-NO-785901376484
length_Attrib, width_AttribMounting Diameter
moq, multiple, tierMinQty1, Sale Per Indivisible Quantity1
MPNXD4PA24
qtyInStock0
SKUSQDXD4PA24
tierPrice1200.00
Range Of ProductHarmony XDA
Mounting Diameter22 mm
Product Or Component Typejoystick controller
Operator Direction Information4 directions
Fixing Collar Materialzamak
Type Of Operatorspring return to 0 position, long operating shaft 54 mm
Contacts Type And Composition1 NO
Bezel Materialchromium plated metal
Contact Operationslow-break
Operator Position Information5 positions
Device Short NameXD4
Warranty18 months
Contacts Usagestandard
Short-Circuit Protection10 A cartridge fuse gG EN/IEC 60947-5-1
Contacts Materialsilver alloy (Ag/Ni)
Positive Openingwithout
[Ith] Conventional Free Air Thermal Current10 A EN/IEC 60947-5-1
Shape Of Signaling Unit Headround
Net Weight0.133 kg
[Uimp] Rated Impulse Withstand Voltage6 kV EN 60947-1
Device Presentationcomplete product
Resistance To High Pressure Washer7000000 Pa 55 ?C 0.1 m
[Ui] Rated Insulation Voltage600 V 3)EN 60947-1
[Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1
Mechanical Durability1000000 cycles
Notch Per Direction1-1
Tightening Torque0.8-1.2 N.m EN 60947-1
Shape Of Screw Headcross Philips no 1 || cross pozidriv No 1 || slotted flat ? 4 mm || slotted flat ? 5.5 mm
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP110718EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Product CertificationsUL Listed || LROS (Lloyds register of shipping) || CSA || BV || DNV || GL
Ik Degree Of ProtectionIK03 IEC 50102
Ambient Air Temperature For Operation-25-70 ?C
StandardsEN/IEC 60947-5-1 || UL 508 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-5-1 || EN/IEC 60947-1 || EN/IEC 60947-5-4 || JIS C8201-1
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn 2-500 Hz)IEC 60068-2-6
Ip Degree Of ProtectionIP66 IEC 60529
Ambient Air Temperature For Storage-40-70 ?C
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Electrical Shock Protection Classclass I IEC 60536
Protective TreatmentTH

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDXD4PA24111 @ $200.00
