Zoro Select

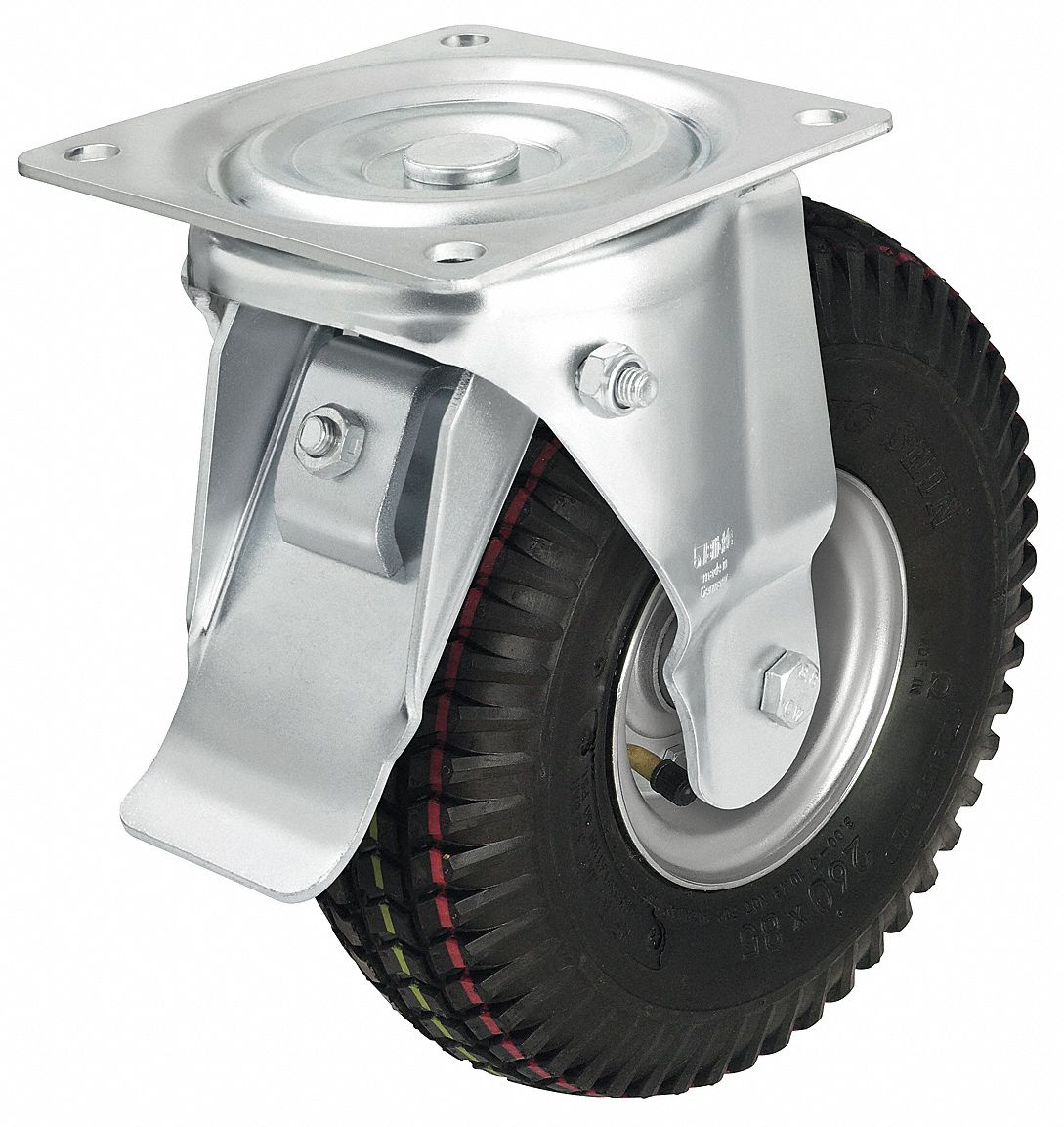

Zoro Select . L-P 267R-ST

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameZoro Select
DimensionUnitinch
GraingerSku22N205
UPCNone
UnitOfMeasureEA
Weight14.5
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginDE
height12.3
jsonUrlData924526ffbdad25e5923b
length15.8
moq, multiple, tierMinQty1, Number of Wheels1
MPNL-P 267R-ST
qtyInStock16
qtyInStockOverride-2
SKUG4568995
tierPrice1236.31
urlhttps://www.zoro.com/zoro-select-swivel-pneumatic-caster-10-14-in-550-lb-l-p-267r-st/i/G4568995/
width7
Caster Brake IncludedYes
Caster Load Rating RangeMedium Duty
Caster Sub-TypeSwivel
Caster Wheel/Tread MaterialRubber Pneumatic
Load Rating550 lb
Overall Height308 mm
Wheel Dia260 mm
Wheel Width85 mm
Plate Size6-7/8 x 6-7/8"
Inside Bolt Hole Spacing, Outside Bolt Hole Spacing140 mm x 140 mm
Caster Temp Range Available, Non-Marking, Includes Thread Guards, Extended Lead, ESD ConductiveNo
Tread, Tread ShapeZig-Zag
Caster Product GroupSwivel Caster With Brake
ItemSwivel Plate Caster With Brake
Tire Thickness2 1/2 in
Plate Caster Bolt Hole Pattern, Caster Plate Hole Pattern, Mounting Plate Bolt Hole PatternD
Tire Rim Dia5 in
Mounting Bolt DiaM14
Hub TypeCentered
Frame FinishZinc Plated
Hub ColorGray
Plate Thickness5/32"
Hub Material, Frame Material, Caster Frame MaterialSteel
Ply, Number of Mounting Holes4
Caster Mounting TypePlate
Caster Brake TypeTotal Lock Brake
Hub Width2-15/16 in
Caster Raceway, Swivel Raceway TypeDouble Ball
Caster Wheel Bearings, Wheel Bearing TypeRoller
IncludesStop-Top Total-Lock Brake
Replacement WheelMfr. No. P 267/20-75R
Tread ColorBlack
Core ColorSilver
Caster Temp Range-25 Degrees To 50 Degrees C
System of MeasurementMetric
StandardsRoHS, ICWM
ApplicationRetail, Industrial, Commercial
Mounting Plate Size6-7/8 in x 6-7/8 in
Wheel/Tread Hardness60 Shore A
Mounting Height12 1/8 in
Wheel/Tread Hardness RatingSoft
Swivel ConstructionKingpin
Load Rating Range-
Wheel/Tread MaterialRubber
Operating Temperature Range-20 Degrees to 120 Degrees F
Caster Plate Thickness4 mm
Caster Plate Size175 mm x 175 mm
Swivel Radius208 mm
Caster Swivel Lock TypeTotal-Lock
Resistant ToChemical Resistance To Many Aggressive Substances, Except Oils
Wheel Core MaterialPressed Steel
Caster Break TypeStop Top Brake (Total Lock)
Load Capacity250 kg
SeriesL Series
Country of Origin (subject to change)Germany

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG456899511611 @ $236.31
grainger.caWWG22N205111 @ $341.05
