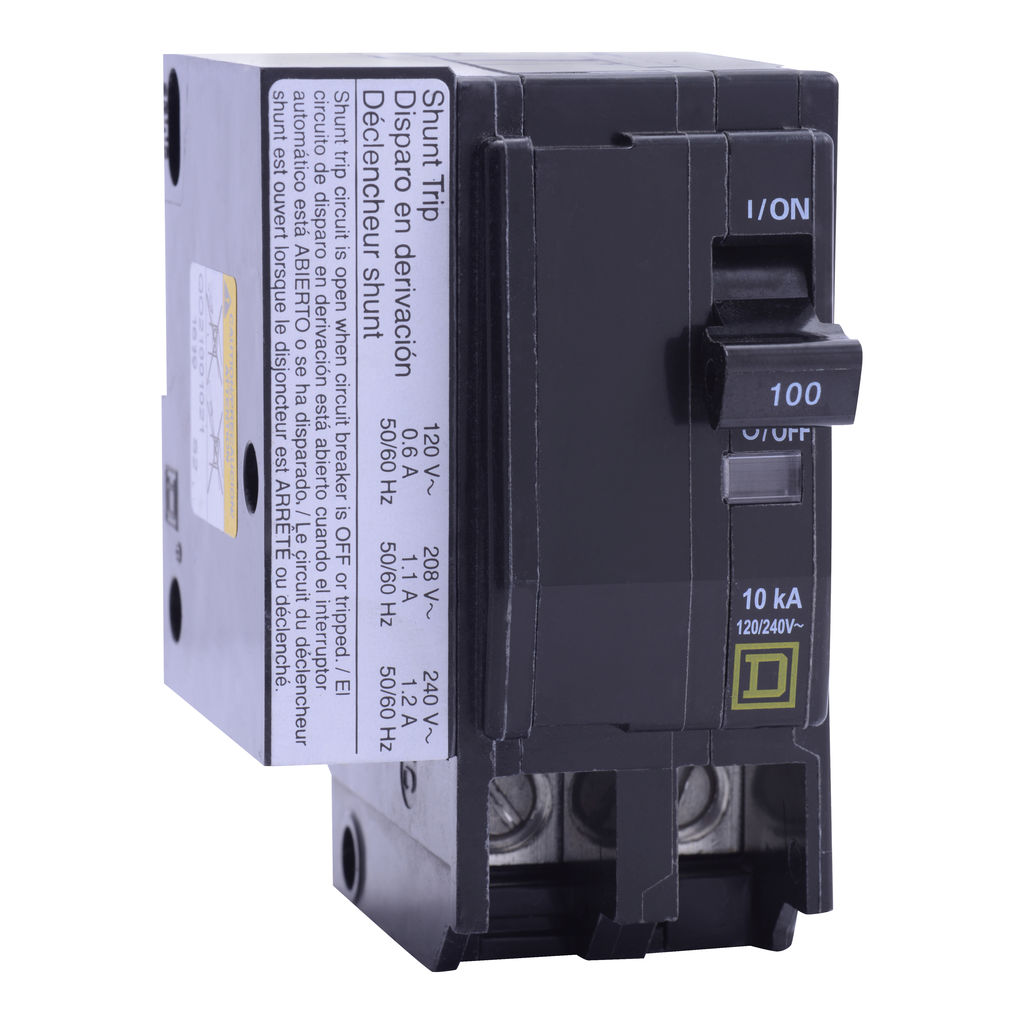

Mini circuit breaker, QO, 125A, 2 pole, 120/240VAC, 10kA, plug in mount, AC shunt | Mayer Electric

Mayer Electric Supply . QO21251021

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 125A, 2 pole, 120/240VAC, 10kA, plug in mount, AC shunt | Mayer Electric
UPC785901088189
Weight0.454
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height89.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-125A-2-pole-120-240-VAC-10-kA-plug-in-mount-AC-shunt-trip-785901088189
jsonUrlData2db0ba29f-8b4a-4e77-aabf-abd20062d612
length_AttribDepth
moq, multiple, tierMinQty11
MPNQO21251021
qtyInStock0
SKUSQDQO21251021
tierPrice1516.62
width57.0
width_AttribWidth
Circuit Breaker ApplicationHACR rated
Mounting Modeplug-in
Circuit Breaker Typestandard
Range Of ProductQO
Poles Description2P
Accessory / Separate Part Typeshunt trip 120/208/240 V AC
Electrical Connectionbox lugs
Line Rated Current125 A
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC || 120 V AC
Warranty18 months
Height89 mm
Breaking Capacity10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz
Tightening Torque4.6-4.6 N.m
Number Of Spaces Required3
Awg GaugeAWG 4...AWG 2/0 copper or aluminium
Width57 mm
Depth74 mm
Net Weight0.454 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingCadmium and cadmium compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Halogen Content PerformanceHalogen free product
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C
