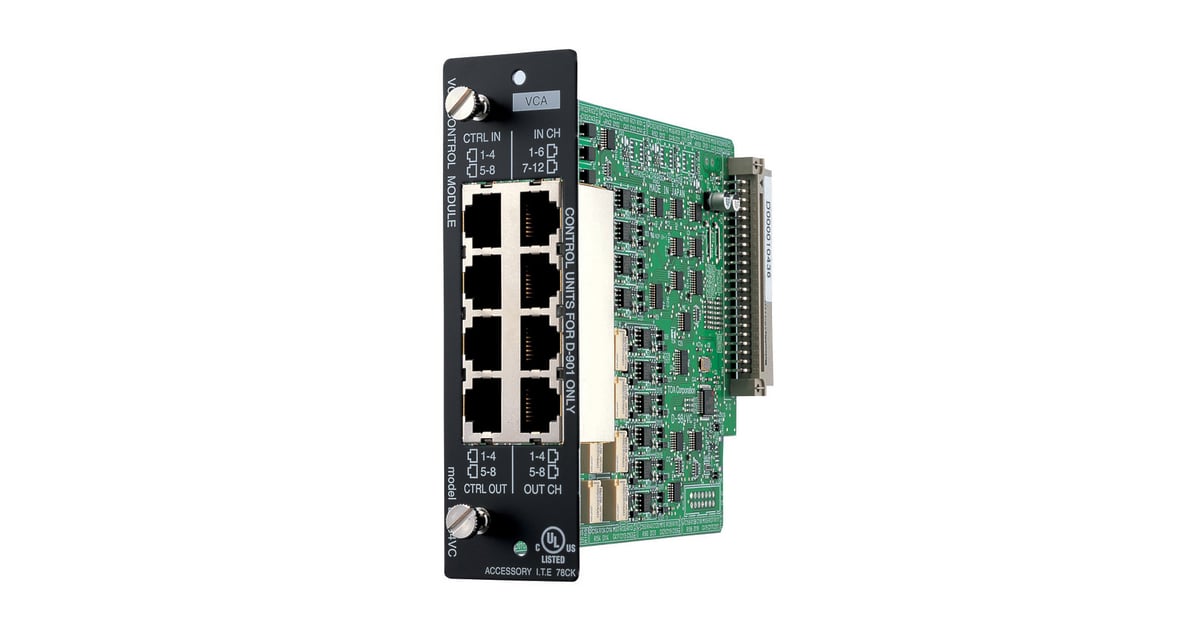

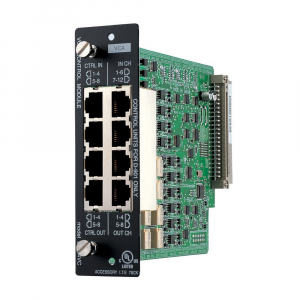

TOA D-984VC VCA Control Module; Designed for use with the D-901 Digital Mixer; 20 VCA Control Inputs, 8 Contact Inputs, and 8 Contact Outputs The D-984VC is a dedicated VCA control module designed for use with the D-901 Digital Mixer. It expands the D-901 Digital Mixer's functions by 20 VCA control inputs, 8 contact inputs, and 8 contact outputs. By the VCA controls from external equipment, this module permits the D-901's gains of 12 inputs and 8 outputs to be controlled. Key Features - Designed for use with the D-901 Digital Mixer - 20 VCA control inputs, 8 contact inputs, and 8 contact outputs - Permits the preset memory recall, input/output channel gains, stereo input selection, and channel ON/OFF to be controlled Specifications - VCA Control Input: +5 V, GND, Terminal 1 - 20 (12 Input channels, 8 output channels); RJ45 connector x 4; Control contents: Volume control of each input/output channel; Variable range: - dB to + 0 dB - Contact Input: COM + Terminal 1 - 8: Open voltage: 5 V DC, short-circuit current: 5 mA, RJ45 connector x 2 - Preset Memory Selection: Any preset memory can be recalled. Control method: No-voltage make of over 100 ms/No-voltage make single pulse of over 100 ms - Volume Control: Any input/output channel volume can be turned UP or DOWN. Control method: 1 step variation for no-voltage make single pulse of over 100ms, 1 step continuous operation for every 70ms for no-voltage make of over 100ms. Can be reset when at break. Variable Range: - dB to +10 dB - Channel: Any input/output channel can be turned ON and OFF. Control method: No-voltage make of over 100ms/ No-voltage make single pulse of over 100ms - Contact Output: COM + Terminal 1 - 8: No-voltage make contact, contact capacity: 24 V DC, 100 mA, RJ45 connector x 2 - Finish: Panel: Pre-coated steel plate, black, 30% gloss - Dimensions: 35 (W) x 119.5 (H) x 178.4 (D) mm - Weight: 170 g
