2BK30118 2BK30/2HB31 1 1/8 FHP SHEAV

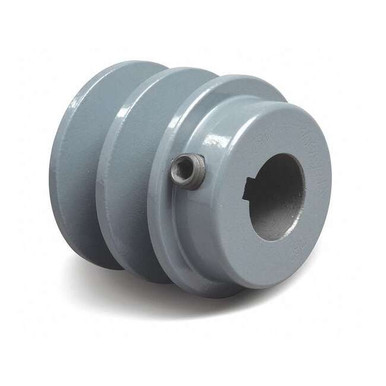

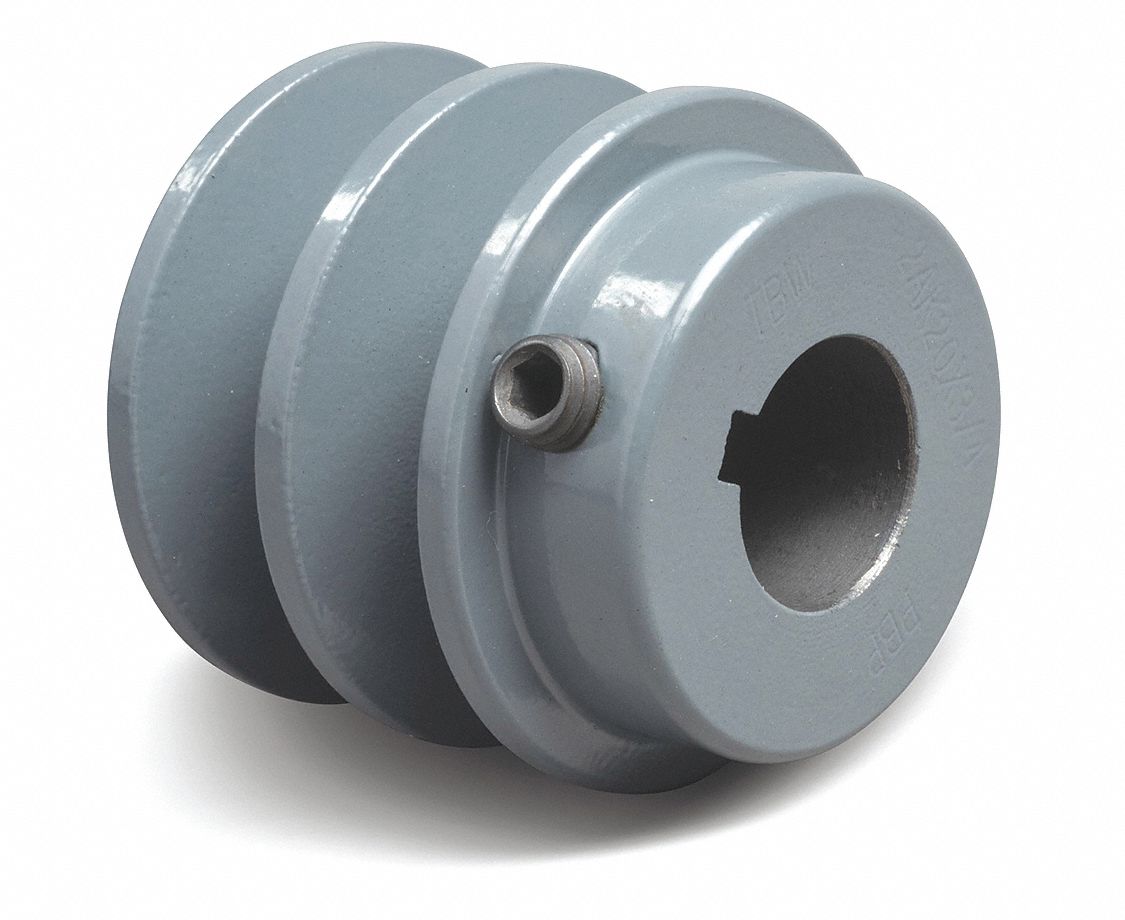

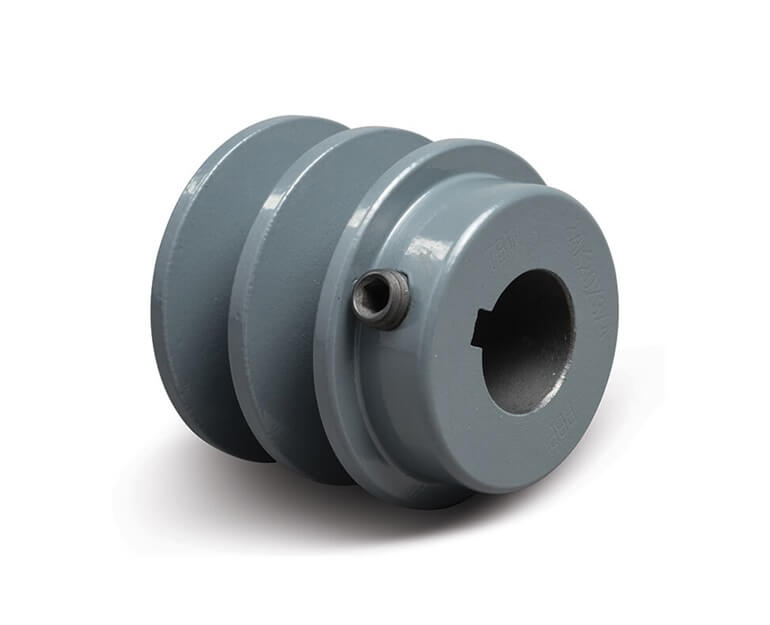

The T.B. Woods 2BK30118 FHP Bored-to-size V-Belt Sheave features a classical V-belt design suitable for use in many existing drive systems. Constructed from cast iron, this sheave offers resistance to wear and galling. It has a B belt or cross section and two grooves for use with multiple or banded belts. The sheave measures 1-1/8" in bore diameter and 3.15" in outside diameter, with a maximum operating speed of 7940 rpm.
2BK30118 2BK30/2HB31 1 1/8 FHP SHEAV
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | TB Woods |
|---|---|
| CategoryL1 | Sheaves |
| CategoryL2 | Finished Bore Sheaves |
| CategoryL3 | B/5L Section |
| Extra Product Name, snippet | 2BK30118 2BK30/2HB31 1 1/8 FHP SHEAV |
| moq, multiple, tierMinQty1 | 1 |
| MPN | 2BK30118 |
| qtyInStock | 0 |
| SKU | 346824 |
| tierPrice1 | 77.52 |
| Hub location, Hub location (in) | -0.47 |
| RPM upper limit, Max RPM | 7940 |
| Inside diameter (in), I D | 2.65 |
| Material type | CI |
| Pitch diameter | 3.21 |
| Outside diameter (in), O D | 3.15 |
| Component WR2 (lbs ft2) | 0.02 |
| Datum diameter | 2.8 |
| Groove cross section section | B |
| Belt section | B-5L-A-4L |
| Inertia WR? | 3 |
| Face width (in), Face width | 1.75 |
| Dimension | 0.47 |
| Bore type | Finished with keyway |
| Number of grooves | 2 |
| Bore-to-size keyseat | 1/4 in x 1/8 in |
| Bore-to-size bore diameter | 1.13 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| MRO Supply | 346824 | 1 | 1 | 1 @ $77.52 | |
| Grainger | 5UHJ4 | 1 | 1 | ||
| AE6PNJ | 1 | 1 | 1 @ $97.31 | ||
| Applied Industrial | 100784166 | 1 | 1 | ||
| sustainablesupply.com | C1694539 | 1 | -2 | 1 | 1 @ $40.97 |
| Guardian | 82224486 | 1 | 1 | ||
| WWG5UHJ4 | 1 | 1 | |||
 simsupply.com | ZO-G1450294 | 1 | 47 | 1 | 1 @ $49.82 |
 Zoro | G1450294 | 1 | 76 | 1 | 1 @ $37.05 |
 National Supply Network | 82224486 | 1 | -2 | 1 | 1 @ $42.25 |
