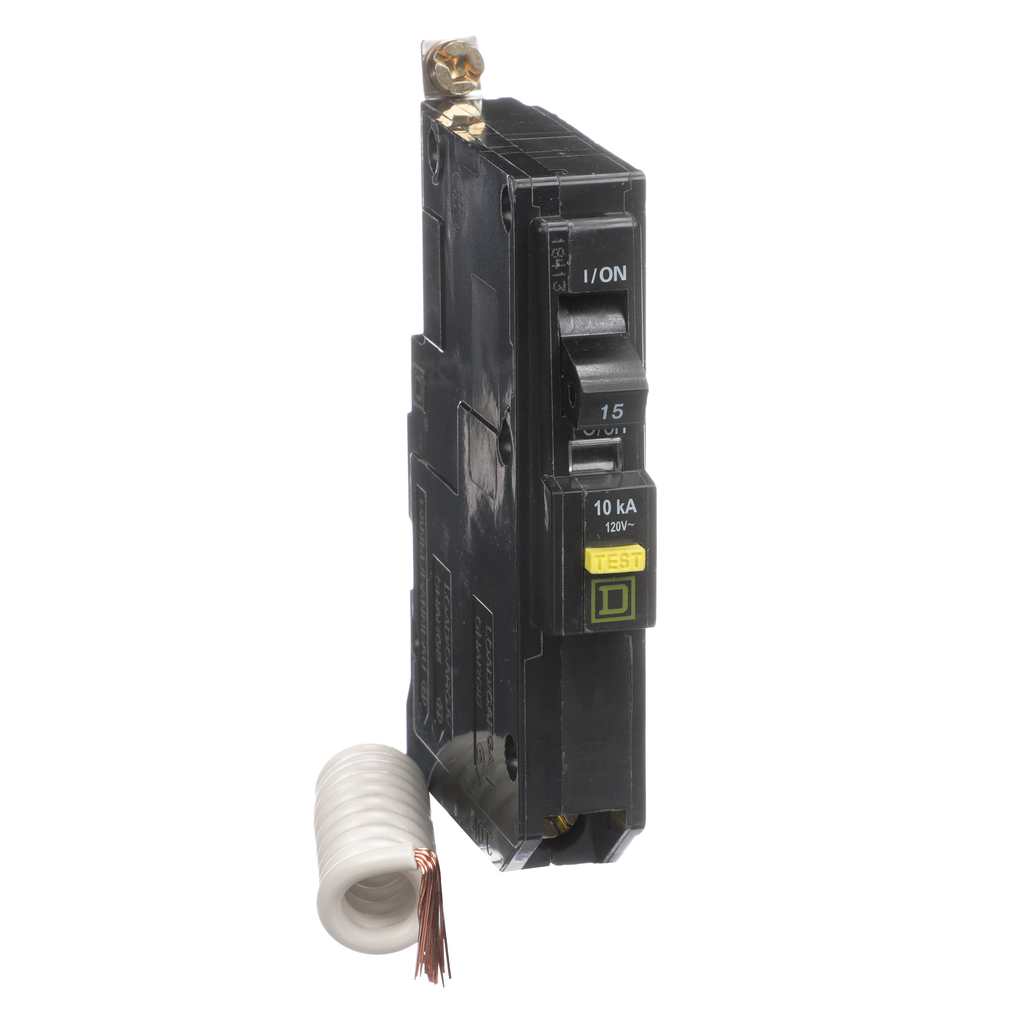

Mini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, 6mA grd fault A, pigtail, bolt on mount | Mayer Electric

Shop SQUARE D at Mayer. Mini circuit breaker, QO, 15A, 1 pole, 120 VAC, 10 kA, 6mA grd fault A, pigtail, bolt on mount

Mayer Electric Supply . QOB115GFI

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 15A, 1 pole, 120VAC, 10kA, 6mA grd fault A, pigtail, bolt on mount | Mayer Electric
UPC785901368700
Weight0.240
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height105.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-15A-1-pole-120-VAC-10-kA-6mA-grd-fault-A-pigtail-bolt-on-mount-785901368700
jsonUrlData281aec049-6ad0-4b2e-aad1-abb200c9de6f
keywordsSQUARE D, Mayer SQUARE D, 785901368700, QOB115GFI
length_AttribDepth
moq, multiple, tierMinQty1, Number Of Spaces Required1
MPNQOB115GFI
qtyInStock0
SKUSQDQOB115GFI
snippetShop SQUARE D at Mayer. Mini circuit breaker, QO, 15A, 1 pole, 120 VAC, 10 kA, 6mA grd fault A, pigtail, bolt on mount
tierPrice1237.39
width19.0
width_AttribWidth
Circuit Breaker Typeground fault protecting class A 6 mA
Range Of ProductQO
Product Or Component Typeminiature circuit-breaker
Circuit Breaker Applicationnot rated
Mounting Modebolt-on
Poles Description1P
Electrical Connectionpressure plate
Line Rated Current15 A
[Ue] Rated Operational Voltage120 V AC
Warranty18 months
Height105 mm
Tightening Torque4.6-4.6 N.m 2.5-10 mm? (AWG 16...AWG 14) || 4.6-4.6 N.m 4-20 mm? (AWG 12...AWG 4)
Net Weight0.240 kg
Breaking Capacity10 kA 120 V AC 50/60 Hz
Awg GaugeAWG 14...AWG 8 copper or aluminium
Width19 mm
Depth74 mm
Rohs Exemption Information, Mercury FreeYes
Environmental DisclosureENVPEP1406033
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNINGCancer and Reproductive Harm - www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI1406033
Eu Rohs DirectiveCompliant
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQOB115GFI111 @ $237.39
