DANFOSS . 222AK00110A

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDANFOSS
Extra Product NameSunSource | 222AK00110A DANFOSS Industrial Hydraulics | SunSource.com
jsonUrlDataf597848c-c8d6-41a1-8071-ae280008eb7c
keywordsAEC028R09ABA1C2400000C4A 222AK00110A
moq, multiple, tierMinQty11
MPN, SKU222AK00110A
qtyInStock, tierPrice10
snippet222AK00110A DANFOSS | Search our online catalog of Industrial Hydraulics. Start your quote online to connect with our team of technical experts for support.
ApplicationConstruction, Agriculture, Truck and Bus, Material Handling, Other Mobile
Auxiliary mounting[2-Bolt A] SAE Flange Series 82-2 with A 9 Tooth 16/32 Int Spline, Accepts 38.1 [1.50] Shaft Extension, with Cover Plate
Bearing life at rated pressure5850 hr

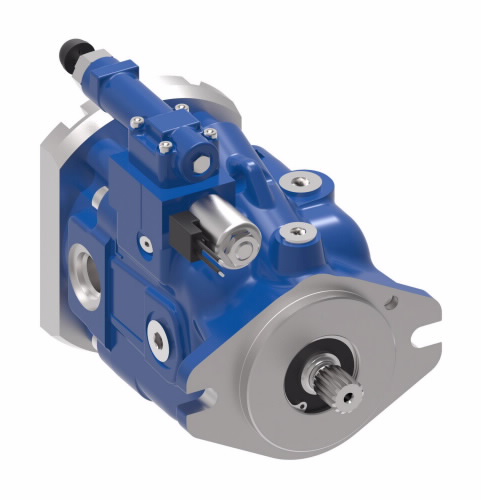

Code title220 Series Mobile Piston Pump
Continuous allowable case pressure19 psi
Control special features, Pump special features, Sub brandNone
Controller typePressure Compensator
Design code11First
Diagnostic pressure ports.4375-20 UNF-2B SAE O-Ring Ports - Suction and Pressure - Plugged
Displacement28 cubic centimetre per revolution
Drain port size location.875-14 UNF-2B O-Ring Port - Top (28Cc and 45Cc)
EccnEAR99
Fluid cleanliness21/18/13
Front mounting2 Bolt B
Housing materialCast Iron
Icc2Mobile - OC Piston Pumps
IdentificationMark Eaton Product Number and Full Model Code On Label
Inlet pressure64 psi
Input shaft13 Tooth 16/32 Spline, Shaft Extension 41.1 [1.62]
Input speed at 0 8 bar absolute2700 revolutions per minute
Input speed at 1 0 bar absolute3000 revolutions per minute
Input speed maximum3600 revolutions per minute
Input speed minimum500 revolutions per minute
Main port size locationSide Ports; Suction - 1.625-12 UN-2B SAE O-Ring Port; Pressure - 1.0625-12 UN-2B SAE O-Ring Port
Maximum case pressure45 psi
Maximum displacement optionStandard Displacement
Maximum flow compensator setting, Minimum flow compensator setting0 bar
Maximum input power39.2 kilowatt
Maximum input torque1106 inch pound (pound inch)
Maximum recommended operating viscosity40 centistokes
Minimum recommended operating viscosity16 centistokes
Model CodeAEC028R09ABA1C2400000C1AA1000B1A
Nominal pressure rating4060 psi
PaintBlack
Peak pressure rating5000 psi
Product height9.02
Product height uom, Product length uom, Product width uominch
Product length9.69
Product trade nameX20
Product weight35.90
Product weight uompound
Product width6.85
Shaft rotationRight
Shaft sealsFluorocarbon Rubber
Torque control setting0 inch pound (pound inch)
