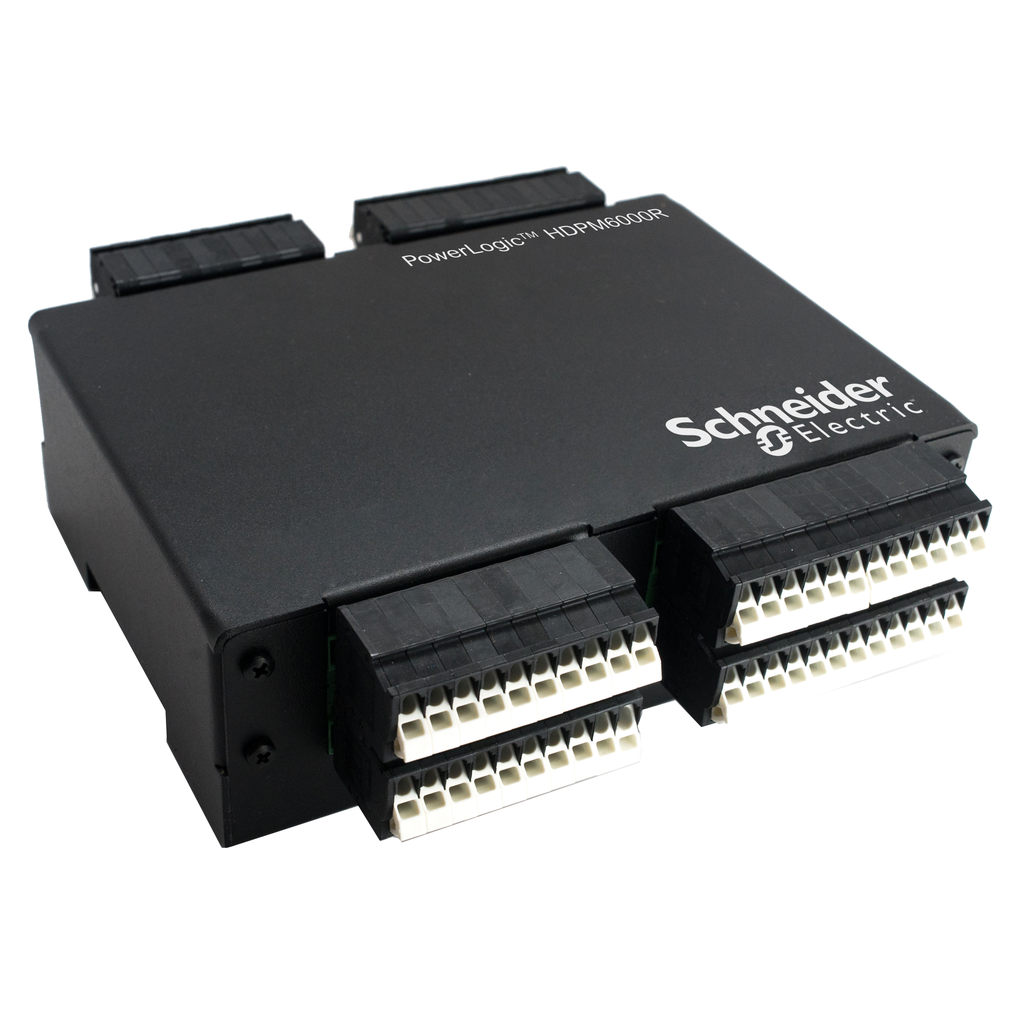

PowerLogic HDPM6000R retrofit module 42-circuits | Mayer Electric

SQUARE D . SQDMETSEHDPM6R42

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NamePowerLogic HDPM6000R retrofit module 42-circuits | Mayer Electric
UPC3606481986597
depth, length172.97
height64.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-PowerLogic-HDPM6000R-retrofit-module-42-circuits-SQDMETSEHDPM6R42
jsonUrlData229bf5e78-5d91-4e53-aef5-aeea005680ff
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDMETSEHDPM6R42
qtyInStock0
tierPrice12716.5
width173.48
width_AttribWidth
Energy Managementasset management || measurement || cost management
Power Quality Analysistotal harmonic distortion
Variantmodular version
Product Or Component Typemetering module
Product NamePowerLogic HDPM6000
Device Short NameHDPM6000R
RangePowerLogic
Communication Port Support2 RJ45 Ethernet
Sampling Rate128 samples/cycle
Memory Capacity8 GB
Communication Port ProtocolTCP/IP || Modbus || SNMP || BACnet
Analogue Input Typeexternal CT || Rogowski coil
Communication Of Datapower quality || reading of measurements || percentage of load
Measurement Categorycategory III
Noise Level0-65 dB
China Rohs RegulationX
Rohs Exemption Information, Mercury FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Height64 mm
Ambient Air Temperature For Operation-20-60 ?C
Mounting Modeclipped || by screws
Ambient Air Temperature For Storage-40-85 ?C
Relative Humidity5-90 %
StandardsIEC 62443
Mounting Support35 mm DIN rail || enclosure
Pollution Degree2
Product CertificationsUL Listed UL 508 A || CE || cURus
Width173.48 mm
Depth172.97 mm
Type Of Installationindoor

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDMETSEHDPM6R42111 @ $2716.50
