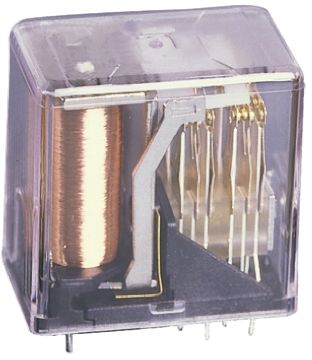

TE Connectivity 0-1393809-1 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 5A; miniature; socket
TE Connectivity 0-1393809-1 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 5A; miniature; socke
Gallery
Attributes
| Brand name, Manufacturer name, Manufacturer | TE Connectivity |
|---|---|
| CategoryL1 | Relays and Contactors |
| CategoryL2 | Relays |
| CategoryL3 | Electromagnetic Relays |
| CategoryL4 | Miniature Electromagnetic Relays |
| Extra Product Name | TE Connectivity 0-1393809-1 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 5A; miniature; socket |
| atoms, moq, multiple | 1 |
| jsonUrlData | 2fbef7cc7ecc7f58b0d1d8cf20d55e8b. |
| jsonUrlData2 | 640e1d2eafddec297a3c |
| keywords | TE Connectivity, 0-1393809-1, V23154D0721F104, Relays and Contactors, Relays, Electromagnetic Relays, Miniature Electromagnetic Relays |
| MPN | 0-1393809-1 |
| qtyInStock | 0 |
| SKU | V23154D0721F104 |
| snippet | TE Connectivity 0-1393809-1 | Relay: electromagnetic; DPDT; Ucoil: 24VDC; 5A; miniature; socke |
| Type of relay | electromagnetic |
| Contacts configuration | DPDT |
| Rated coil voltage | 24V DC |
| Contact current max | 5A |
| Relay variant | miniature |
| Mounting | socket |
| Coil resistance | 890? |
| Coil voltage min | 11V DC |
| Coil voltage max | 40V DC |
| Body dimensions | 30x30x19mm |
| Coil power consumption | 647mW |
| Operating temperature | -40...70?C |
| Relay series | Cradle N |
| Contact material | silver alloy |
| Leads | for soldering |
| Contact plating | gold-plated |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| TME | V23154D0721F104 | 1 | 1 | ||
| 715-0893 | 1 | 1 |
