Grundfos 96419715 CRN 32-8-2 A-G-G-V-HQQV 30HP 60 ODP - MROSupply.com

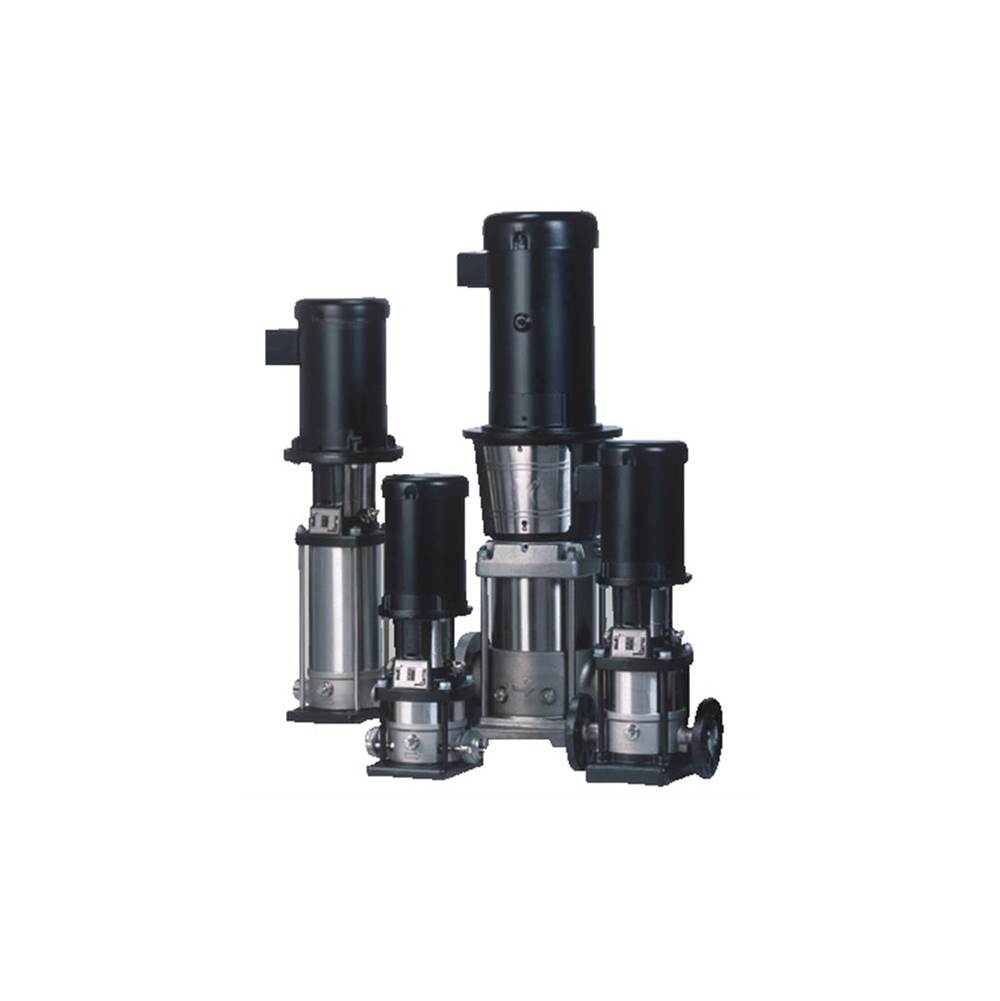

The 96419715 is produced by Grundfos and is described as a Grundfos 96419715 CRN 32-8-2 A-G-G-V-HQQV 30HP 60 ODP

Grundfos . 96419715

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerGrundfos
CategoryL1Pumps
CategoryL2Centrifugal Pumps
CategoryL3Chemical Resistant
DimensionUnitmm
Extra Product NameGrundfos 96419715 CRN 32-8-2 A-G-G-V-HQQV 30HP 60 ODP - MROSupply.com
diameter, length, width118.4
length_Attrib, width_AttribActual impeller diameter
moq, multiple, tierMinQty11
MPN, Product no96419715
qtyInStock0
SKU5026074
snippetThe 96419715 is produced by Grundfos and is described as a Grundfos 96419715 CRN 32-8-2 A-G-G-V-HQQV 30HP 60 ODP
tierPrice114230.67
Max ambient temperature (F)104
Temperature range (F)-4 - 194
Density (lb/ftBi)62.29
Rated voltage3 x 230/460 V
HP, Maximum operating pressure (bar)30
Max pressure (psi)435
Pipe connection, Size of outlet connection, Size of inlet connection2 1/2 in
Stages, Impellers8
Flange size, Flange size for motor284TC
Rate flow (gpm)159
Selected liquid temperature (?C)20
Density998.2 kg/m?
Rated speed3530 RPM
Power (P2) required by pump, Rated power - P222 kW
Mains frequency60 Hz
Pump version, Material codeA
Pumped liquidWater
Product nameCRN 32-8-2 A-G-A-V-HQQV
Pressure rating for connectionPN 40
Rated head170 m
IE Efficiency classIE3 / NEMA Premium
Insulation class (IEC 85)F
IE efficiencyIE3 93,6%
Temperature (?C)30 bar / -20
Motor efficiency at full load91.0 %
Motor no84Z00H22
ApprovalsCURUS
Rated flow36 m?/h
Full load SF current80.1/40.1 A
Motor standardNEMA
Support bearingGraflon
Base, ImpellerStainless steel
Shaft seal arrangementSingle
Sales regionNamreg
Type of connectionANSI
Low NPSHN
Flange rating inlet300 lb
Connect codeG
Curve tolerance2012 3B
Max pressure at stated temp (?C)30 bar / 90
Pump orientationVertical
Number of reduced-diameter impellers, Number of poles2
Service factor1.15
ModelB
DOE pump energy index CL, Cos phi - power factor0.87
Pump speed on which pump data are based3541 RPM
Maximum head215 m
BearingSIC
Liquid temperature range (?C)-20 - 90
Code for shaft sealHQQV
CoolingODP
Code for rubberV
Maximum ambient temperature (?C)40
Rated current70/35 A
KVA codeH
Actual impeller diameter118.4 mm
Motor typeBALDOR

Distributor offers

SellerSKUMOQIn stockMultiplePrices
MRO Supply5026074111 @ $14230.67
pumpproducts.com964197151(Usually Ships 7-10 Days)11 @ $21654.41
Edge Supply964197151-211 @ $19704.00
