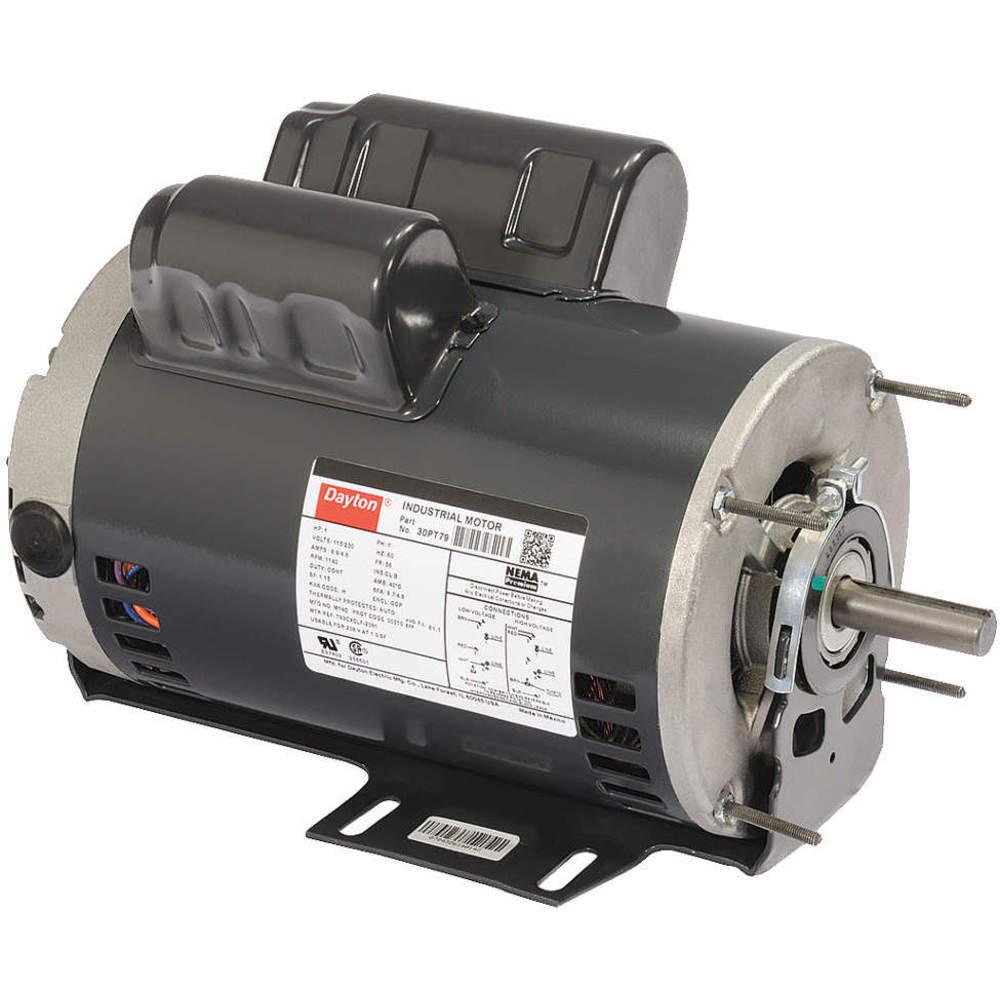

Capacitor-Start/Run General Purpose Motor, 1 HP, 115/230V AC Voltage, 56 Frame, 1,140 Nameplate RPM

General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 1 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115/230V AC, Full Load Amps 8.9/4.6, 56 Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position Horizontal, Inverter Rated No, Motor Shaft Design Keyed

Dayton . 30PT79

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
CategoryId, CategoryIdL34731
CategoryIdL138
CategoryIdL29913
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3General Purpose AC Motors
CategoryL4Capacitor Start AC Motors
DimensionUnitinch
GraingerSku, MPN30PT79
Extra Product NameCapacitor-Start/Run General Purpose Motor, 1 HP, 115/230V AC Voltage, 56 Frame, 1,140 Nameplate RPM
UPC190735248669
UnitOfMeasureEA
Voltage115/230V AC
Weight37.49
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
cali_prop65_warnmsgscenario7
countryOfOriginMX
height10.88
jsonUrlData924526ffbdad25e5923b
length18.5
moq, multiple, qtyInStock, qtyInStockOverride, tierMinQty1, HP, No of Speeds1
qtySourceqtyInStockOverride
SKUG9090681
tierPrice1687.99
urlhttps://www.zoro.com/dayton-capacitor-startrun-general-purpose-motor-1-hp-115230v-ac-voltage-56-frame-1-140-nameplate-rpm-30pt79/i/G9090681/
width10.5
Shaft Dia5/8 in
Shaft Length1 7/8 in
Length Less Shaft10 3/8 in
Manufacturers Warranty Length1 yr
Overall Length13 5/16 in
ItemGeneral Purpose Motor
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeCradle Base
RPM Range1,101-1,200
Frame56
Motor Thermal ProtectionAuto
Motor Service Factor1.15
Voltage Compatibility115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor ApplicationGeneral Application
Nameplate RPM1,140
Motor Frame MaterialRolled Steel
Motor Mounting PositionHorizontal
Motor Shaft DesignKeyed
Motor Shaft RotationCW/CCW
Motor DesignCapacitor-Start/Run
StandardsCSA (258501), UL (E47479)

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG90906811111 @ $687.99
Grainger30PT7911
Raptor SuppliesAF9QFE111 @ $1048.34
AmazonTPB071K52M78111 @ $536.05
AmazonUNKB071K52M781-211 @ $536.05
sustainablesupply.comC15541351Add to Cart11 @ $917.00
emotorpro.com30PT791-211 @ $865.18
simsupply.comZO-G9090681111 @ $814.24
grainger.caWWG30PT7911
