Marathon Motors

http://www.sustainablesupply.com/cdn/shop/products/44N994_AS01_1024x.jpg

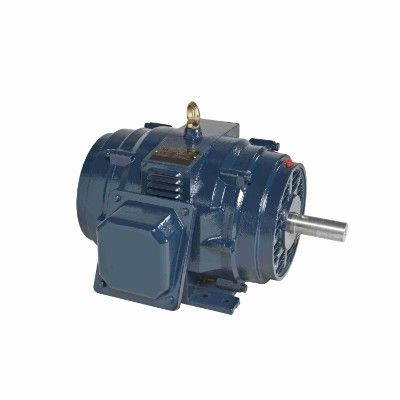

Marathon Motors . 405TTDCD6081

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameMarathon Motors
DimensionUnitinch
GraingerSku44N994
UPC, Motor Thermal ProtectionNone
UnitOfMeasureEA
Voltage230/460V AC
Weight1333
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
extendedLead26
extendedQty-2
height28.66
jsonUrlData924526ffbdad25e5923b
length44.88
moq, multiple, tierMinQty1, No of Speeds1
MPN405TTDCD6081
perItemShipping650.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG9877524
tierPrice17617.21
urlhttps://www.zoro.com/marathon-motors-3-phase-general-purpose-motor-75-hp-405t-frame-230460v-ac-voltage-1-188-nameplate-rpm-405ttdcd6081/i/G9877524/
width39.25
ItemGeneral Purpose Motor
Motor Enclosure DesignOpen Dripproof
Motor Mounting TypeRigid Base
HP75
RPM Range1,101-1,200
Frame405T
Motor Service Factor1.15
Voltage Compatibility200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor ApplicationGeneral Application
Motor Design3-Phase
Nameplate RPM1,188
Motor Shaft RotationCW/CCW
Motor Mounting PositionHorizontal
Motor Frame Material, Frame MaterialCast Iron
Motor Shaft DesignKeyed
StandardsCSA Certified, UL Recognized
IncludesConduit Box
Shaft Length7 1/4 in
Inverter RatedYes
Hz60
Manufacturers Warranty Length1 yr
Shaft Dia2 7/8 in
PhaseThree
Nominal Efficiency94.5 %
Ins ClassF
Duty, Duty CycleContinuous
CC NumberCC003A
RPM Group1101-1200
Max Ambient Temp40 Degrees C
Motor Efficiency GroupNEMA Premium Efficient
Full Load Amps174.0/87.0
Overall Length38 3/4 in
Length Less Shaft31 1/2 in
Motor BearingsBall
Green Certification or Other RecognitionNEMA Premium(R) Rated
NEMA DesignB
Usable @ 208V, Usable @ 200V, Capacitor RequiredNo
Country of Origin (subject to change)Mexico

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG9877524111 @ $7617.21
sustainablesupply.comC27915081Add to Cart11 @ $8784.09
motorsandcontrol.comGT0044A111 @ $0.00
pumpproducts.com405TTDCD60811-211 @ $12603.58
Galco405TTDCD6081-MARA111 @ $6008.80
