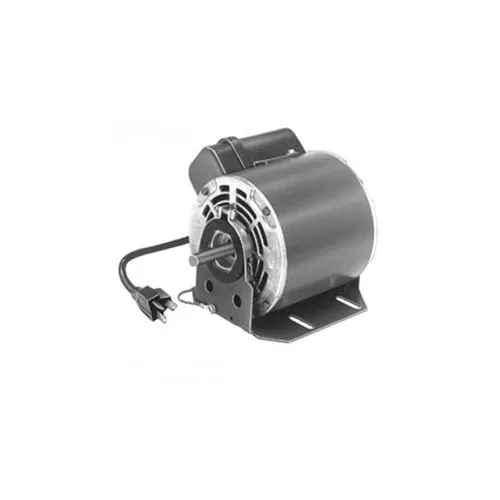

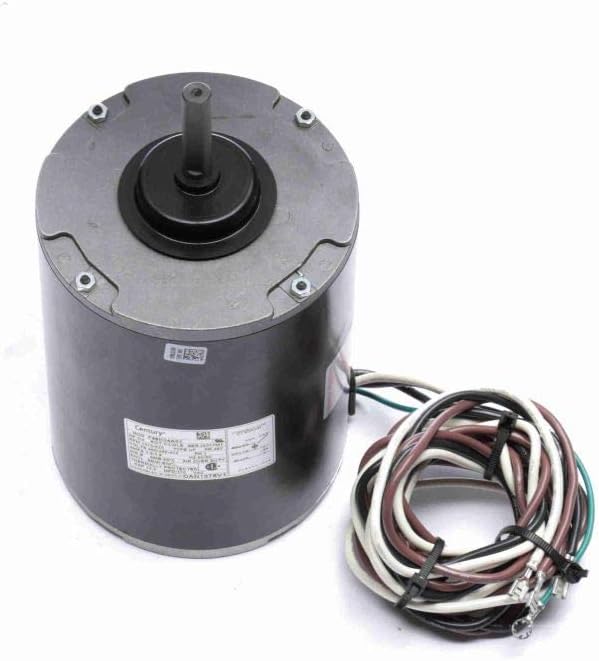

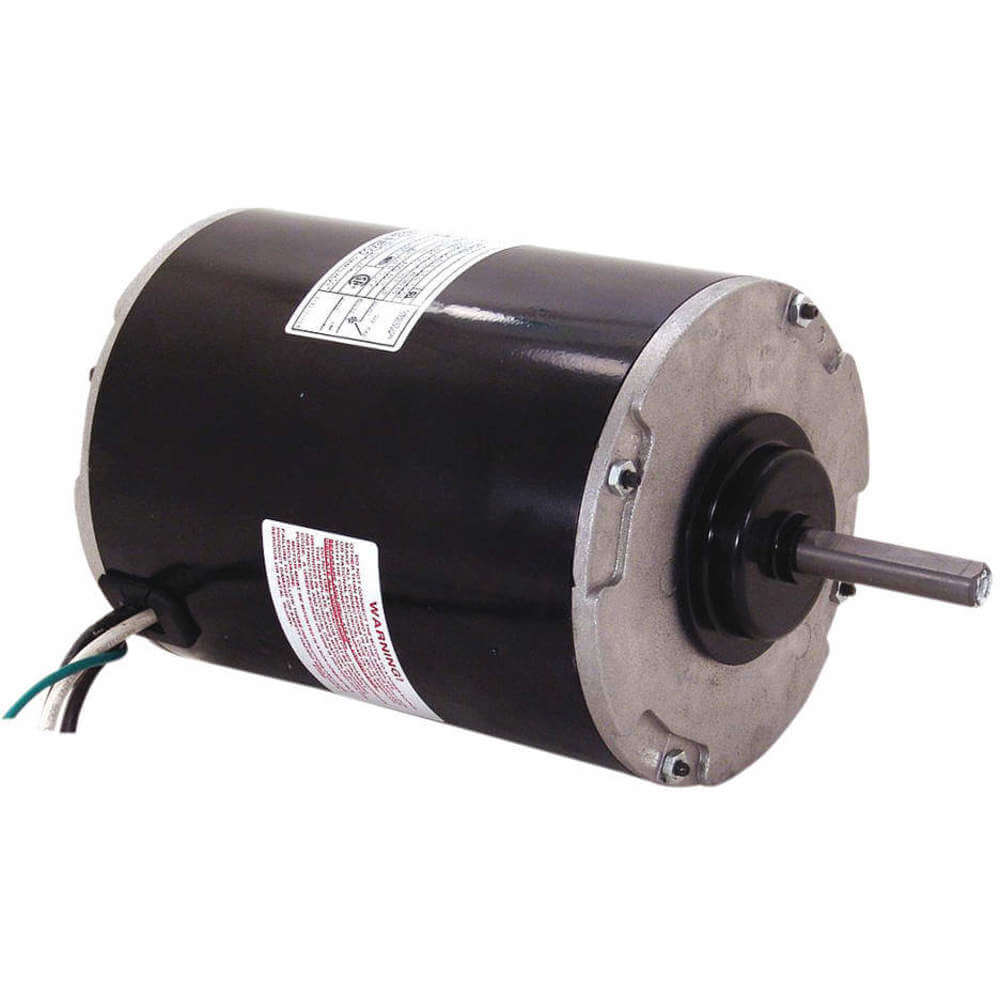

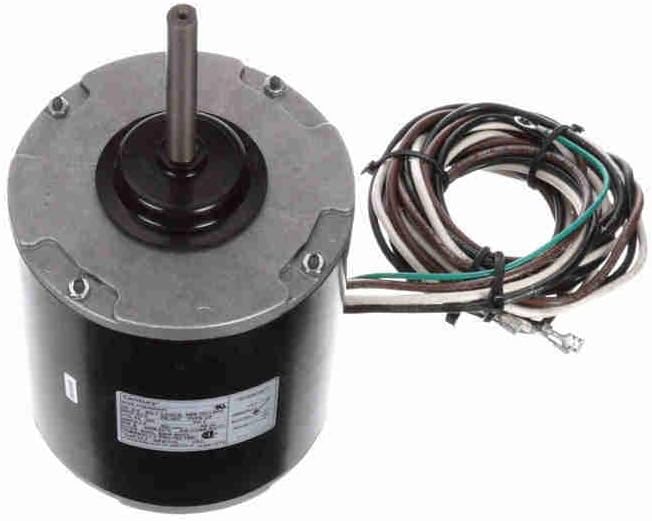

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 460V AC, Full Load Amps 2.6, 48Y Frame, OEM Replacement Brand Aaon, Replacement For 1464, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band, Motor Mounting Position Vertical Shaft Up

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 460V AC, Full Load Amps 2.6, 48Y Frame, OEM Replacement Brand Aaon, Replacement For 1464, Usable @ 208V No, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air-Over, Motor Mounting Type Band, Motor Mounting Position Vertical Shaft Up

Century . OAN1076

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerCentury
CategoryId, CategoryIdL36493
CategoryIdL138
CategoryIdL29918
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3HVAC Motors
CategoryL4OEM Replacement Motors
DimensionUnitinch
GraingerSku12N950
UPCNone
UnitOfMeasureEA
Voltage460V
Weight21
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginMX
height7.6
jsonUrlData924526ffbdad25e5923b
length12.6
moq, multiple, tierMinQty1, No of Speeds, Number of Shafts, Phase1
MPNOAN1076
qtyInStock29
qtyInStockOverride-2
SKUG4019093
tierPrice1405.99
urlhttps://www.zoro.com/century-motor-34-hp-oem-replacement-brand-aaon-replacement-for-1464-oan1076/i/G4019093/
width7.5
Shaft Dia1/2"
Shaft Length3"
Length Less Shaft7 in
Body Dia5.7"
Manufacturers Warranty Length1 yr.
Overall Length9.99"
Frame48Y
HP3/4 HP
ItemMotor
Motor ApplicationOEM Replacement
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignSemi Enclosed
Motor Mounting TypeRound Belly Band
Motor Shaft RotationCounterclockwise Lead End
Motor Sub ApplicationCondenser Fan Motor
Motor Thermal ProtectionAutomatic
Nameplate RPM1075 rpm
OEM Replacement BrandAaon
RPM Range1001-1100
Motor BearingsBall
