| Brand name, Manufacturer name, Manufacturer, Extra Product Name | Miller Electric |
|---|
| DimensionUnit | inch |
|---|
| UPC | 715959629683 |
|---|
| UnitOfMeasure | EA |
|---|
| Voltage, Input Voltage | 120 to 480V AC |
|---|
| Weight | 237 |
|---|
| WeightUnit | lbs |
|---|
| cali_prop65_cancercausechem, cali_prop65_reproharmcausechem | Lead |
|---|
| cali_prop65_orglabel, cali_prop65_whtlabel | True |
|---|
| cali_prop65_warnmsgscenario | 4 |
|---|
| countryOfOrigin | US |
|---|
| extendedLead | 40 |
|---|
| extendedQty | -2 |
|---|
| extraShipping | 200.00 |
|---|
| height | 50 |
|---|
| jsonUrlData | 924526ffbdad25e5923b |
|---|
| length | 44 |
|---|
| moq, multiple, tierMinQty1, Welder Min Output Amps | 1 |
|---|
| MPN | 951880 |
|---|
| qtyInStock | 0 |
|---|
| qtyInStockOverride | Drop Ship |
|---|
| SKU | G2154166 |
|---|
| tierPrice1 | 11263.09 |
|---|
| url | https://www.zoro.com/miller-electric-tig-welder-dynasty-210-series-120-to-480v-ac-210-max-output-amps-210a-18v-rated-output-951880/i/G2154166/ |
|---|
| width | 20 |
|---|
| Promotion Restriction | Not eligible for promotion |
|---|
| Welder Industrial Class | Medium |
|---|
| Item | TIG Welder |
|---|
| Welding Processes | Pulsed TIG, Stick, TIG |
|---|
| Mild Steel - Material Thickness | 0.004 in to 1/4 in |
|---|
| Aluminum - Material Thickness | 0.012 in to 1/4 in |
|---|
| Rated Output | 210A @ 18V |
|---|
| Welder Max Output Amps | 210 |
|---|
| Welder Duty Cycle | 60 % |
|---|
| Series | Dynasty 210 |
|---|
| Input (Amps) | 29/3.2 |
|---|
| Overall Depth | 41 1/2 in |
|---|
| Overall Height | 33 1/2 in |
|---|
| Welded Material | Aluminum, Mild Steel, Stainless Steel |
|---|
| Overall Width | 19 1/2 in |
|---|
| Features | Blue Lightning(TM) HF, Cooler Power Supply, Cooler-On-Demand(TM), Fan-On-Demand(TM), Hot Start(TM), Pro-Set(TM), Wireless Foot Control |
|---|
| Welder Input Phase | 1 or 3 |
|---|
| Polarity | AC/DC |
|---|
| Application | Aerospace, Aluminum Ship Repair, Anodized Aluminum Fabrication, Heavy Fabrication, Pipe and Tube Fabrication, Precision Fabrication |
|---|
| Power Source Weight | 47 lb |
|---|
| Welder Input Hz | 50/60 |
|---|
| Amperage Range | 5 A to 210 A |
|---|
| TIG Welding Output @ Duty Cycle | 125 A @ 15 V, 60%, 210 A @ 18.4 V, 60% |
|---|
| Pulse Frequency | 0.1 to 500 pulses/second |
|---|

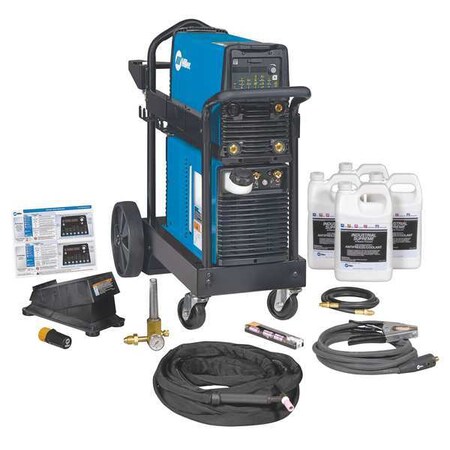

| Welder Kit Type | TIG Package w/Wireless Foot Control & Water Cooler |
|---|
| Stick Welding Output @ Duty Cycle | 160 A @ 26.4 V, 60%, 90 A @ 23.6 V, 60% |
|---|
| TIG Welding Minimum Output Current | 1 A |
|---|
| Remote Connection Type | 14-Pin (Miller) |
|---|
| Power Cord Included | Yes |
|---|
| TIG Welding Maximum Output Current, Stick Welding Maximum Output Current | 210 A |
|---|
| Remote Control | Wireless Foot Control Included |
|---|
| Rated Output at Duty Cycle (TIG) | 125 A @ 60%, 210 A @ 60% |
|---|
| Open Circuit Voltage | 80V DC |
|---|
| Max Input Current | 17 A @ 208V (Three-Phase), 29 A @ 208V (Single-Phase) |
|---|
| Color | Blue |
|---|
| Welding Mode | CC |
|---|
| TIG Arc Start Feature | High Frequency Start, Lift Arc Start |
|---|
| For Minimum Material Thickness | 0.002 in (Steel), 0.012 in (Aluminum) |
|---|
| Power Cord Length | 8 ft |
|---|
| Plug Type | Bare Leads |
|---|
| Stick Welding Minimum Output Current | 5 A |
|---|
| Max Amperage Range (TIG) | 150 A - 300 A |
|---|
| For Maximum Material Thickness | 1/4 in (Aluminum), 1/4 in (Steel) |
|---|
| Input Voltage (Nominal) | 480V, 240V, 208V, 400V, 120V |
|---|
| For Material Type | Aluminum, Specialty Metals, Stainless Steel, Steel |
|---|
| Kit Includes | TIG Torch, Coolant, Water Cooler, Running Gear, Wireless Foot Control |
|---|
| Input Frequency | 50/60 Hz |
|---|
| Model | 951669 |
|---|
| Country of Origin (subject to change) | United States |
|---|
