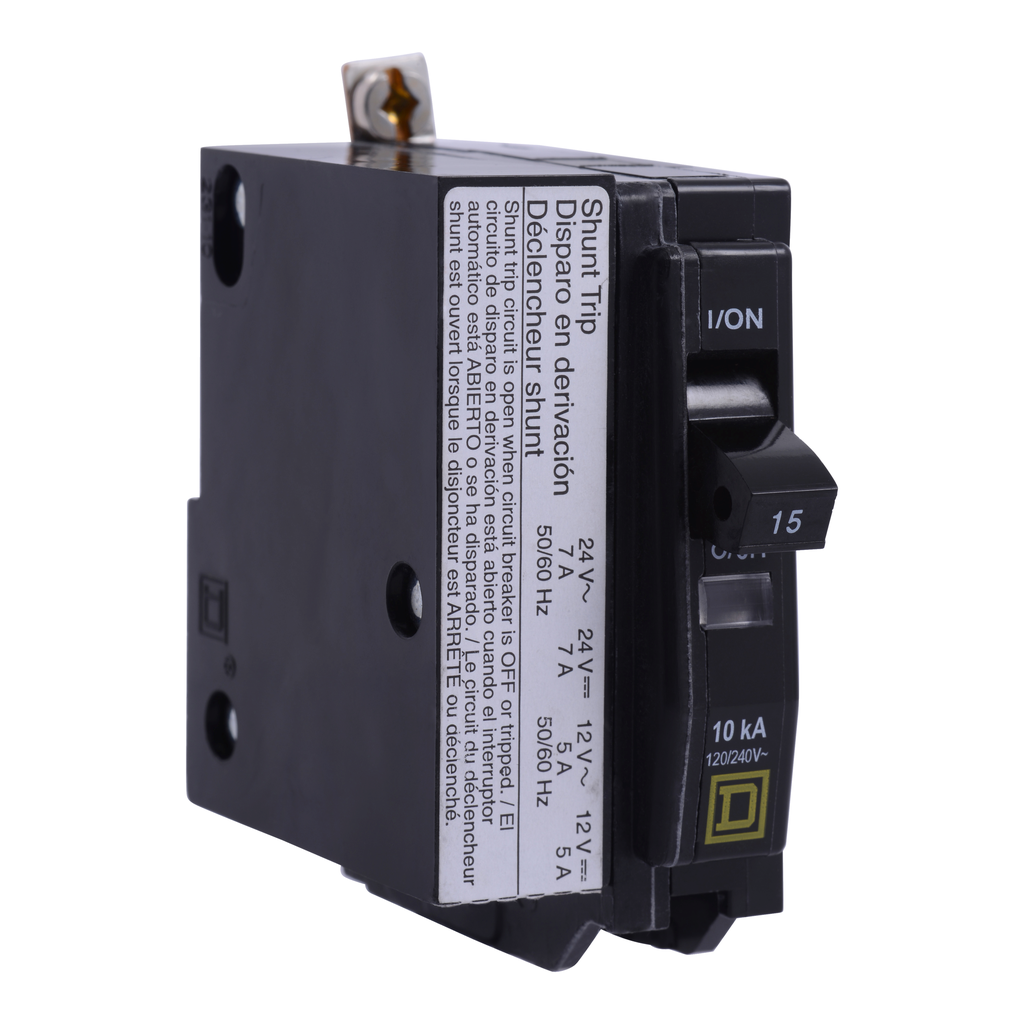

Mini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, bolt on mount, AC/DC shunt | Mayer Electric

SQUARE D . SQDQOB1201044

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameMini circuit breaker, QO, 20A, 1 pole, 120/240VAC, 10kA, bolt on mount, AC/DC shunt | Mayer Electric
UPC3606486146392
Weight0.136
WeightUnitkg
Weight_AttribNet Weight
depth, length74.0
height76.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-Mini-circuit-breaker-QO-20A-1-pole-120-240VAC-10kA-bolt-on-mount-AC-DC-shunt-SQDQOB1201044
jsonUrlData25558159c-45c2-4103-85ae-aeea005764ae
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDQOB1201044
qtyInStock0
tierPrice1208.98
width38.0
width_AttribWidth
Circuit Breaker ApplicationHACR and Switching Duty rated
Mounting Modebolt-on
Circuit Breaker Typestandard
Range Of ProductQO
Poles Description1P
Accessory / Separate Part Typeshunt trip 12/24 V AC/DC
Electrical Connectionpressure plate
Line Rated Current20 A
Product Or Component Typeminiature circuit-breaker
[Ue] Rated Operational Voltage120/240 V AC || 120 V AC || 48 V DC
Height76 mm
Breaking Capacity10 kA 120/240 V AC 50/60 Hz || 10 kA 120 V AC 50/60 Hz || 5 kA 48 V DC
Tightening Torque5-5 N.m 10-25 mm? (AWG 8...AWG 2)
Number Of Spaces Required2
Awg GaugeAWG 14...AWG 8 copper or aluminium
Width38 mm
Depth74 mm
Net Weight0.136 kg
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information, Mercury Free, Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingLead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Product CertificationsUL Listed || CSA
Ambient Air Temperature For Operation40 ?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDQOB1201044111 @ $208.98
