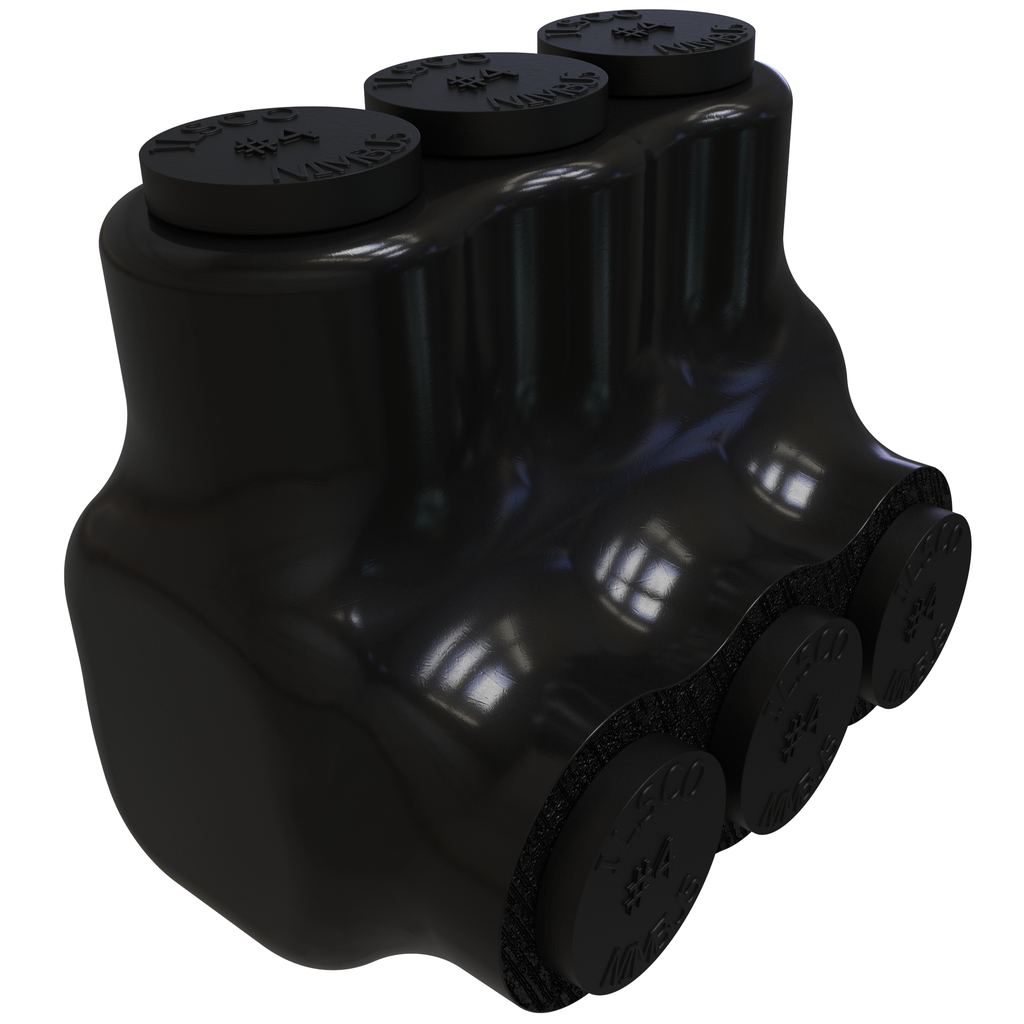

Nimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 4-14, 3 Ports, Single Sided Entry, Tin Plated, UL, CSA | Mayer Electric

Mayer Electric Supply . PBTS-3-4

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerMayer Electric Supply
DimensionUnitinch
Extra Product NameNimbus Insulated Aluminum Multi-Tap Connector, Conductor Range 4-14, 3 Ports, Single Sided Entry, Tin Plated, UL, CSA | Mayer Electric
UPC783669079005
Weight0.099
WeightUnitlbs
Weight_AttribWeight
color, Cap Color Main, Cap Color Tap, ColorBlack
height0.054291338582677165
height_AttribHeight
jsonUrlData/Product/ILSCO-Nimbus-Insulated-Aluminum-Multi-Tap-Connector-Conductor-Range-4-14-3-Ports-Single-Sided-Entry-Tin-Plated-UL-CSA-783669079005
jsonUrlData2ab889fe8-8b4a-4022-b54b-abb200c8edef
length1.626
length_AttribLength
moq, multiple, tierMinQty1, Number of Poles, Number of Wire Binding Screws per Port, Bag Quantity1
MPNPBTS-3-4
qtyInStock0
SKUILSPBTS34
tierPrice144.36
width0.04937007874015748
width_AttribWidth
Height1.379 in | 35.0266 mm
Length1.626 in
Width1.254 in | 31.8516 mm
ConnectionMechanical
Contains DE-OX?, Dual RatedYes
Number of Conductors, Number of Ports / Wireways, Number of Usable Ports, Number of Usable Taps3
Replacement Part(s)PLUG-4
Drive Size Main1/8
Drive Type MainInternal Hex
Height BX (IN)2.75
Height (mm)35.0266
Max Insulation OD (IN)0.317
Max Insulation OD (mm)8.0518
Weight BX (LB)1.3241
Width BX (IN)4
Width (mm)31.8516
Conductor TypeStranded, Solid
Conductor MaterialAluminum, Copper
Connector FinishTin
InsulationPlastisol
MaterialAluminum
Wire Binding Hardware FinishZinc Clear Trivalent Chromate
Wire Binding Hardware MaterialSteel
Wire Binding Screw Size1/4
Wire Binding Torque10 - 18 AWG = 20, 8 AWG = 25, 4 - 6 AWG = 35, 2 AWG = 40
Conductor Range AL Stranded (Primary, run, main, line), Conductor Range CU Stranded (Primary, run, main, line)4 Str - 14 Str
Conductor Range CU Solid (Primary, run, main, line), Conductor Range AL Solid (Primary, run, main, line)10 Sol - 14 Sol
Voltage Rating600 V
CSA File NumberLR-29601
CSA StandardC22.2 No. 65-03
Prop65 Compliance : WARNINGCancer and Reproductive Harm - www.P65warnings.ca.gov
UL Control Number453G
UL / CULUS SpecificationUL 486A/B Listed
UL File NumberE6207
Carton Quantity DescriptionSTD PACK QTY 12
NEMA CodeS-588-4
UPC Code78366907900
Environmental ConditionsCold temperature rated to -45?C
Flammability RatingInsulation rated per UL 94
Temperature Rating90?C

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comILSPBTS34111 @ $44.36
