D-5 is available from Zoro, Raptor Supplies, Zoro, Raptor Supplies, sustainablesupply.com. See pricing comparison above.

What is the price of D-5?

Pricing ranges from $34.16 to $151.57 depending on quantity and distributor.

Yes, D-5 is currently in stock at multiple distributors with immediate availability.

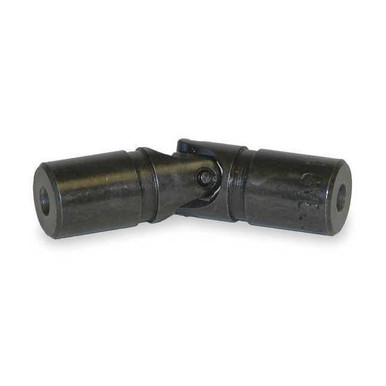

Universal Joint, Coupling Size D-5, Overall Length 3 in, Maximum Bore Diameter 11/16 in, Maximum Operating Angle 25 Degrees , Yoke Length 1 1/2 in, Boot Material Not Applicable, Bore Diameter Not Applicable, Number of Joints Single, Joint Diameter 7/8 in, Maximum Speed 1,750 RPM, U-Joint Material Carbon Steel, Joint Type Pin & Block, Booted No, Outside Diameter 7/8 in, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore Not Applicable, Break Torque 1,176 in-lb

Name: Universal Joint, Coupling Size D-5, Overall Length 3 in, Maximum Bore Diameter 11/16 in, Maximum Operating Angle 25 Degrees , Yoke Length 1 1/2 in, Boot Material Not Applicable, Bore Diameter Not Applicable, Number of Joints Single, Joint Diameter 7/8 in, Maximum Speed 1,750 RPM, U-Joint Material Carbon Steel, Joint Type Pin & Block, Booted No, Outside Diameter 7/8 in, Keyway Depth Not Applicable, Keyway Width Not Applicable, Length through Bore Not Applicable, Break Torque 1,176 in-lb
Brand: Lovejoy
Price: 64.89 USD
Availability: OutOfStock

Lovejoy . D-5

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer	Lovejoy
CategoryId, CategoryIdL3	6026
CategoryIdL1	31
CategoryIdL2	4596
CategoryL1	Power Transmission
CategoryL2	Bearings, V-belts & Power Transmission Equipment
CategoryL3	Couplings, Collars, & Adapters
CategoryL4	Universal Joints
DimensionUnit	inch
GraingerSku	1L733
UPC	685144157744
UnitOfMeasure	EA
Weight	0.45
WeightUnit	lbs
cali_prop65_orglabel, cali_prop65_whtlabel	False
countryOfOrigin	US
height, width	0.8
jsonUrlData	924526ffbdad25e5923b
length	3
moq, multiple, tierMinQty1	1
MPN, Coupling Size	D-5
qtyInStock, qtyInStockOverride	0
qtySource	qtyInStockOverride
SKU	G2681393
tierPrice1	64.89
url	https://www.zoro.com/lovejoy-solid-u-joint-d-5/i/G2681393/
Outside Dia, Outside Diameter, Joint Diameter	7/8 in
Overall Length	3 in
Length through Bore, Minimum Bore Diameter, Bore Diameter, Keyway Width, Keyway Depth	Not Applicable
Yoke Length	1 1/2 in
Maximum Bore Diameter, Max Bore	11/16 in
Item	Universal Joint
Type	Solid D
Standard Bore	Solid
Bore	No Bore Provided, Must Be Machined To User Requirements
Static Breaking Torque (In -Lb )	1,176
Design	Pin and Block
Setscrew, Keyway	Not Provided
Groove	Standard Boot Retaining
Used For	Applications with Angles up to 25 Degrees and Speeds up to 1750 RPM
Construction	Steel

Distributor offers

Seller	SKU	MOQ	In stock	Multiple	Prices
Zoro	G2681393	1		1	1 @ $64.89
Raptor Supplies	AB2CGT	1		1
Zoro	G3037377	1		1	1 @ $34.16
Raptor Supplies	AB2CHG	1		1	1 @ $135.91
sustainablesupply.com	C1661425	1	-2	1	1 @ $78.81
simsupply.com	CU-314C373333	1	28	1	1 @ $100.26
simsupply.com	ZO-G2681393	1	22	1	1 @ $151.57
