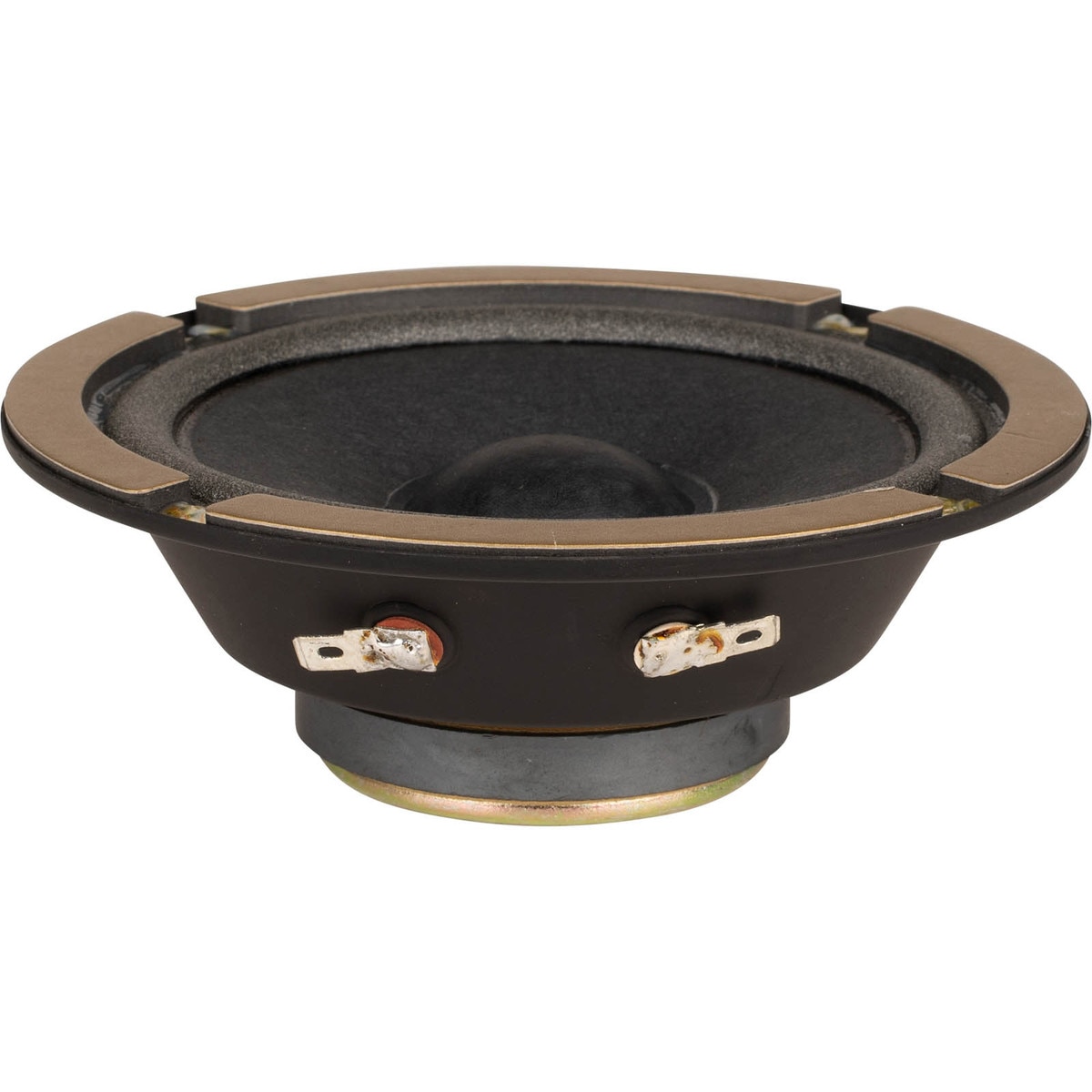

Z5G0285W 5" Sealed-Back Midrange Speaker 8 Ohm

Factory Buyouts . Z5G0285W

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, BrandFactory Buyouts
DimensionUnitinch
Extra Product NameZ5G0285W 5" Sealed-Back Midrange Speaker 8 Ohm
UPC848864074030
Weight0.8
WeightUnitlbs
depth, length1.75
diameter, height, width5.125
height_Attrib, width_AttribOverall Outside Diameter
length_AttribDepth
moq, multiple, tierMinQty11
MPN, ModelZ5G0285W
qtyInStock2140
SKU, Part Number299-4318
tierMinQty210
tierMinQty320
tierPrice13.98
tierPrice23.48
tierPrice32.98
Unit of MeasureEach
Nominal Diameter5"
Bolt Circle Diameter4.75
Power Handling (RMS)5 Watts
Power Handling (MAX)10 Watts
Impedance8?
Frequency Response600 to 8,000Hz
Sensitivity90.81dB 2.83V/1m
Voice Coil Diameter0.75"
Resonant Frequency (Fs)592.2Hz
DC Resistance (Re)6.841?
Voice Coil Inductance (Le)0.274mH
Surface Area of Cone (Sd)73.9cm?
Cone Material, Voice Coil FormerPaper
Surround MaterialFoam
Voice Coil Wire MaterialCopper
Basket / Frame MaterialSteel
Magnet MaterialFerrite
Overall Outside Diameter5.125"
Baffle Cutout Diameter4.375"
Depth1.75"
# Mounting Holes4

Distributor offers

SellerSKUMOQIn stockMultiplePrices
parts-express.com299-43181214011 @ $3.98, 10 @ $3.48, 20 @ $2.98
