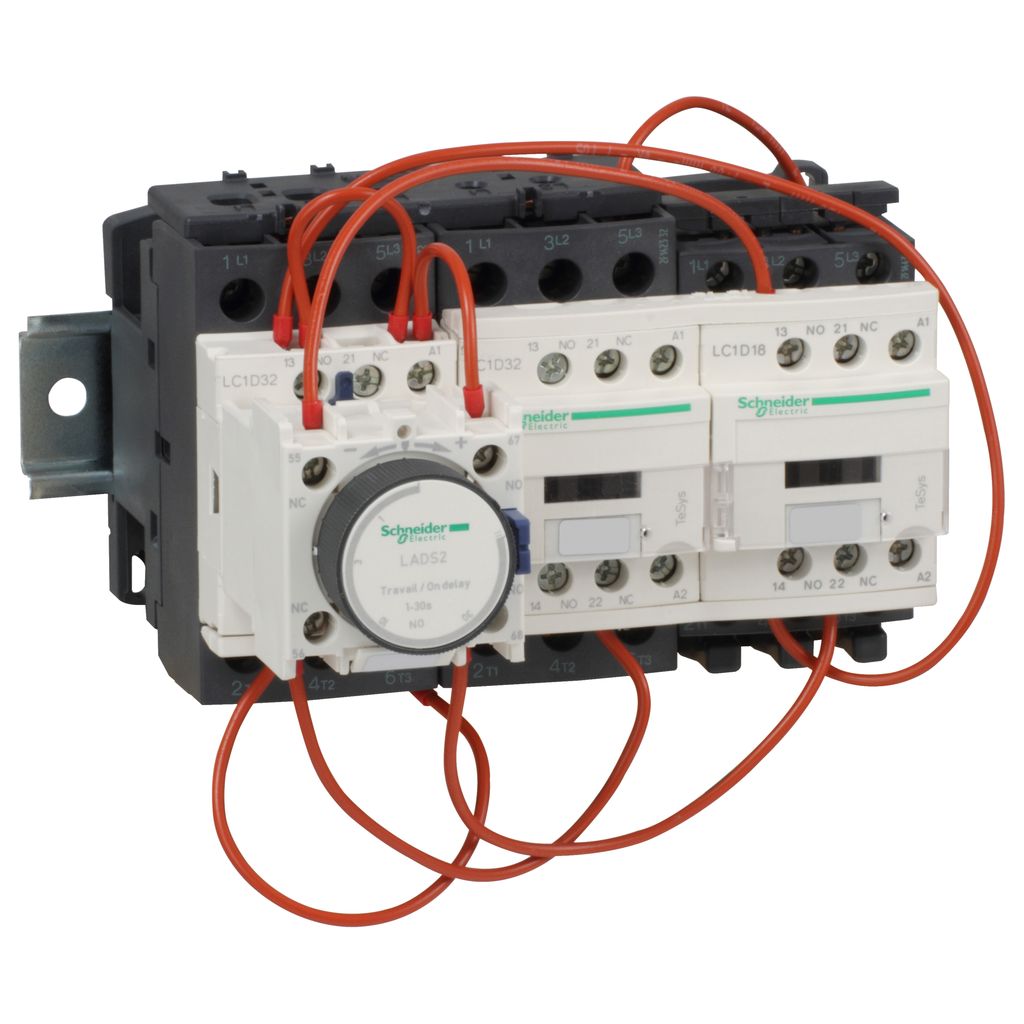

TeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 110 V AC coil | Mayer Electric

SQUARE D . SQDLC3D32AF7

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameTeSys Deca , star delta starter , 3 x 3P (3 NO) , 32 A , 110 V AC coil | Mayer Electric
UPC3389110550368
Weight2.03
WeightUnitkg
Weight_AttribNet Weight
depth, length149.0
height124.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-TeSys-Deca-star-delta-starter-3-x-3P-3-NO-32-A-110-V-AC-coil-3389110550368
jsonUrlData22463a734-e727-474c-a96d-aeea00565379
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDLC3D32AF7
qtyInStock0
tierPrice14264.0
width166.0
width_AttribWidth
Product CertificationsRINA || GL || GOST || BV || DNV || CCC || CSA || LROS (Lloyds register of shipping) || UL
Interlocking Typemechanical
[Uc] Control Circuit Voltage110 V AC 50/60 Hz
StandardsEN 60947-5-1 || EN 60947-4-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-4-1 || IEC 60947-5-1 || IEC 60335-1
Pole Contact Composition3 x 3 NO
Mounting Supportplate
Control Circuit TypeAC 50/60 Hz
Contactor Applicationmotor control
Product Or Component Typestar delta starter
Product NameTeSys D || TeSys Deca
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
RangeTeSys || TeSys Deca
Device Presentationpre-wired
Utilisation CategoryAC-3
Auxiliary Contact Composition1 NC KM1 star contactor
Provided Equipmentprotective cover
Overvoltage CategoryIII
Motor Power Kw15 kW 220/230 V AC 50/60 Hz || 25 kW 380/400 V AC 50/60 Hz || 30 kW 415 V AC 50/60 Hz || 30 kW 440 V AC 50/60 Hz
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
Device Short NameLC3D
Poles Description3 x 3P
Warranty18 months
Non-Overlap Time1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Minimum Switching Current5 mA signalling circuit
Height124 mm
Control Circuit Voltage Limitsdrop-out 0.3...0.6 Uc 50/60 Hz 60 ?C) || operational 0.8...1.1 Uc 50 Hz 60 ?C) || operational 0.85...1.1 Uc 60 Hz 60 ?C)
Starting Time30 s
Net Weight2.03 kg
Inrush Power In Va70-70 VA 60 Hz 0.75 20 ?C) || 70-70 VA 50 Hz 0.75 20 ?C)
Coil Technologywithout built-in suppressor module
Maximum Operating Rate30 cyc/h 60 ?C
Signalling Circuit Frequency25...400 Hz
Mechanical Durability15 Mcycles
Auxiliary Contacts Typemechanically linked IEC 60947-5-1 3 x 1 NO + 1 NC || mirror contact IEC 60947-4-1 3 x 1 NC
Hold-In Power Consumption In Va7.5-7.5 VA 60 Hz 0.3 20 ?C) || 7-7 VA 50 Hz 0.3 20 ?C)
Switching Voltage17 V signalling circuit
Width166 mm
Depth149 mm
Heat Dissipation2-3 W 50/60 Hz
Rohs Exemption Information, Mercury Free, Pvc Free, Toxic Heavy Metal Free, Reach Free Of SvhcYes
Environmental DisclosureENVPEP1501004
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Circularity ProfileENVEOLI1501004
Eu Rohs DirectiveCompliant
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
Ambient Air Temperature For Operation-40-70 ?C at Uc
Climatic WithstandIACS E10 || IEC 60947-1 Annex Q category D
Pollution Degree3
Insulation Resistance> 10 MOhm signalling circuit
Flame RetardanceV1 conforming to UL 94
Ambient Air Temperature For Storage-60-80 ?C
Protective TreatmentTH IEC 60068-2-30
Ip Degree Of ProtectionIP20 front face IEC 60529
Operating Altitude9842.52 ft (3000 m) without derating
Fire Resistance850 ?C IEC 60695-2-1

Distributor offers

SellerSKUMOQIn stockMultiplePrices
mayerelectric.comSQDLC3D32AF7111 @ $4264.00
