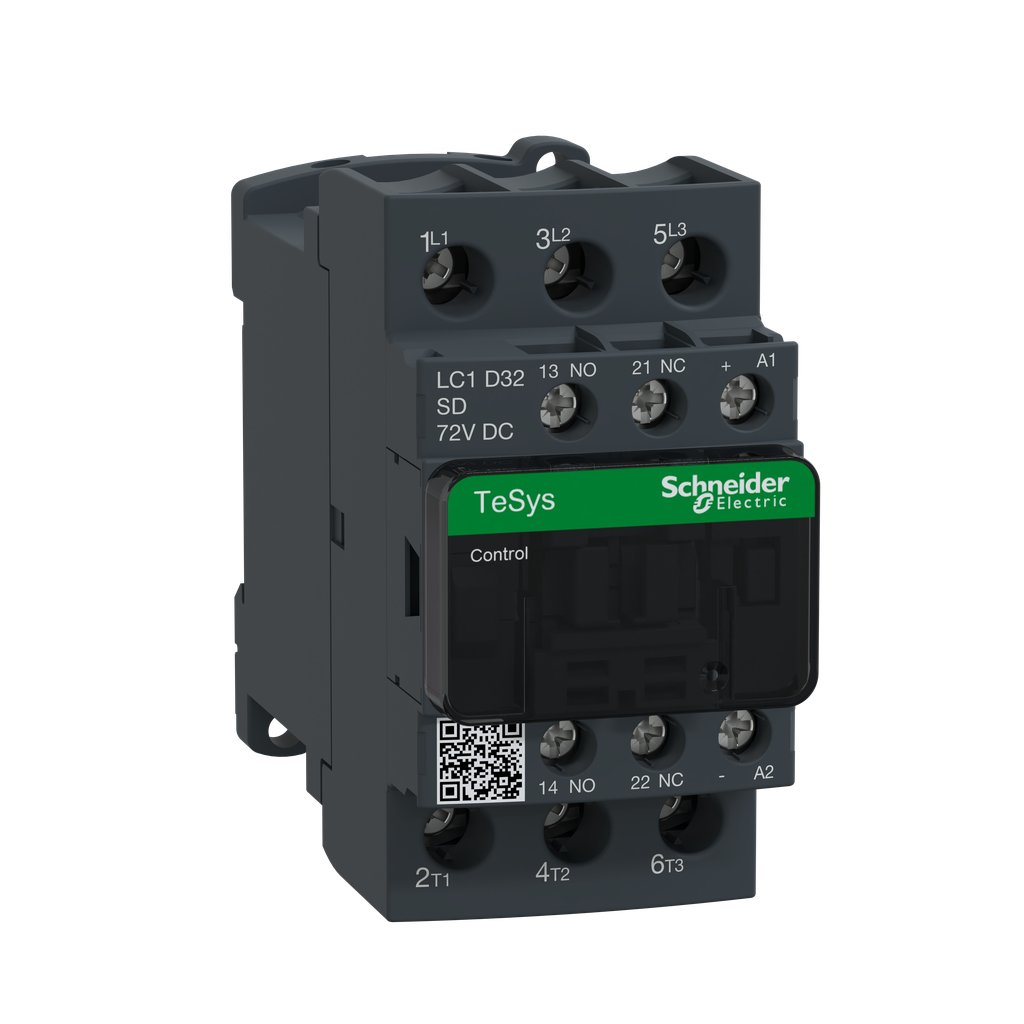

IEC contactor, TeSys Deca, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 72VDC coil, open style | Mayer Electric

SQUARE D . SQDLC1D32SD

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSQUARE D
DimensionUnitmm
Extra Product NameIEC contactor, TeSys Deca, nonreversing, 32A, 20HP at 480VAC, up to 100kA SCCR, 3 phase, 3 NO, 72VDC coil, open style | Mayer Electric
UPC3389110359473
Weight0.535
WeightUnitkg
Weight_AttribNet Weight
depth, length101.0
height85.0
height_AttribHeight
jsonUrlData/Product/SQUARE-D-IEC-contactor-TeSys-Deca-nonreversing-32A-20HP-at-480VAC-up-to-100kA-SCCR-3-phase-3-NO-72VDC-coil-open-style-3389110359473
jsonUrlData2ddab39dc-1dbb-47d2-9816-aeea00563b73
length_AttribDepth
moq, multiple, tierMinQty11
MPN, SKUSQDLC1D32SD
qtyInStock0
tierPrice1222.26
width45.0
width_AttribWidth
Range Of ProductTeSys D || TeSys Deca
Contactor Applicationmotor control || resistive load
Product Or Component Typecontactor
RangeTeSys || TeSys Deca
Utilisation CategoryAC-4 || AC-1 || AC-3 || AC-3e
Poles Description3P
Device Short Name, Compatibility CodeLC1D
Warranty18 months
Product CertificationsDNV || CCC || RINA || UL || CSA || GL || LROS (Lloyds register of shipping) || GOST || BV
Non-Overlap Time1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
Minimum Switching Current5 mA signalling circuit
Power Dissipation Per Pole2 W AC-3 || 5 W AC-1 || 2 W AC-3e
Average Impedance2 mOhm - Ith 50 A 50 Hz power circuit
Auxiliary Contact Composition1 NO + 1 NC
[Ith] Conventional Free Air Thermal Current10 A 60 ?C signalling circuit || 50 A 60 ?C power circuit
Control Circuit Voltage Limits0.1...0.25 Uc -40-70 ?C drop-out DC || 0.7...1.25 Uc -40-60 ?C operational DC || 1...1.25 Uc 60-70 ?C operational DC
Mounting Supportrail || plate
Contact CompatibilityM4
Control Circuit TypeDC standard
Safety Reliability LevelB10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
Hold-In Power Consumption In W5.4-5.4 W 20 ?C
Insulation Resistance> 10 MOhm signalling circuit
Rated Breaking Capacity550 A 440 V power circuit IEC 60947
Irms Rated Making Capacity140 A AC signalling circuit IEC 60947-5-1 || 250 A DC signalling circuit IEC 60947-5-1 || 550 A 440 V power circuit IEC 60947
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Pole Contact Composition3 NO
Coil Technologybuilt-in bidirectional peak limiting diode suppressor
Time Constant28 ms
Minimum Switching Voltage17 V signalling circuit
Maximum Operating Rate3600 cyc/h 60 ?C
Mechanical Durability30 Mcycles
Inrush Power In W5.4-5.4 W 20 ?C)
Auxiliary Contacts Typemechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
Operating Altitude0...9842.52 ft (0...3000 m)
Overvoltage CategoryIII
[Ui] Rated Insulation Voltagepower circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL || power circuit 690 V IEC 60947-4-1
Protective Coverwith
Rohs Exemption Information, Mercury Free, Pvc FreeYes
Environmental DisclosureENVPEP110229EN
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
California Proposition 65 : WARNING: This product can expose you to chemicals includingAntimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information.
Circularity ProfileENVEOLI1102029EN
Eu Rohs DirectiveCompliant
Mechanical Robustnessvibrations contactor open2 Gn, 5...300 Hz || vibrations contactor closed4 Gn, 5...300 Hz || shocks contactor closed15 Gn for 11 ms || shocks contactor open8 Gn for 11 ms
Height85 mm
Climatic WithstandIACS E10 || IEC 60947-1 Annex Q category D
Net Weight0.535 kg
Ambient Air Temperature For Storage-60-80 ?C
Fire Resistance850 ?C IEC 60695-2-1
Width45 mm
Depth101 mm
