CYLINDER AIR

SPEEDAIRE . 1.50DXPSR05.0

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerSPEEDAIRE
DimensionUnitinch
Extra Product NameCYLINDER AIR
UNSPSC27131701
Weight1.56
WeightUnitlbs
deadPageTrue
diameter, height, width1.5
extendedQty, qtyInStock0
height_Attrib, width_AttribBore Dia.
length10.5
length_AttribOverall Length
moq, multiple1
MPN1.50DXPSR05.0
originalCurrency{'currency': 'CAD'}
SKUDYE1.50DXPSR05.0
Dimension B0.749"
Dimension D0.38"
Dimension L0.50"
Dimension Cb, Dimension E0.62"
Dimension Cd, Pivot Hole Dia0.376"

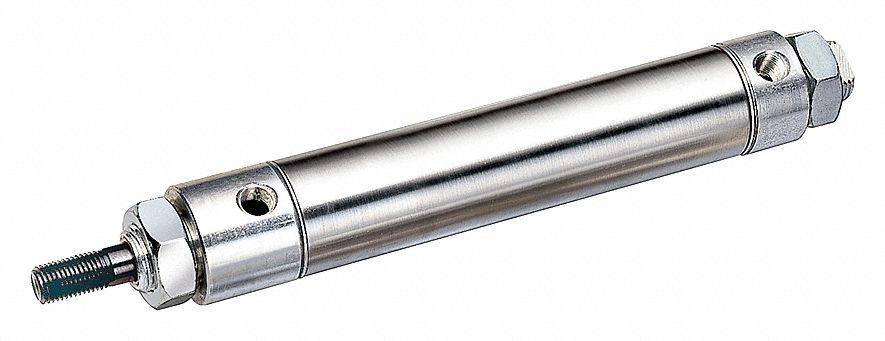

ItemRound Air Cylinder
Cylinder Action, Single Acting/Double ActingDouble Acting
Stroke5"
Air Cylinder MountNose and Pivot
Port Size1/8" FNPT
Cushion TypeNone
Cylinder Type, Body Material, Piston Rod Material, Tube MaterialStainless Steel
Bore Dia, Air Cylinder Bore Dia1-1/2"
Piston Material, End Cap MaterialAluminum
Magnetic PistonNo
Nose Mount Thread3/4-16
Rod Thread Size7/16-20 UNF
Max Pressure250 psi
Dimension A, Rod Thread Length0.75"
Dimension N13/4"-16
Dimension Cc, Rod Dia0.437"
Dimension Kk7/16"-20 UNF
Air Cylinder Product GroupAir Cylinder
Air Cylinder TypeRound Body
Temp Range-10 Degrees F - 165 Degrees F
Overall Length10.5"
MountDouble End
FinishSilver
FeaturesNo Switch, No Cushions

Distributor offers

SellerSKUMOQIn stockMultiplePrices
grainger.caDYE1.50DXPSR05.011
