AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 100 RPM, Maximum Torque 265 in-lb, Overhung Load Capacity 831 ft-lb, Rotation CW/CCW, Output Shaft Height 3.25 in, Mounting Orientation Any Angle, Operating Voltage 208-230/460V AC, Gear Ratio 18:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Motor Insulation Class F, Application Conveyors, Mixers, Printing Press, Pumps

AC Gearmotor, Number of Output Shafts 1, Motor Type 3-Phase, Motor Enclosure Totally Enclosed Fan-Cooled, Nameplate Speed 100 RPM, Maximum Torque 265 in-lb, Overhung Load Capacity 831 ft-lb, Rotation CW/CCW, Output Shaft Height 3.25 in, Mounting Orientation Any Angle, Operating Voltage 208-230/460V AC, Gear Ratio 18:1, Brake Type None, Output Location Left Hand, Shaft Orientation Right Angle, Motor Insulation Class F, Application Conveyors, Mixers, Printing Press, Pumps

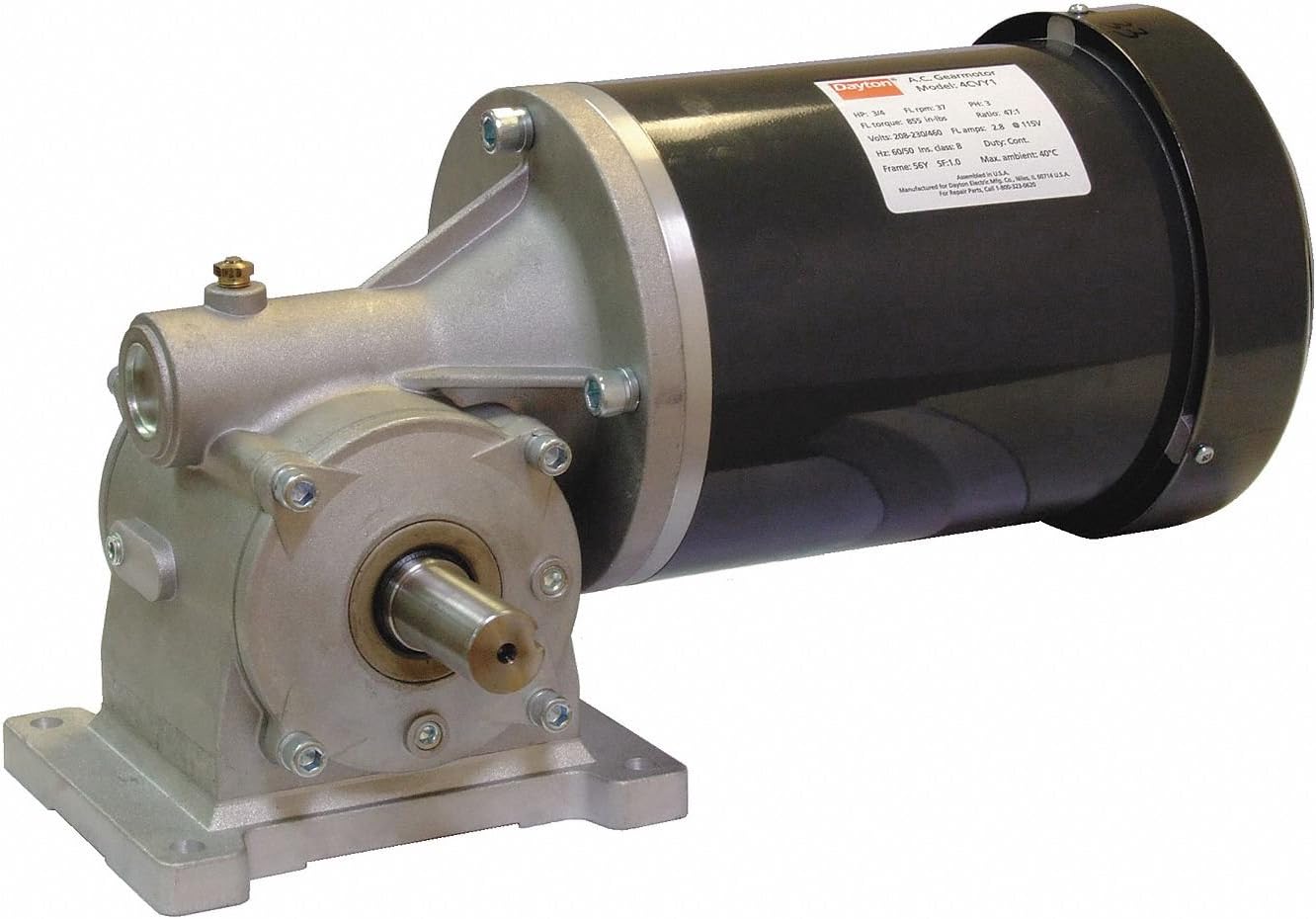

Dayton . 4CVX1

Gallery

Attributes

Brand name, Manufacturer name, ManufacturerDayton
CategoryId, CategoryIdL310379
CategoryIdL138
CategoryIdL26005
CategoryL1Power Transmission
CategoryL2Motors
CategoryL3Gearmotors
CategoryL4AC Gear Motors
DimensionUnitinch
GTIN, UPC190735322796
GraingerSku, MPN4CVX1
UnitOfMeasureEA
Voltage208-230/460
Weight41
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginCN
height12.8
jsonUrlData924526ffbdad25e5923b
length18.5
moq, multiple, tierMinQty11
qtyInStock15
qtyInStockOverride-2
SKUG1175894
tierPrice1869.99
urlhttps://www.zoro.com/dayton-ac-gearmotor-2650-in-lb-max-torque-100-rpm-nameplate-rpm-208-230460v-ac-voltage-3-phase-4cvx1/i/G1175894/
width12.5
Keyway Size Type1/4 sq in x 1-1/4 in
Shaft Length (Dimension V)2.25"
Dimension N0.44 in
Dimension D111"
Height (Dimension O)9.06"
Dimension B7.13 in
Keyway Size1/4" Square x 1-1/4"
Shaft Dia (Dimension U), Dimension BA1"
Dimension S1.38"
Overall Length16.25 in
Dimension L2.5"
Dimension F6.06"
Dimension D23"
Dimension D, Dimension AB, Mount Hole Center-to-Center Length6 in
Dimension AA6.72 in
Dimension X2"
Dimension E3.22 in
Dimension C7 in
Dimension H3.25"
Dimension Z5"
Dimension A9.53 in
Output Shaft Length2 1/4 in
Mount Hole Center-to-Center Width5 in
Output Shaft Height3.25 in
Output Shaft Diameter1 in
Keyway Depth1 1/4 in
Keyway Width1/4 in
Overall Width11 in
Housing Mount Hole Size0.406 in
Overall Height9.06 in
Item, Gearmotor TypeAC Gearmotor
Gearmotor Voltage, Operating Voltage208-230/460V AC
Gearmotor Phase, Phase3
Max Torque265.0 in-lb
Gearmotor Shaft TypeSingle Left
Gearmotor Shaft Orientation, Shaft OrientationRight Angle
Nameplate RPM100 RPM
Gearmotor Enclosure, Motor EnclosureTotally Enclosed Fan-Cooled
Gearmotor RotationCW/CCW
Gearmotor Brake Type, Thermal ProtectionNone
Gearmotor Mounting PositionAll Angle
Full Load Amps2.0-1.9/0.95
StandardsUL Recognized
Input HP1/2 hp
Insulation ClassF
Motor Type3-Phase
Starting Torque792 in-lb
Max Ambient Temp40 Degrees C
HousingAluminum/Cast Iron
Bearings, Bearing TypeBall
ShaftSingle Output
EnclosureTEFC
ApplicationPrinting Press, Conveyors, Pumps, Mixers
Gear MaterialHardened Steel/Forged Bronze
GearsHardened Steel Worm, Forged Bronze Output Gear
Gear TypeWorm
SealsOil Seals on Axle Shaft
Hz60/50 Hz
RotationReversible
MountingAll Position
LubricationGear Oil
Gear Ratio18:1
RPM Range76 to 100
Overhung Load831 lb
Gear Case MaterialDie Cast Aluminum
Maximum Torque265 in-lb
Overhung Load Capacity831 ft-lb
Mount TypeAny Position
Maximum Ambient Temperature104 Degrees F
Keyway TypeWoodruff
Full Load Current2.0-1.9/0.95 A
Frequency50 Hz, 60 Hz

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG117589411511 @ $869.99
Grainger4CVX111
AmazonTPB0086GTXK8111 @ $1324.62
AmazonTPB00WO6I1MM111 @ $1059.53
AmazonB0086GTXK811
AmazonUNKB00WO6I1MM1-211 @ $1059.53
AmazonUNKB0086GTXK81-211 @ $1324.62
sustainablesupply.comC16857451-211 @ $1294.87
emotorpro.com4CVX11-211 @ $1317.50
simsupply.comZO-G11758941911 @ $1081.67
