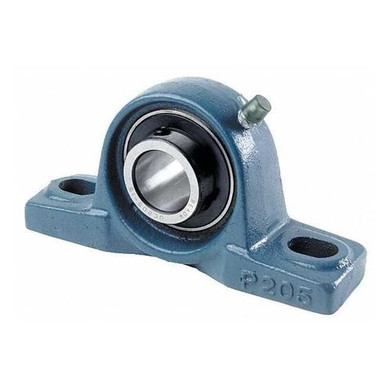

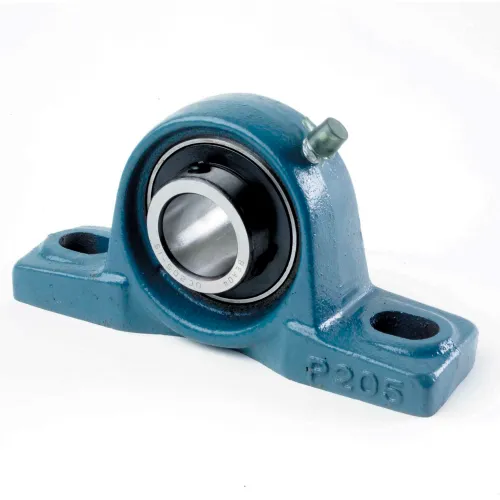

Pillow Block Bearing, Base Height 0.59 in, Base Width 1.496 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 7/8 in, Bore Type Cylindrical, Center Height 1 27/64 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Lubricant Material Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Mount Hole Center-to-Center Width 4 1/8 in, Mount Type Bolt-Through
Pillow Block Bearing, Base Height 0.59 in, Base Width 1.496 in, Bearing Insert Material Alloy Steel, Bearing Insert Type Radial Ball, Bore Diameter 7/8 in, Bore Type Cylindrical, Center Height 1 27/64 in, Closure Double Sealed, Expansion Type Fixed, Housing Material Cast Iron, Lubricant Material Grease, Maximum Temperature 250 Degrees F, Minimum Temperature -40 Degrees F, Mount Hole Center-to-Center Length 4 1/8 in, Mount Hole Center-to-Center Width 4 1/8 in, Mount Type Bolt-Through
Gallery
Attributes
| Brand name, Manufacturer name, Brand | Tritan |
|---|---|
| Manufacturer | Tritan TRITAN |
| CategoryId, CategoryIdL3 | 9348 |
| CategoryIdL1 | 31 |
| CategoryIdL2 | 17014 |
| CategoryL1 | Power Transmission |
| CategoryL2 | Bearings, V-belts & Power Transmission Equipment |
| CategoryL3 | Pillow Block & Flange Bearings |
| CategoryL4, DisplayName | Pillow Block Bearings |
| DimensionUnit | inch |
| GTIN, UPC | 888569054739 |
| GraingerSku | 36UZ04 |
| UnitOfMeasure | EA |
| Weight | 1.94 0.12 2.0 2.00 3.10 4.44 |
| WeightUnit | lbs |
| cali_prop65_orglabel, cali_prop65_whtlabel, AdultProduct, Autographed, Batteries_required, Contains_liquid_contents, Memorabilia, TradeInEligible | False |
| countryOfOrigin | CN |
| height | 1.5 |
| jsonUrlData | 924526ffbdad25e5923b |
| length | 5.9 |
| moq, multiple, tierMinQty1, Item_package_quantity, NumberOfItems, Number_of_items, PackageQuantity | 1 |
| MPN, Model, ModelNumber, Model_number, Mpns, PartNumber, Part_number | UCP205-14 |
| qtyInStock | 163 |
| qtyInStockOverride | -2 |
| SKU | G0468916 |
| tierPrice1 | 17.65 |
| url | https://www.zoro.com/tritan-pillow-block-bearing-ball-78-in-bore-ucp205-14/i/G0468916/ |
| width | 3.5 |
| Bore Dia | 0.875" |
| Bolt Size | 3/8 in |
| Overall Width | 34.1 mm |
| Dimension E | 3 1/2 in |
| Overall Height | 71 mm |
| Overall Length | 140 mm |
| Bore Diameter | 7/8 in |
| Base Height | 0.59 in |
| Mount Hole Center-to-Center Width, Mount Hole Center-to-Center Length | 4 1/8 in |
| Mounting Bolt Size | M10 |
| Bore Diameter Tolerance | +/- 0.0007 in |
| Center Height | 1 27/64 in |
| Base Width | 1.496 in |
| Bearing Insert Type | Ball |
| Shaft Locking Type | Set Screw |
| Bearing Housing Material Type | Cast Iron |
| Bearing Insert Material | 52100 Steel |
| Bolt Hole Center-to-Center | 4.1339" |
| Mounting Surface to Shaft Center | Two Bolt Base |
| Series | UCP |
| Number of Bolts | 2 |
| Standards | AFBMA, ISO |
| Item | Pillow Block Bearing |
| ASIN, Asin | B01LWVNDBU B07PNKCK5R B085BDT6JX B08X3RJQTX |
| Amount | 25.99 27.99 28.99 |
| Binding | Misc. |
| Bullet_point | Bearings Commercial Brand: Tritan Country of Manufactury: China Power Transmission Price For: Each Series: UCP Locking Type: Set Screw Bearing Lubrication: Shell Alvania RL2 or NLGI #2 Equivalent Bearing Insert Material: 52100 Chrome Steel Housing Material: Cast Iron Number of Bolts: 2 Item: Pillow Block Bearing Standards: ISO, AFBMA Finish: Painted Bearing Insert Type: Ball Temp. Range: -40 Degrees to 250 Degrees F Dynamic Load Capacity: 3147 lb. Static Load Capacity: 1765 lb. Mounting Surface to Shaft Center: 36.5mm Bore Dia.: 7/8" Bolt Size: 3/8" Dimension E: 3-1/2" Overall Width: 34.1mm Overall Length: 140mm Overall Height: 71mm Country of Origin (subject to change): China TRITAN |
| ClassificationId | 220003011 |
| Color | Blue/Grey |
| Currency, CurrencyCode | USD |
| Height | 1.5 1.50 18 200 232 4.5 44 500 54 600 75 |
| Identifier | 0888569054739 7436829218297 7439540820886 888569054739 |
| IdentifierType | EAN UPC |
| Included_components | Product & Instructions Guide |
| IsDeadAsin | True |
| ItemClassification | BASE_PRODUCT |
| ItemName, Item_name | Pillow Block Bearing, Ball, 7/8" Bore Pillow Block Bearing,Ball,7/8" Bore UCP205-14 - TRITAN - Factory New! |
| Item_package_weight, Item_weight | 2.0 4.44 |
| Item_type_keyword | pillow-block-bearings |
| Keyword | G0468916 UCP205-14 |
| Label, Publisher, Studio | TRITAN Tritan |
| Length | 21 5.9 5.90 8.9 |
| Link | https://m.media-amazon.com/images/I/219oq2i2LqL._SL75_.jpg https://m.media-amazon.com/images/I/219oq2i2LqL.jpg https://m.media-amazon.com/images/I/21tHiXNcjqL._SL75_.jpg https://m.media-amazon.com/images/I/21tHiXNcjqL.jpg https://m.media-amazon.com/images/I/41TOg4PORGL._SL75_.jpg https://m.media-amazon.com/images/I/41TOg4PORGL.jpg https://m.media-amazon.com/images/I/41U8FOqArDL._SL75_.jpg https://m.media-amazon.com/images/I/41U8FOqArDL.jpg https://www.amazon.com/gp/bestsellers/industrial https://www.amazon.com/gp/bestsellers/industrial/220003011 |
| List_price | 31.99 53.99 |
| Marking_type | epa_registration_number |
| Material | Alloy Steel |
| MaterialType | Alloy Steel HAWA Material Other |
| Number | 1 UC205 14 |
| ProductCategoryId | 220003011 biss_display_on_website |
| ProductGroup, WebsiteDisplayGroupName | BISS Basic |
| ProductType, ProductTypeName | HARDWARE_BEARING |
| Product_description | ' Pillow Block Bearing, Number of Bolts 2, UCP Series, Bore Dia. 7/8 In., Ball Bearing Type, 52100 Chrome Steel Bearing Material, Cast Iron Housing Material, Set Screw Locking Type, Mounting Hole Center 105mm, Mounting Surface to Shaft Center 36.5mm, Overall Height 71mm, Overall Width 34.1mm, Overall Length 140mm, Bolt Hole Size 3/8 In., Wide Inner Ring Insert, Dynamic Load Capacity 3147 lb., Static Load Capacity 1, 765. lb, Temp. Range -40 Degrees to 250 Degrees F, Painted Finish, Blue ' THIS LISTING IS FOR ONE PIECE- UCP205-14 - Pillow Block Unit, Wide Inner Ring Insert, Set Screw, 0.875" Bore Dia., 1.4375 Bore Center Height , 4.1339" Bolt-Hole to Bolt-Hole Center , Bulk Packaging - TRITAN - FACTORY NEW! |
| Product_site_launch_date | 2014-11-01T12:00:00.000-08:00 2019-10-08T01:20:19.169Z 2022-09-13T15:33:09.766Z 2023-06-15T17:58:54.428Z |
| Rank | 1154155 1311438 1428 1613 819330 846 |
| Registration_status | fifra_not_considered_pesticide not_capable_emitting_rf_energy |
| StrippedMpns | UCP20514 |
| Supplier_declared_dg_hz_regulation | not_applicable |
| Title | Industrial & Scientific Mounted Pillow Block Bearings Pillow Block Bearing, Ball, 7/8" Bore Pillow Block Bearing,Ball,7/8" Bore UCP205-14 - TRITAN - Factory New! UCP205-14 - TRITAN - Pillow Block - Wide Inner Ring Insert - Set Screw -New |
| Type | Count ean upc |
| URL | https://m.media-amazon.com/images/I/219oq2i2LqL._SL75_.jpg https://m.media-amazon.com/images/I/21tHiXNcjqL._SL75_.jpg https://m.media-amazon.com/images/I/41TOg4PORGL._SL75_.jpg https://m.media-amazon.com/images/I/41U8FOqArDL._SL75_.jpg https://m.media-amazon.com/images/I/51UDwysDB+L._SL75_.jpg |
| Unit | inches pounds |
| Unit_count | 1.0 |
| Units | inches pixels pounds |
| Variant | MAIN |
| WebsiteDisplayGroup | biss_basic_display_on_website biss_display_on_website |
| Width | 18 200 3.5 3.50 395 500 6.5 600 75 |
Distributor offers
| Seller | SKU | MOQ | In stock | Multiple | Prices |
|---|---|---|---|---|---|
| Zoro | G0468916 | 1 | 163 | 1 | 1 @ $17.65 |
| Grainger | 36UZ04 | 1 | 1 | ||
 Global Industrial | WBB1873338 | 1 | -2 | 1 | 1 @ $30.44 |
| AH7KAE | 1 | 1 | 1 @ $31.13 | ||
| AmazonSC | B01LWVNDBU | 1 | 1 | ||
 simsupply.com | ZO-G0468916 | 1 | 97 | 1 | 1 @ $28.45 |
| WWG36UZ04 | 1 | 1 | 1 @ $24.82 | ||
 National Supply Network | 83721365 | 1 | -2 | 1 | 1 @ $21.50 |
Related on Amazon
As an Amazon Associate, we earn from qualifying purchases. (paid link) CERTAIN CONTENT THAT APPEARS ON THIS SITE COMES FROM AMAZON. THIS CONTENT IS PROVIDED 'AS IS' AND IS SUBJECT TO CHANGE OR REMOVAL AT ANY TIME.
Pillow Block Bearing, Ball, 7/8" Bore
Brand: Tritan
' Pillow Block Bearing, Number of Bolts 2, UCP Series, Bore Dia. 7/8 In., Ball Bearing Type, 52100 Chrome Steel Bearing Material, Cast Iron Housing Material, Set Screw Locking Type, Mounting Hole Center 105mm, Mounting Surface to Shaft Center 36.5mm, Overall Height 71mm, Overall Width 34.1mm, Overall Length 140mm, Bolt Hole Size 3/8 In., Wide Inner Ring Insert, Dynamic Load Capacity 3147 lb., Static Load Capacity 1, 765. lb, Temp. Range -40 Degrees to 250 Degrees F, Painted Finish, Blue '
Details
- Price For: Each Series: UCP Locking Type: Set Screw Bearing Lubrication: Shell Alvania RL2 or NLGI #2 Equivalent Bearing Insert Material: 52100 Chrome Steel Housing Material: Cast Iron Number of Bolts: 2 Item: Pillow Block Bearing Standards: ISO, AFBMA Finish: Painted Bearing Insert Type: Ball Temp. Range: -40 Degrees to 250 Degrees F Dynamic Load Capacity: 3147 lb.
- Static Load Capacity: 1765 lb. Mounting Surface to Shaft Center: 36.5mm Bore Dia.: 7/8" Bolt Size: 3/8" Dimension E: 3-1/2" Overall Width: 34.1mm Overall Length: 140mm Overall Height: 71mm Country of Origin (subject to change): China
Listing
| Product group | BISS Basic |
|---|---|
| Product type | HARDWARE_BEARING |
| Model | UCP205-14 |
| Part number | UCP205-14 |
| Items per pack | 1 |
| Label | TRITAN |
| Manufacturer | TRITAN |
Pillow Block Bearing,Ball,7/8" Bore
Brand: Tritan
Details
- Bearings
- Power Transmission
- Country of Manufactury: China
- Commercial Brand: Tritan
Listing
| Binding | Misc. |
|---|---|
| Product group | BISS Basic |
| Product type | HARDWARE_BEARING |
| Part number | UCP205-14 |
| Items per pack | 1 |
| Label | Tritan |
| Manufacturer | Tritan |
Pillow Block Bearing, Ball, 7/8" Bore
Brand: Tritan
Listing
| Product group | BISS Basic |
|---|---|
| Product type | HARDWARE_BEARING |
| Model | UCP205-14 |
| Part number | UCP205-14 |
| Label | TRITAN |
| Manufacturer | TRITAN |
UCP205-14 - TRITAN - Factory New!
Brand: Tritan
THIS LISTING IS FOR ONE PIECE- UCP205-14 - Pillow Block Unit, Wide Inner Ring Insert, Set Screw, 0.875" Bore Dia., 1.4375 Bore Center Height , 4.1339" Bolt-Hole to Bolt-Hole Center , Bulk Packaging - TRITAN - FACTORY NEW!
Details
- TRITAN
Listing
| Product group | BISS Basic |
|---|---|
| Product type | HARDWARE_BEARING |
| Part number | UCP205-14 |
| Items per pack | 1 |
| Label | TRITAN |
| Manufacturer | TRITAN |
