Goulds Water Technology

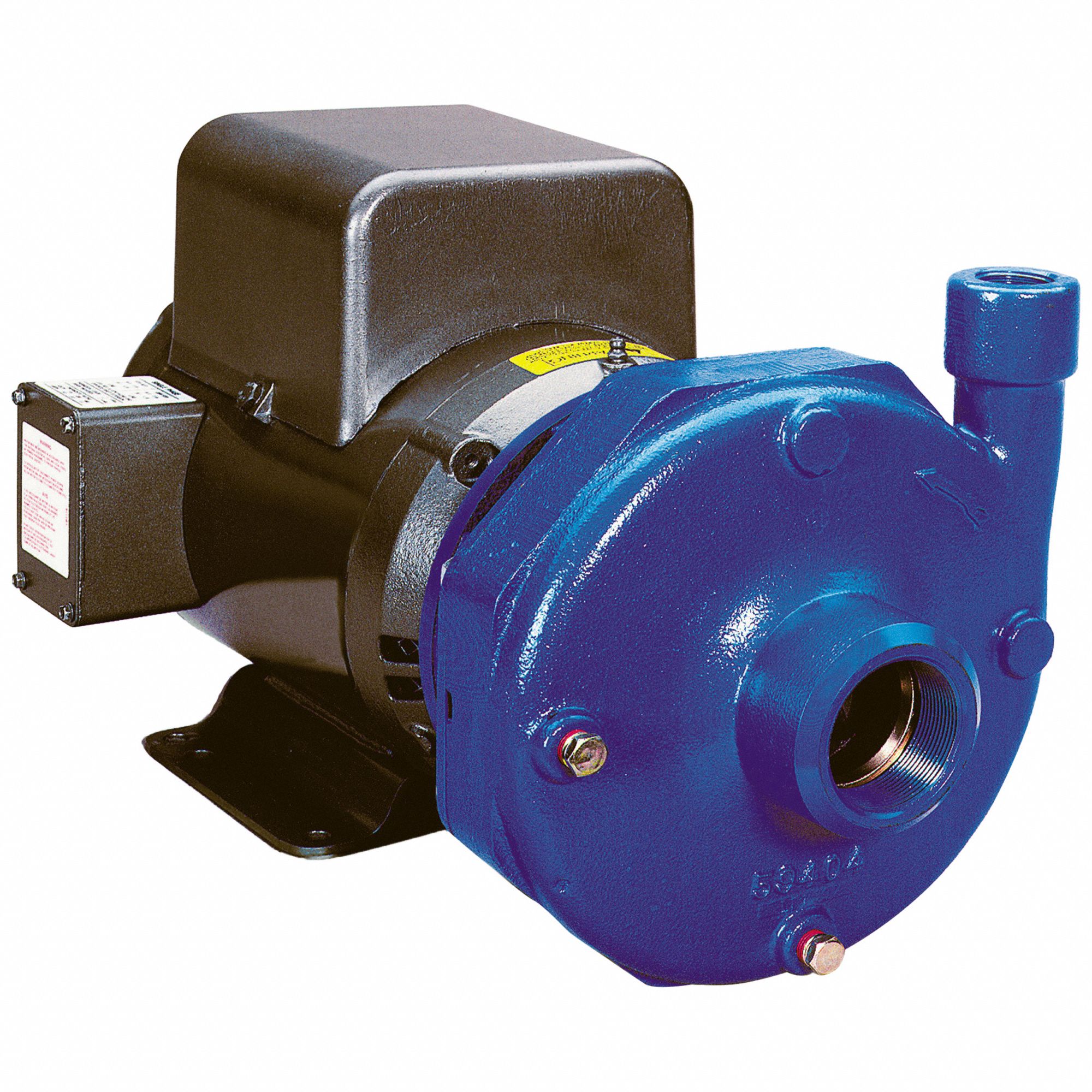

Pump Centrifugal Cast Iron 10hp 2 Inch x 1 1/2 In | 3CCV4 | Worldwide Delivery | +44 203 287 5224 | [email protected]

Goulds Water Technology . 5BF1L4G0

Gallery

Attributes

Brand name, Manufacturer name, Manufacturer, Extra Product NameGoulds Water Technology
DimensionUnitinch
GraingerSku3CCV4
UPCNone
UnitOfMeasureEA
Voltage230VAC
Weight206
WeightUnitlbs
cali_prop65_orglabel, cali_prop65_whtlabelFalse
countryOfOriginUS
extendedLead26
extendedQty-2
height24.2
jsonUrlData924526ffbdad25e5923b
length21.5
moq, multiple, tierMinQty1, Phase - Pumps, Phase, Phase Broad, Specific Gravity (Maximum)1
MPN5BF1L4G0
perItemShipping200.00
qtyInStock0
qtyInStockOverrideDrop Ship
SKUG0920491
tierPrice15452.8
urlhttps://www.zoro.com/goulds-water-technology-cast-iron-10-hp-centrifugal-pump-230v-5bf1l4g0/i/G0920491/
width31.5
HP - Pumps10 hp
Voltage - Pumps240V AC
Housing Material - Pumps, Pump Housing MaterialCast Iron
Inlet Size - Pumps2 in NPT
Outlet Size - Pumps1-1/2 in NPT
Max Head170 ft
Max Pressure - Pumps, Max Pressure74 psi
Motor Enclosure - PumpsOpen Dripproof
Motor RPM3,500 RPM
Inlet Pressure100 psi
Max Liquid Temp, Maximum Media Temperature212 Degrees F
GPM of Water @ 80 Ft of Head213
GPM of Water @ 10 Ft of Head, GPM of Water @ 30 Ft of Head, GPM of Water @ 25 Ft of Head, GPM of Water @ 110 Ft of Head, GPM of Water @ 260 Ft of Head, GPM of Water @ 140 Ft of Head, GPM of Water @ 160 Ft of Head, GPM of Water @ 50 Ft of Head, GPM of Water @ 60 Ft of Head, GPM of Water @ 120 Ft of Head, GPM of Water @ 280 Ft of Head, GPM of Water @ 20 Ft of Head, GPM of Water @ 40 Ft of Head, GPM of Water @ 240 Ft of Head, GPM of Water @ 220 Ft of Head, GPM of Water @ 5 Ft of Head, GPM of Water @ 200 Ft of Head, GPM of Water @ 130 Ft of Head, Includes, GPM of Water @ 15 Ft of Head, GPM of Water @ 180 Ft of Head-
Wetted MaterialsStainless Steel, Carbon, Cast Iron, Bronze, Ceramic, Buna-N
Min GPM @ Head50 @ 170 ft
Outlet1-1/2" NPT
DutyContinuous
Best Efficiency Range GPM @ Head100 to 130 gpm @ 160 to 200 ft
Manufacturers Warranty Length1 yr
GPM of Water @ 90 Ft of Head205
Amps46
Impeller MaterialBronze
Width13 7/8 in
Port Rotation90 Increments
Motor EnclosureODP
HP10
Best Efficiency GPM @ Head140 @ 145 ft
Inlet2" NPT
ItemCentrifugal Pump
Frame, Motor Frame Designation215JM
Length, Length (Straight Wireway)24 1/2 in
Item - Straight Centrifugal Pumps, Item ? Straight Centrifugal PumpsStraight Centrifugal High Head Pump
GPM of Water @ 70 Ft of Head225
Max Case Pressure175 psi
Hz60
GPM of Water @ 100 Ft of Head195
Motor TypeJM
Housing MaterialCast iron
Max Dia Solids5/16 in
Impeller TypeClosed
Max Specific Gravity1.0
Seal MaterialBuna-N Elastomers, Carbon/Ceramic Face, 316 Stainless Steel Metal Parts
Height12 1/8 in
Max GPM @ Head210 @ 80 ft
Flow Rate @ 220 ft of Head (Maximum), Flow Rate @ 10 ft of Head (Maximum), Flow Rate @ 1 ft of Head (Maximum), Flow Rate @ 260 ft of Head (Maximum), Flow Rate @ 240 ft of Head (Maximum), Flow Rate @ 180 ft of Head (Maximum), Flow Rate @ 90 ft of Head (Maximum), Flow Rate @ 280 ft of Head (Maximum), Flow Rate @ 40 ft of Head (Maximum), Flow Rate @ 30 ft of Head (Maximum), Flow Rate @ 50 ft of Head (Maximum)Not Applicable
Solid Diameter (Maximum)0.31 in
Wetted Material316 Stainless Steel, Bronze, Buna-N, Carbon, Ceramic
Nominal Voltage, Nameplate Voltage230V AC
Compatible with Media TypeWater
Best Efficiency Head145 ft
Overall Height10.2 in
Compatible Discharge Pipe Size1 1/2 in
Flow Rate @ 120 ft of Head (Maximum)165 gpm
Overall Length29.1 in
Pumping ApplicationBooster Service, Irrigation, Liquid Transfer, Spraying Systems, Water Circulation
Mounting OrientationHorizontal
Series3656

Distributor offers

SellerSKUMOQIn stockMultiplePrices
ZoroG0920491111 @ $5452.80
Grainger3CCV4111 @ $4311.85
Raptor SuppliesAC8LTE111 @ $6928.08
sustainablesupply.comC17214661-211 @ $4408.29
pumpproducts.com5BF1L4G01((Usually Ships 3-5 Days))11 @ $5252.80
